Product Overview

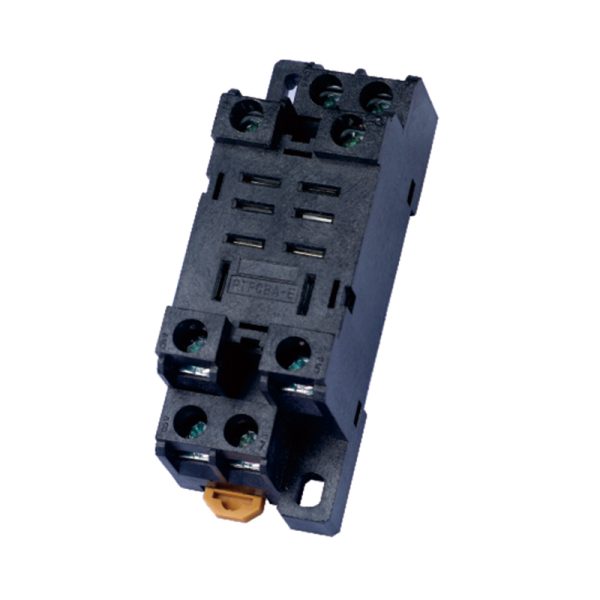

PTF Series Sockets-PTF A-E is a socket documented with a rated load of Current/Voltage.
Key Features
● Rated load: Current/Voltage.
Technical Specifications
| Specifications | |||
| Rated Load | Current/Voltage | A/VAC | 7/300 |
| Dielectric Strength | Coil & Contacts | V/S | 2000 |
| Between contacts | V/S | 2000 | |
| Wire Size | AWG/mm² | 20-16/0.5-1.5 | |
| Tightening Torque | Nm | 0.7 | |
| Terminal Ingress Protection | IP20 | ||
Matched Accessories
| Socket | Clip | Module | DIN Rail |
| PTF08A | K-35S | / |  |
| PTF11A | |||
| PTF14A |
Technical Data and Drawings

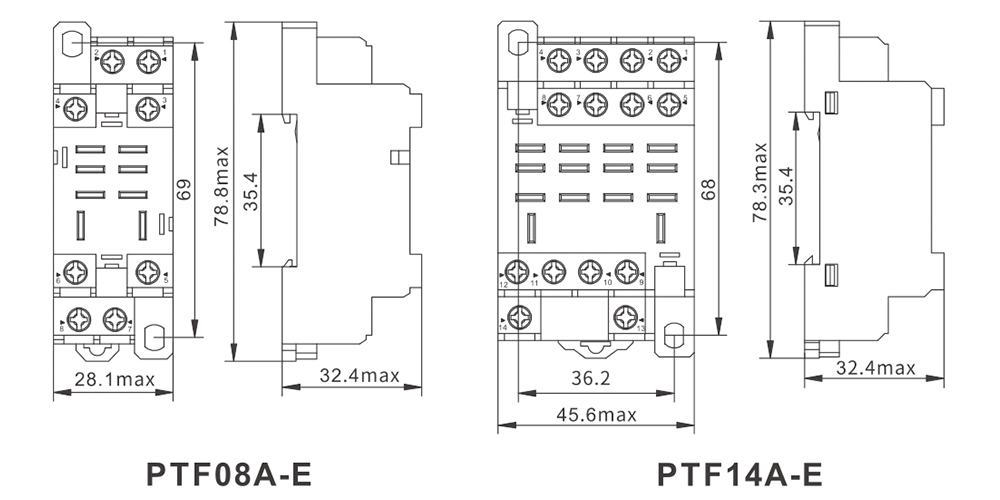

Dimensions (mm)

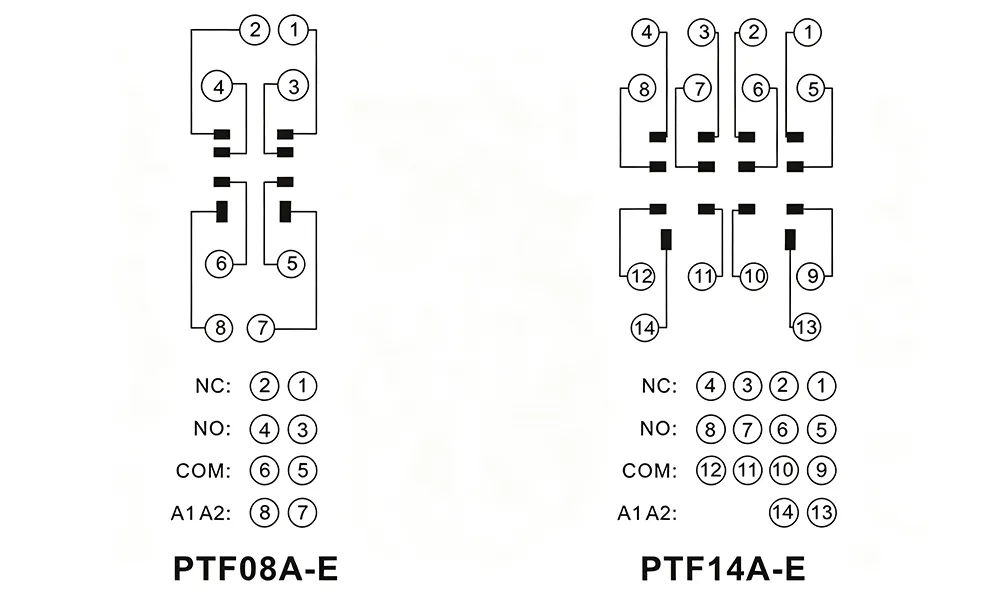

Wiring Diagram
Frequently Asked Questions
What is the rated load?
The documented rated load is Current/Voltage.
What dielectric or withstand voltage is specified?
The specified value is Coil & Contacts.
