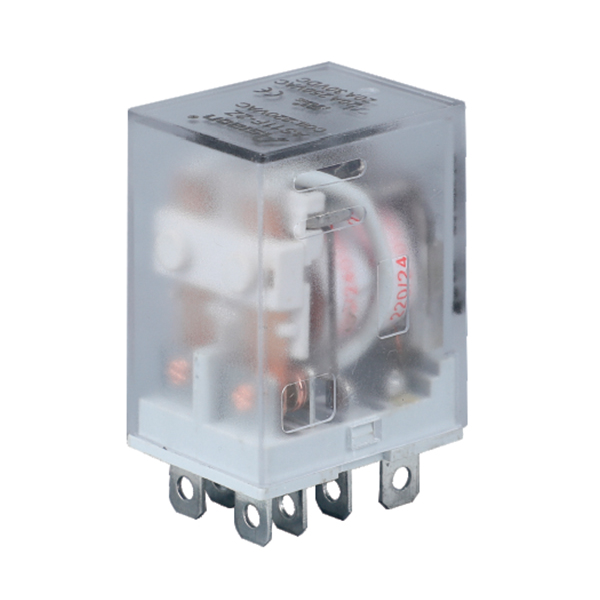

Product Overview
AS11FW Industrial Relay is a relay documented with a 2Z contact form, a rated load of 20A 250VAC/30VDC, AgSnO₂ AgNi contact material.
Key Features
● Small size
● High rated load 2Z 20A
● Contact form: 2Z.
● Rated load: 20A 250VAC/30VDC.
● Contact material: AgSnO₂ AgNi.
● Terminal or connection specification: Plug in/PCB.
● Operating power: 1.2W/1.6VA.
Technical Specifications
| Specifications | ||
| Contact | Contact Form | 2Z |
| Rated Load | 20A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ AgNi | |
| Characteristics | Insulation Resistance | ≥500MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between poles≥1500VAC/1min | ||
| Between contact and coil ≥1500VAC/1min | ||
| Operate/Release Time | ≤25ms/25ms | |
| Terminal Type | Plug in/PCB | |
| Coil | Operating Power DC/AC | 1.2W/1.6VA |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropout Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 30 |
| 12 | 9.6 | 1.2 | 120 |
| 24 | 19.2 | 2.4 | 480 |
| 48 | 38.4 | 4.8 | 1920 |
| 110 | 88 | 11 | 10080 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropout Voltage (VAC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 3.6 | 31.5 |
| 24 | 19.2 | 7.2 | 126 |
| 48 | 38.4 | 14.4 | 504 |
| 110 | 88 | 33 | 2650 |
| 220 | 176 | 66 | 10600 |
| 240 | 176 | 72 | 12600 |
Technical Data and Drawings

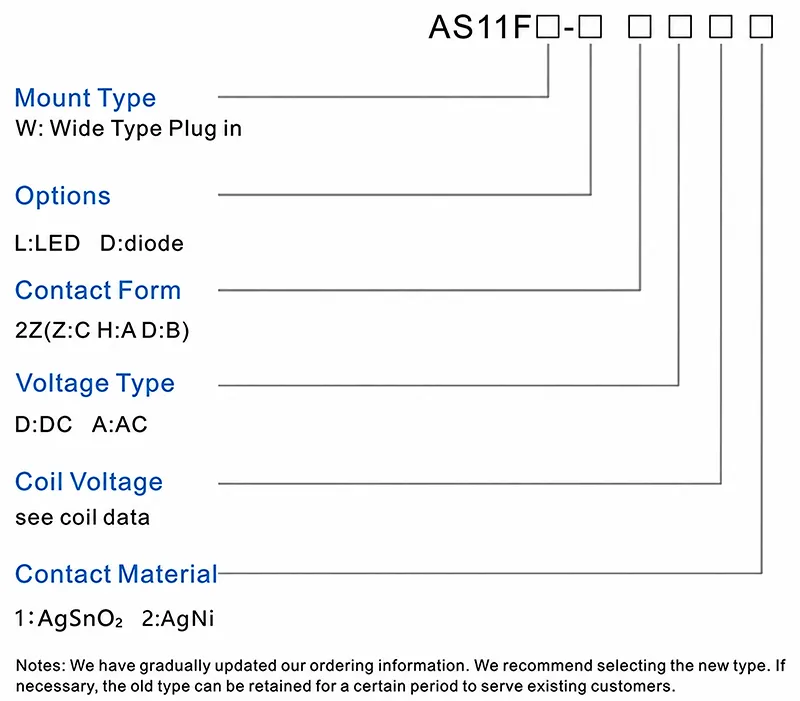

Ordering Information

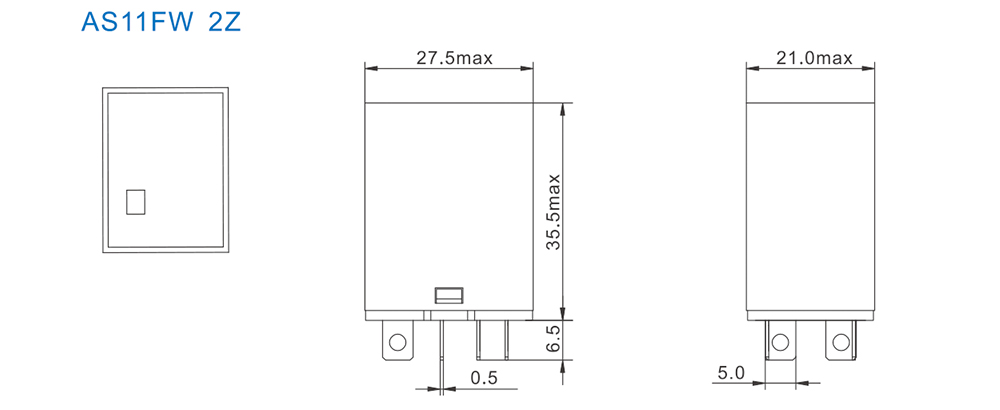

Dimensions (mm)

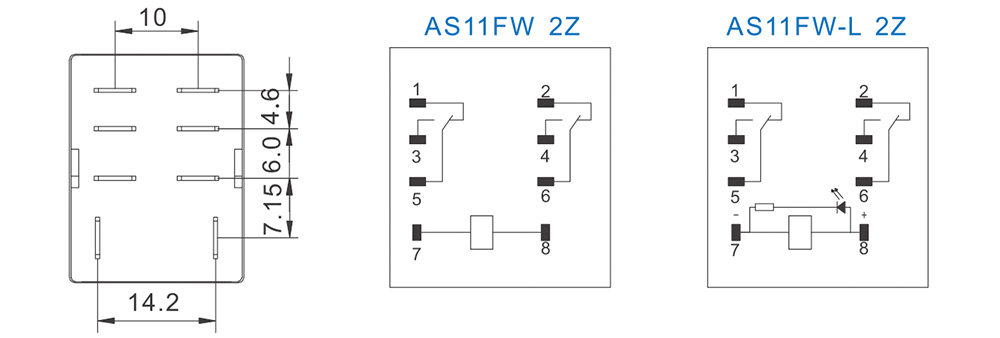

Wiring Diagram
Frequently Asked Questions
What is the rated load?
The documented rated load is 20A 250VAC/30VDC.
What contact material is specified?
The specified contact material is AgSnO₂ AgNi.
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 1.2W/1.6VA.
