Product Overview

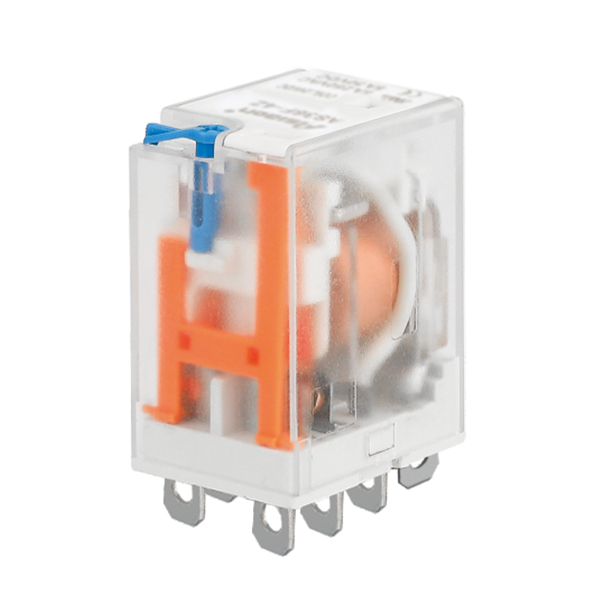

AS36FW Industrial Relay is a relay documented with a 1Z contact form, a rated load of 15A 250VAC /30VDC, AgSnO₂ AgNi contact material.
Key Features
● With LED indicator
● With lockable test button and inspection window
● Rated Load 1Z 15A; 2Z 10A
Technical Specifications
Product Parameters
| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load | 15A 250VAC /30VDC | 10A 250VAC /30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ AgNi | ||
| Characteristics | Insulation Resistance | ≥500MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil ≥1500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Plug in/PCB | ||
| Coil | Operating Power DC/AC | 0.9W/1.2VA | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropout Voltage (VDC) | Coil Resistance (Ω±10%) |
| 5 | 4 | 0.5 | 28 |
| 6 | 4.8 | 0.6 | 40 |
| 12 | 9.6 | 1.2 | 160 |
| 24 | 19.2 | 2.4 | 650 |
| 48 | 38.4 | 4.8 | 2560 |
| 110 | 88 | 11 | 11000 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropout Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 10.5 |
| 12 | 9.6 | 3.6 | 46.5 |
| 24 | 19.2 | 7.2 | 192 |
| 48 | 38.4 | 14.4 | 783 |
| 110/120 | 88 | 33 | 4000 |
| 220/240 | 176 | 66 | 15000 |
Technical Data and Drawings

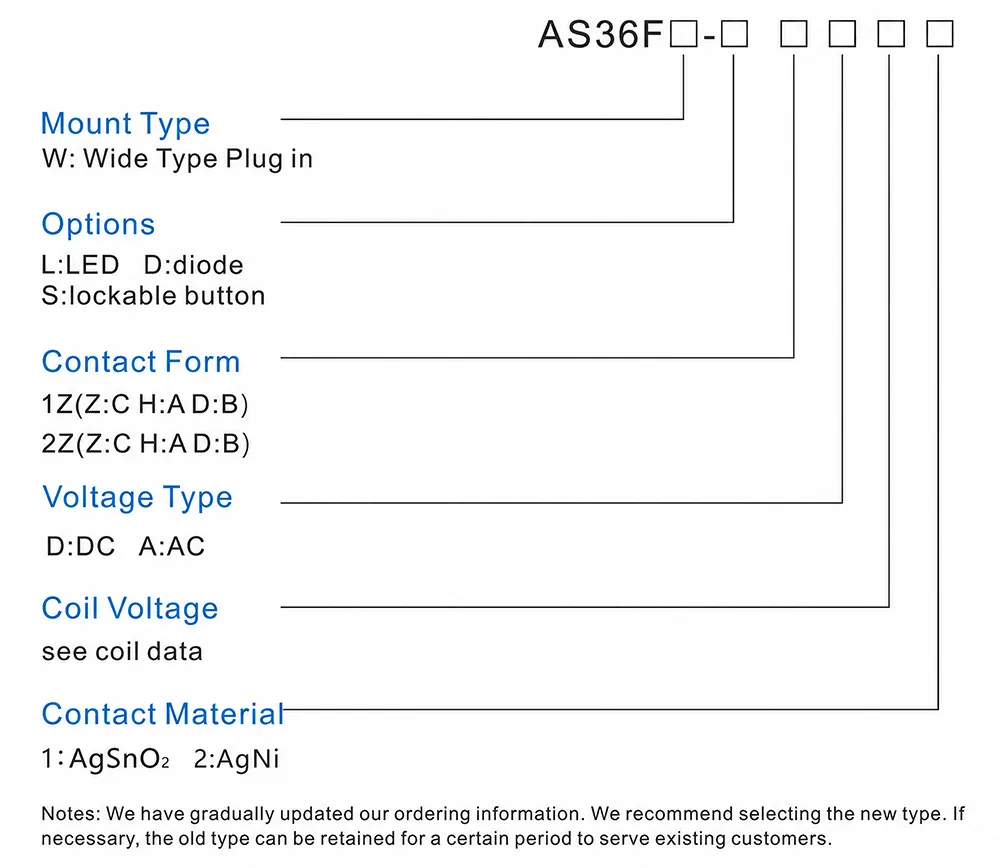

Ordering Information

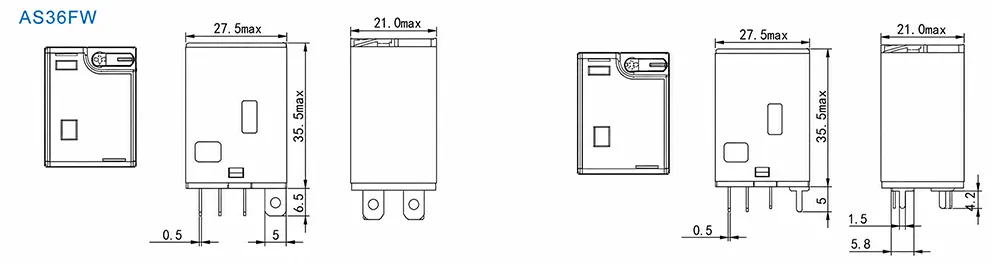

Dimensions (mm)

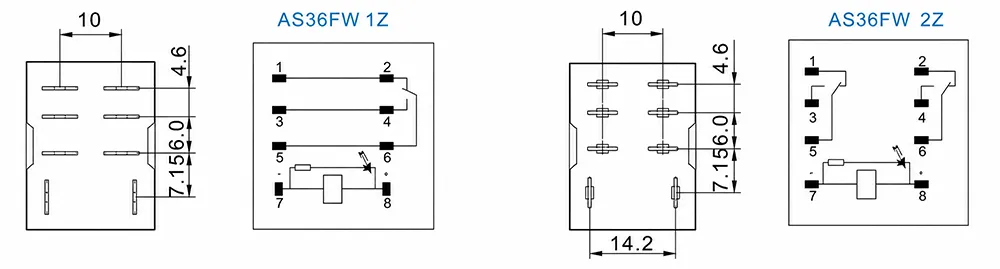

Wiring Diagram
Frequently Asked Questions
What is the rated load?
The documented rated load is 15A 250VAC /30VDC.
What contact material is specified?
The specified contact material is AgSnO₂ AgNi.
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 0.9W/1.2VA.
