PDP□□

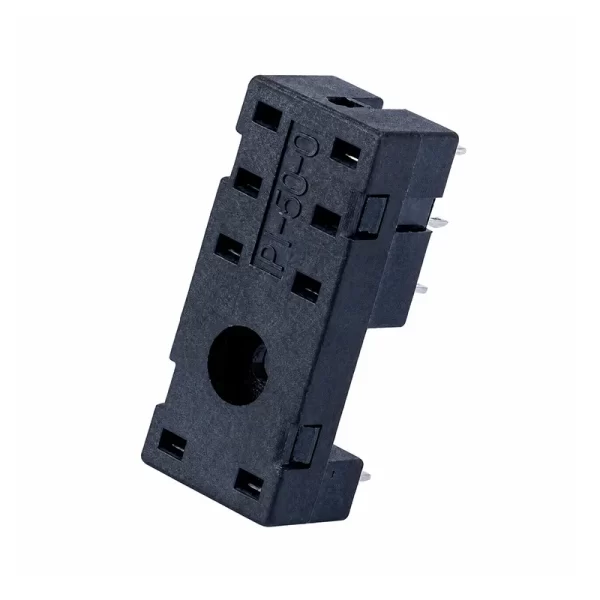

PDP Series Sockets-PDP is a relay socket series with PDP05 and PDP08 connection diagrams, a rated load of 10 A / 300 VAC, and dielectric strength of 4000 V between coil and contacts and 2500 V between contacts.

Description
Reviews (0)

Product Overview

PDP Series Sockets-PDP is a relay socket series with PDP05 and PDP08 connection diagrams. The source specifications list a rated load of 10 A / 300 VAC and dielectric strength of 4000 V between coil and contacts and 2500 V between contacts.

Key Specifications

Specifications
Rated Load	Current/Voltage	A/VAC	10/300
Dielectric Strength	Coil&Contacts	V/S	4000
	Between contacts	V/S	2500
Wire Size		AWG/mm2
Tightening Torque		Nm

Matched Accessories

Socket	Relay Type	Clip	Module	Din Rail
PDP□□	AS14FC 2Z 5A	K-25P	/	/
	AS115F 2Z	K-15P
	AS115F 1Z 16A

Technical Data and Drawings

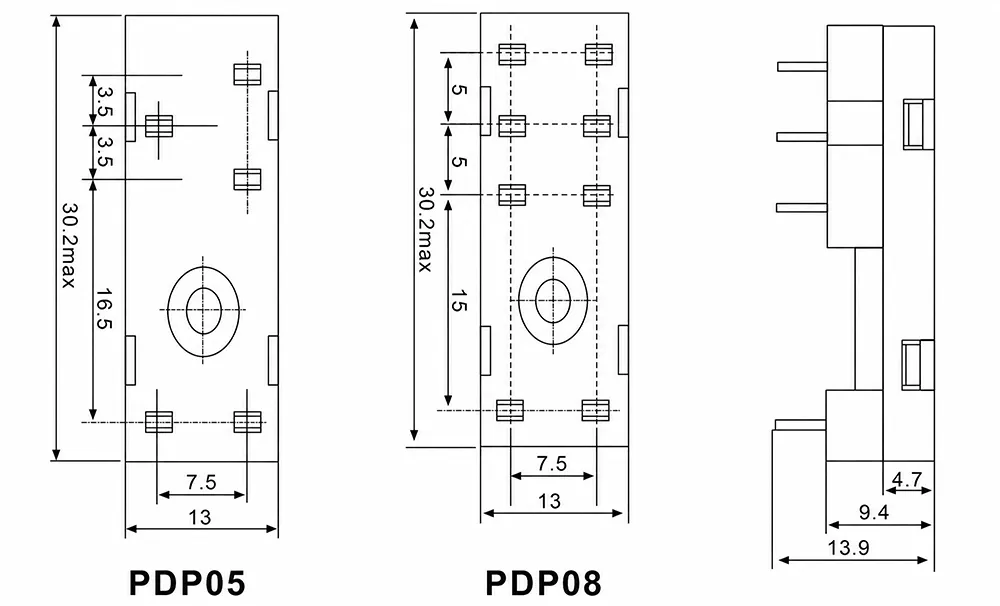

Dimensions(mm)

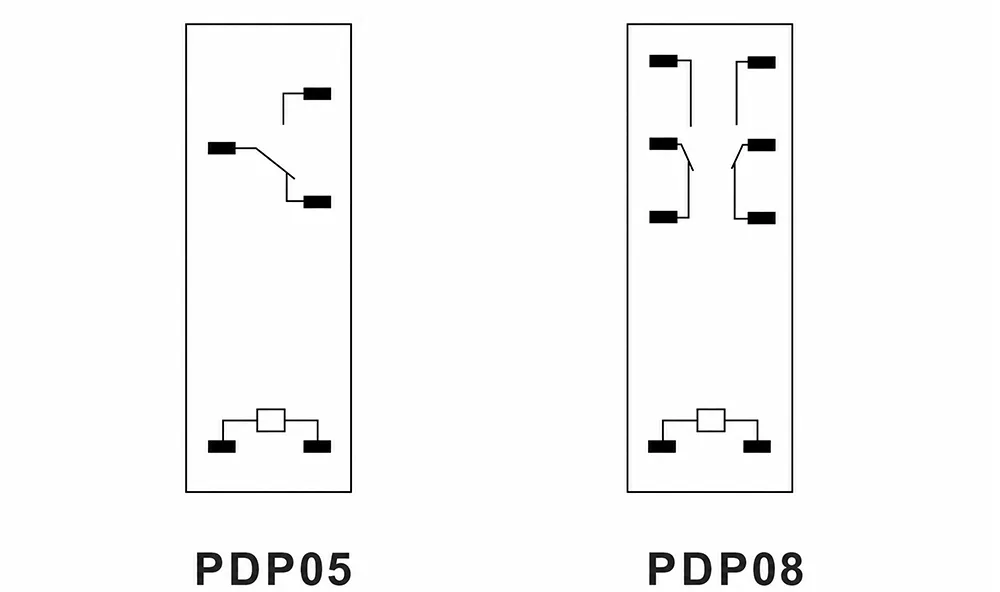

Connection Diagrams

The supplied connection drawing includes PDP05 and PDP08 diagrams. Use the matching diagram when selecting the socket configuration for the relay type.
