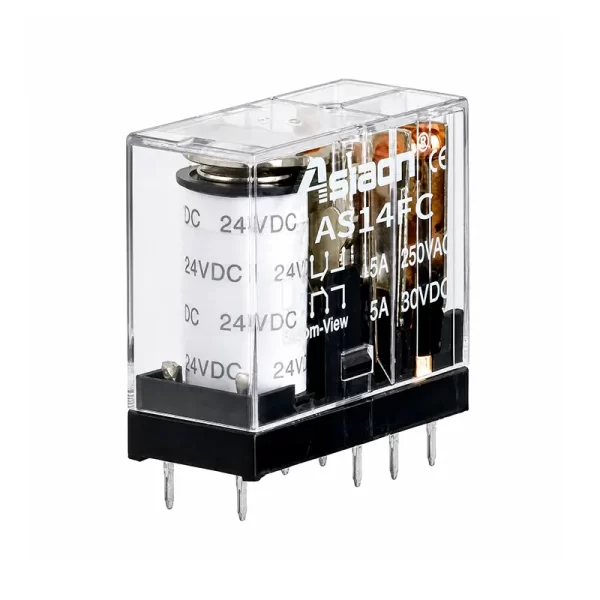

Product Overview
AS14FC PCB Relay is a relay documented with a 1Z contact form, AgSnO₂ contact material.
Key Features
● Low coil operating power 0.55W/0.8VA
● Creepage distance:8mm
● 4kV dielectric strength (between coil and contacts)
● Contact form: 1Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: PCB.
● Operating power: 0.55W/0.8VA.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) | 10A 250VAC/30VDC16A 250VAC/30VDC | 5A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥5000VAC/1min | |||
| Operate/Release Time | ≤15ms/5ms | ||
| Terminal Type | PCB | ||
| Coil | Operating Power DC/AC | 0.55W/0.8VA | |
DC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 16 |
| 12 | 9.6 | 3.6 | 63 |
| 24 | 19.2 | 4.2 | 240 |
| 48 | 38.4 | 14.4 | 1085 |
| 110 | 88 | 33 | 5500 |
| 220/240 | 184 | 69 | 24000 |
Technical Data and Drawings

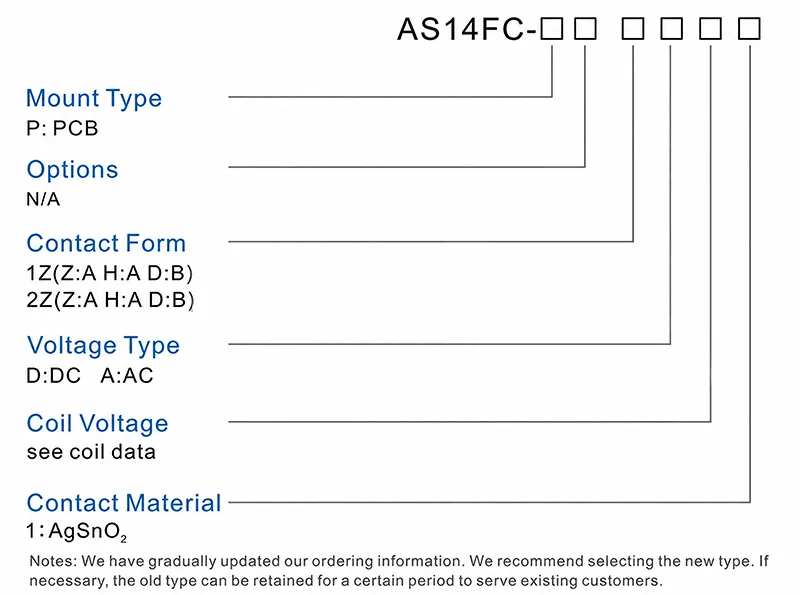

Ordering Information

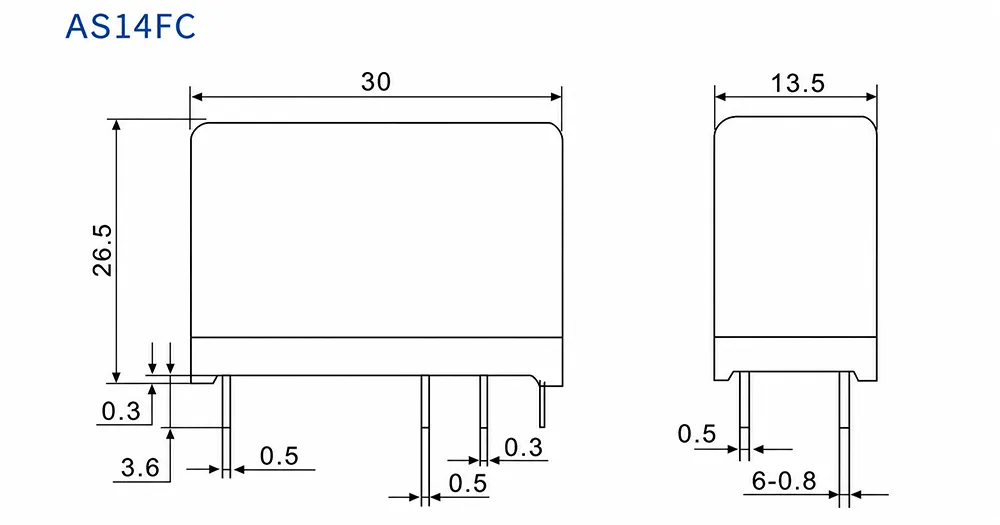

Dimensions (mm)

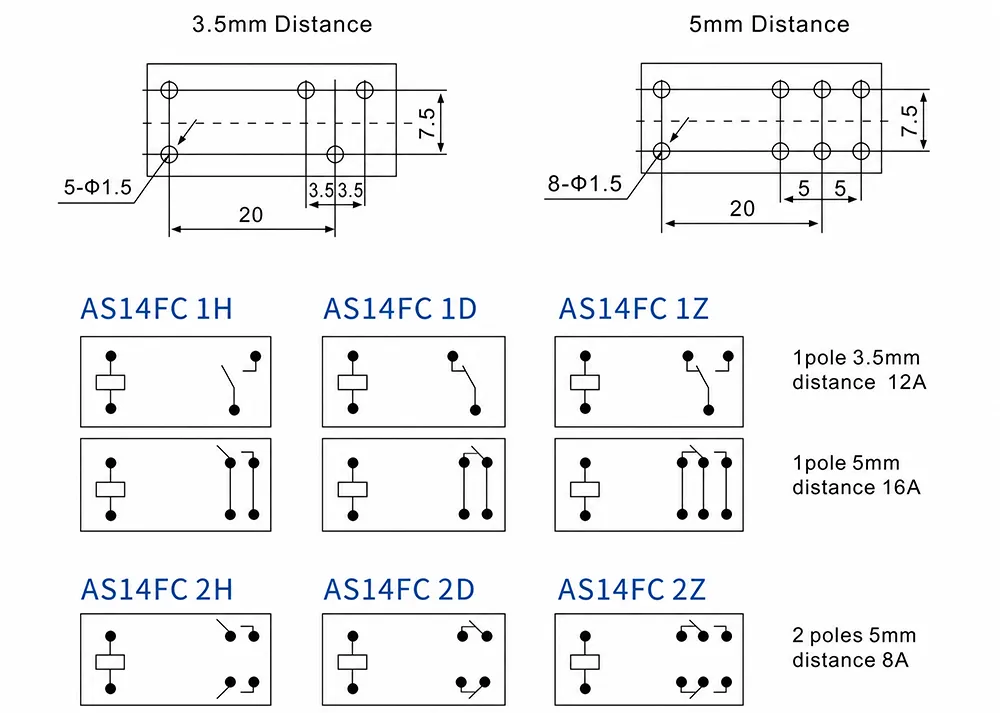

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What dielectric or withstand voltage is specified?
The specified value is Between open contacts≥1000VAC/1min.
What operate and release time is listed?
The listed operate/release time is ≤15ms/5ms.
