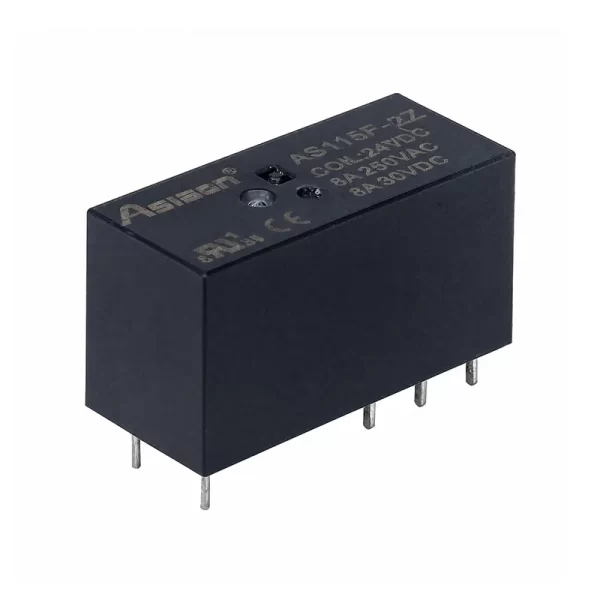

Product Overview
AS115F PCB Relay is a relay documented with a 1Z contact form, AgSnO₂ contact material.
Key Features
● Rated load16A
● Low height 16mm
● Creepage distance:10mm
● 5kV dielectric strength (between coil and contacts)
● Contact form: 1Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: PCB.
● Operating power: 0.4W.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) | 12A 250VAC/30VDC 16A 250VAC/30VDC |
8A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥5000VAC/1min | |||
| Operate/Release Time | ≤15ms/5ms | ||
| Terminal Type | PCB | ||
| Coil | Operating Power DC/AC | 0.4W | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 5 | 3.75 | 0.5 | 62.2 |
| 6 | 4.5 | 0.6 | 90 |
| 12 | 9 | 1.2 | 360 |
| 24 | 18 | 2.4 | 1440 |
| 48 | 36.4 | 4.8 | 5760 |
| 60 | 48 | 6 | 9000 |
| 110 | 82.5 | 11 | 30250 |
Technical Data and Drawings

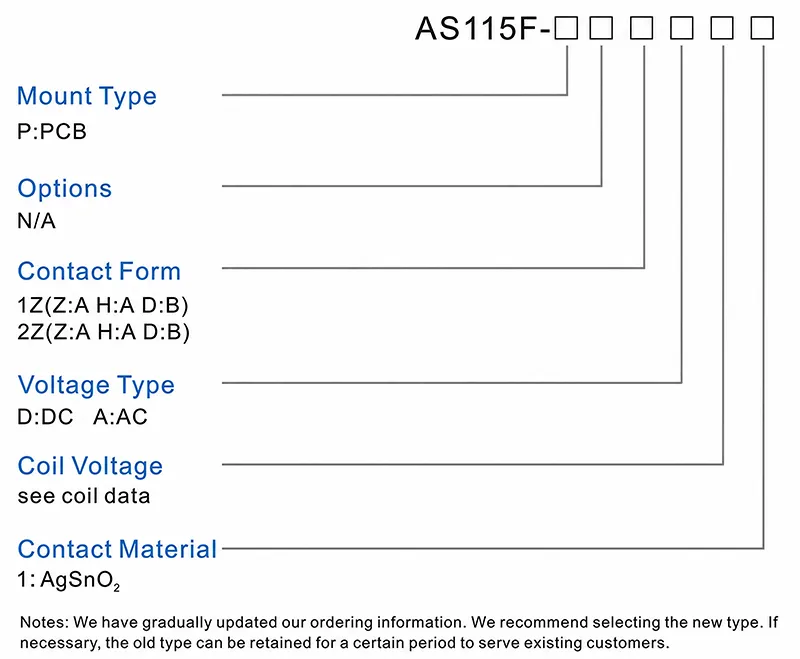

Ordering Information

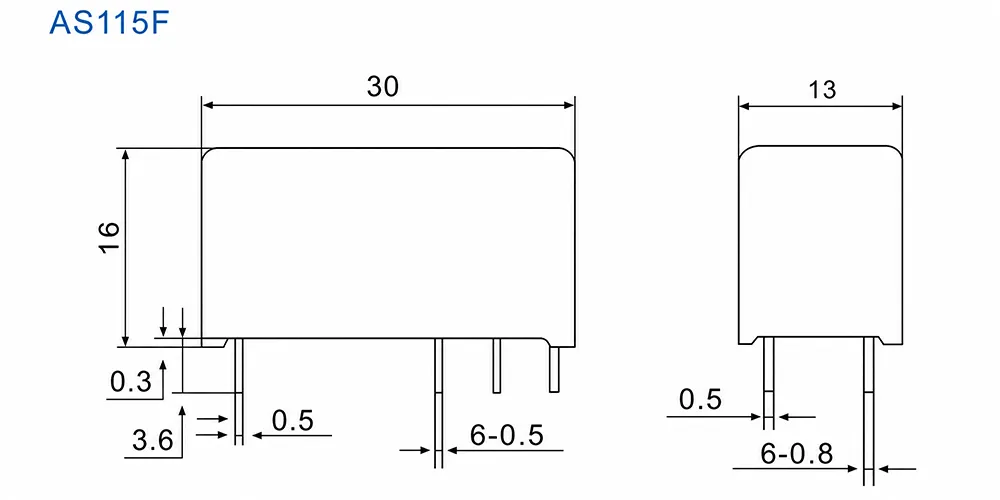

Dimensions (mm)

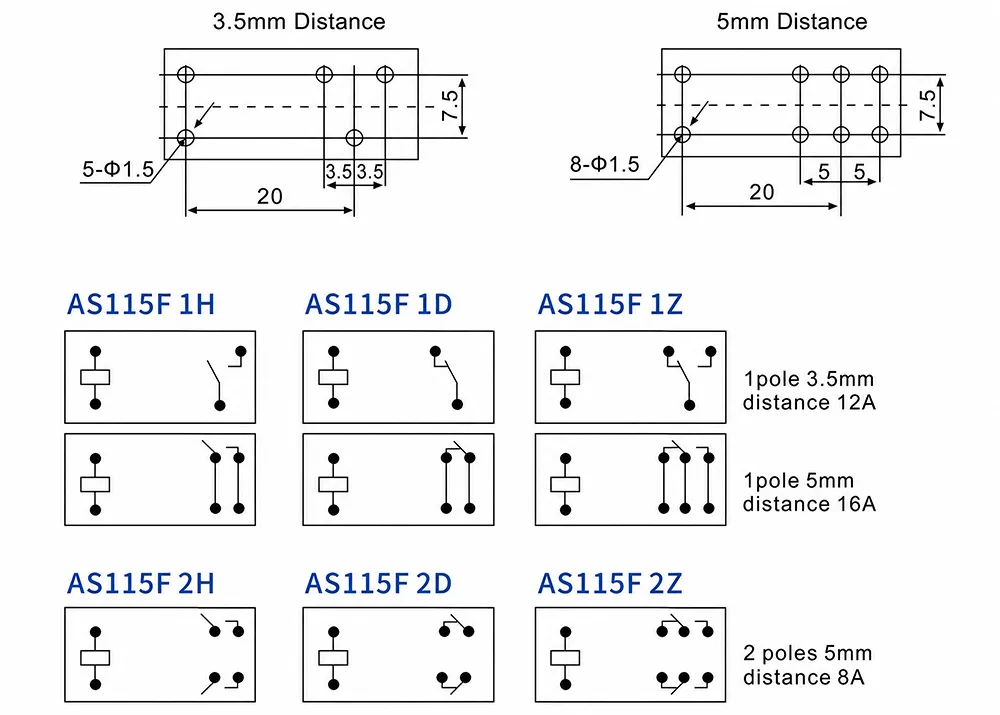

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤15ms/5ms.
What operating power is listed?
The listed operating power is 0.4W.
