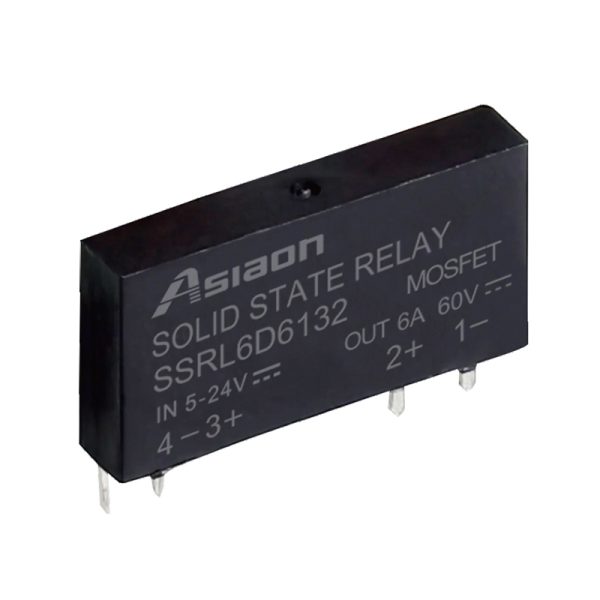

Key Features
● The product is small in size
● Resistant to vibration
Technical Specifications
| Specifications | ||||
| Performance | AC Output | DC Output | Low-resistance DC output | AC/DC dual-output |
| Output type | AC Output | DC Output | Low-resistance DC output | AC/DC dual-output |
| Maximum allowable load current | 2A | 2A | 6A | 2A |
| Load voltage | 75~264VAC (45~65Hz) | 5~60VDC | 5~60VDC | 5~60VAC/DC |
| Non-repetitive surge current | 30A | 16A | 80A | 80A |
| Peak withstand voltage | 600Vpeak | 60Vpeak | 60Vpeak | 60Vpeak |
| Conduction drop | Maximum 1.2V at 2A | Maximum 1.3V at 2A | Maximum 0.3V at 6A | Maximum 0.3V at 2A |
| Off-state leakage current | Maximum 3mA at 240VAC | Maximum 1mA at 60VDC | Maximum 1mA at 60VDC | Maximum 1mA at 60VDC |
| Minimum load current | 20mA | 0.02mA | 0.02mA | 0.02mA |
| Action/Reset time | Power supply 1/2 cycle +1ms or less | Below 1ms | Below 1ms | Below 1ms |
| Trigger type | Zero-crossing conduction Zero-crossing turn-off | — | ||
| Dielectric voltage | 2500VAC 50/60Hz 1min | |||
| Insulation resistance | ≥50M | |||
DC Coil Data
| Rated voltage VDC | Applicable voltage range VDC | Input impedance KΩ |
| 5 | 4~6 | 0.5 |
| 12 | 9.2~14.4 | 1.5 |
| 12~24 | 9.2~28.8 | 2.2 |
| 5~24 | 4~28.8 | |
| 60 | 60 |
Technical Data and Drawings

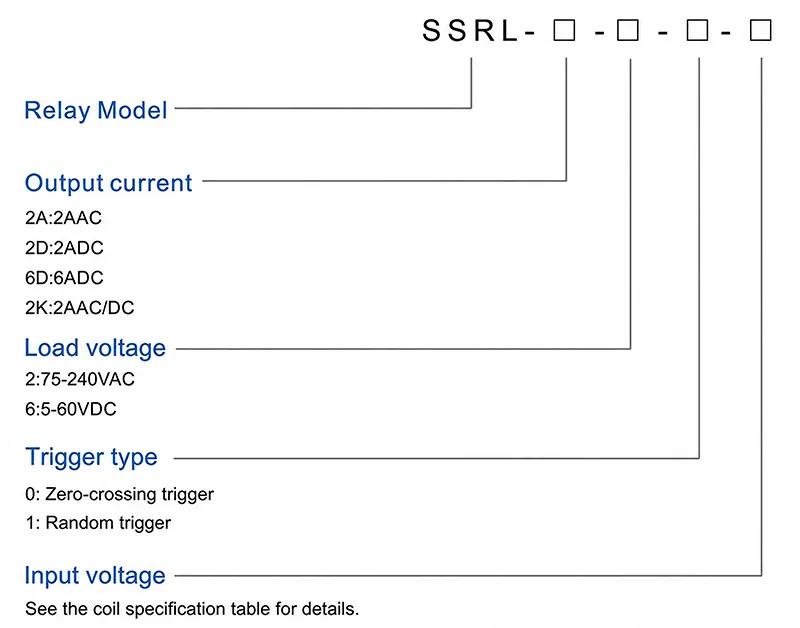

Ordering Information

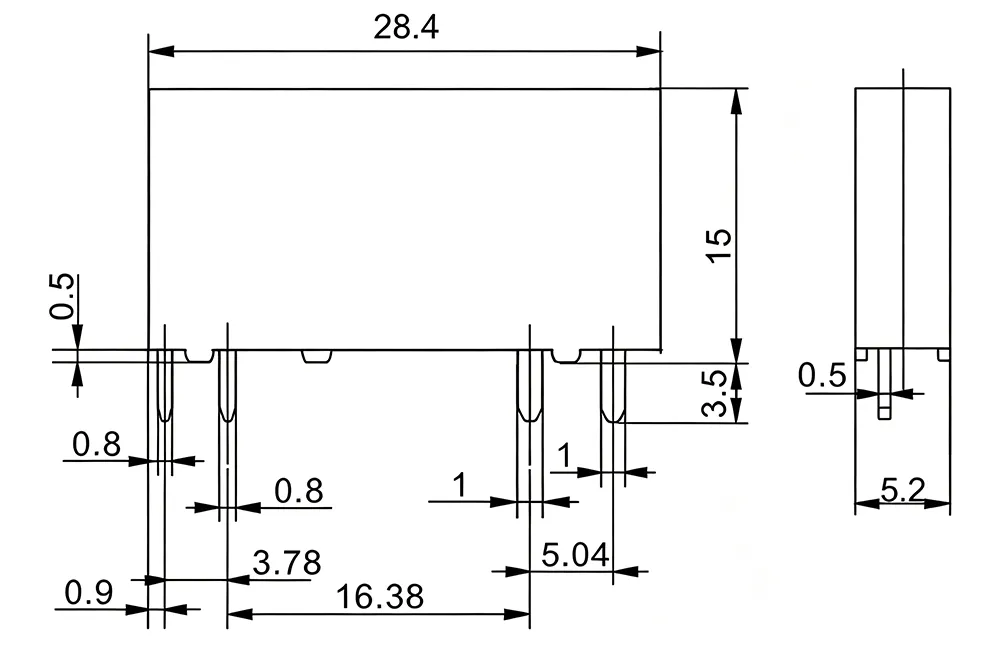

Dimensions (mm)
