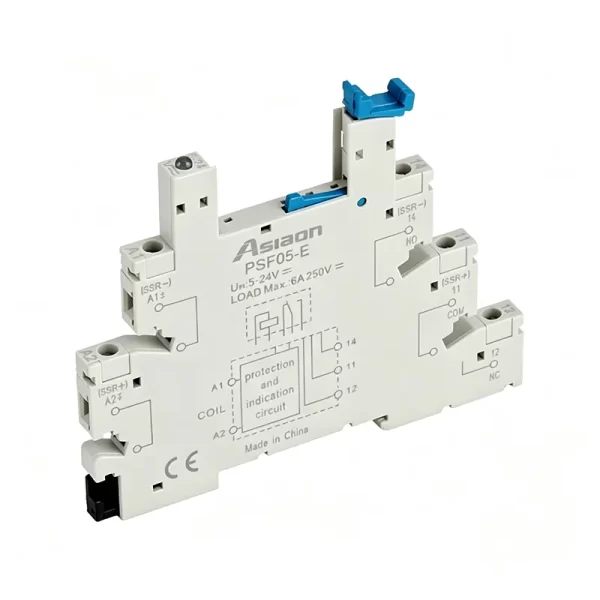

Product Overview
PSF05-E Series Socket is a 6A, 300VAC socket for interface solid-state relay connections. The terminal layout includes A1 and A2 coil terminals, 14 NO, 11 COM, and 12 NC, with a protection and indication circuit shown in the connection drawing.
Key Specifications
| Specifications | |||
| Load | Current / Voltage | A/VAC | 6/300 |
| Medium withstand voltage | Between the coil/contact | V/S | 4000 |
| Between the contacts | V/S | 2500 | |
| Insulation resistance | MΩ | 1000 | |
| External connection wire | AWG/mm² | 20-16/0.5-1.5 | |
| Screw torque | Nm | 0.5 | |
| External terminal protection degree | IP20 | ||
Technical Data and Drawings
Dimensions (mm)

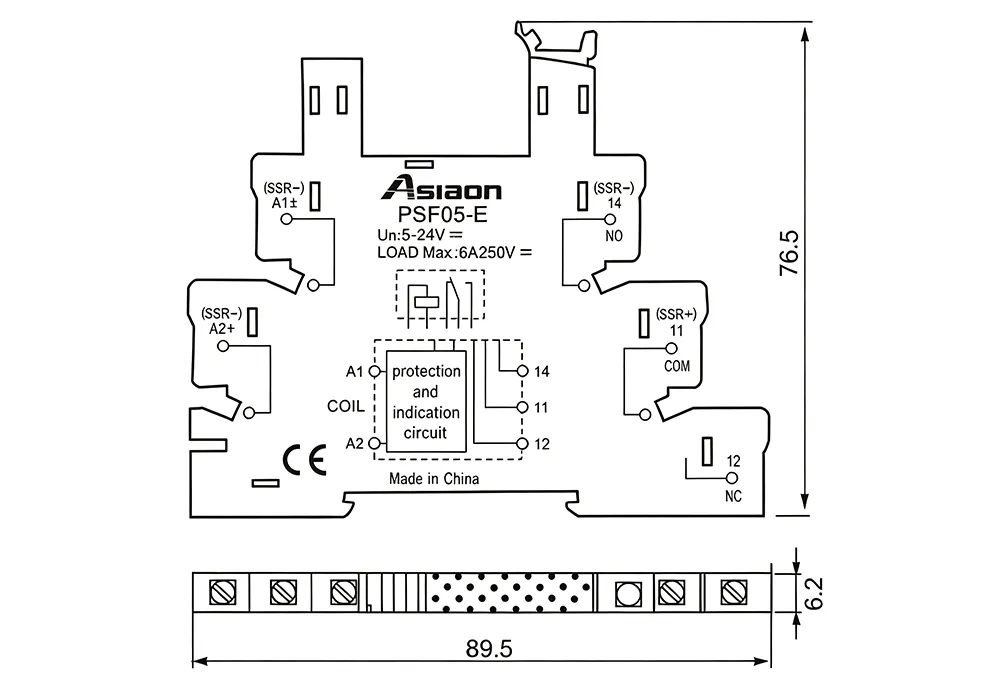

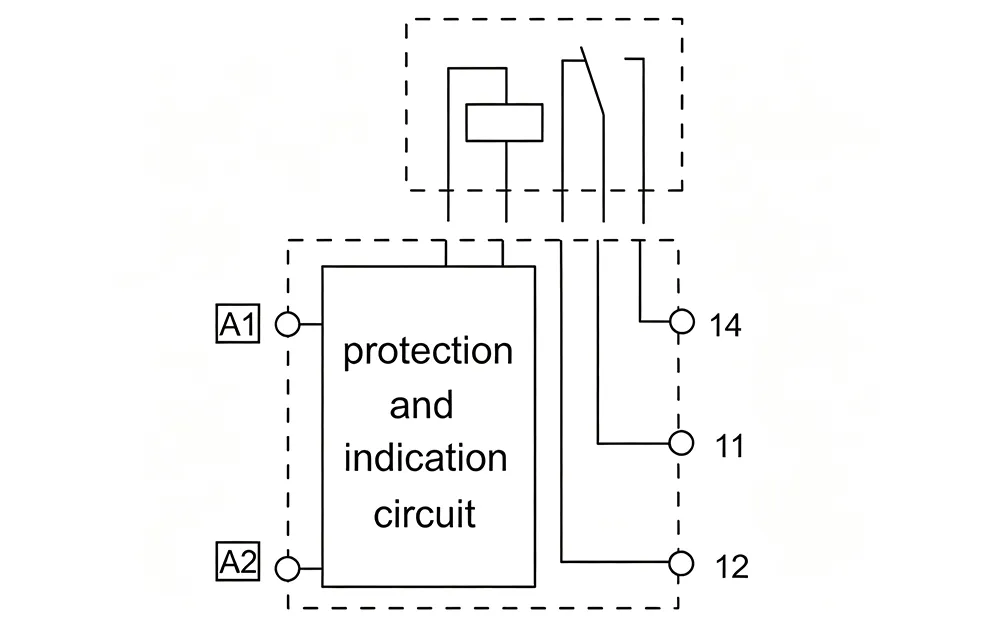

Connection diagram
Technical Questions
What is the load rating of the PSF05-E Series Socket?
The specified load rating is 6A at 300VAC.
What is the terminal protection degree?
The external terminals are rated IP20.
What terminal labels are used for the output contact?
The terminal configuration identifies 14 as NO, 11 as COM, and 12 as NC.
