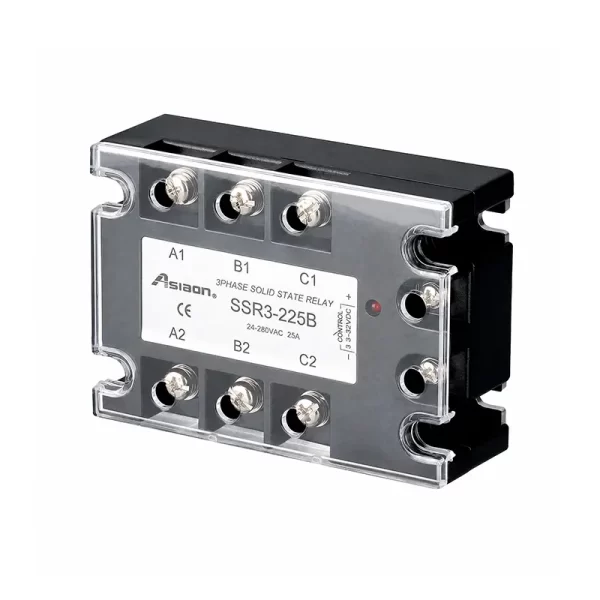

Product Overview
SSR3 Solid State Relay is a solid-state relay series with 24–280VAC, 24–380VAC, and 24–480VAC load-voltage versions. The series is available with 10A, 15A, 20A, 30A, or 40A load-current options.
Features
● The product is small in size.
● Waterproof
● Anti-vibration
Key Specifications
| Specifications | |
| Load voltage | 24-280VAC/24-380VAC/24-480VAC |
| Load current | 10,15,20,30,40A |
| Input voltage | A, B, C, D, E |
| Insulation resistance | ≥50M |
| Medium pressure resistance | ≥2500VAC |
| On-state voltage reduction | ≤1.6V |
| Leakage current upon power-off | ≤5mA |
| Reaction time | ≤10ms |
| Input voltage range | |
| SSR3-A | 80-250VAC |
| SSR3-B | 3-32VDC |
| SSR3-C | 3-14VDC |
| SSR3-D | 8-32VDC |
| SSR3-E | 4-32VDC/AC |
Technical Data and Drawings

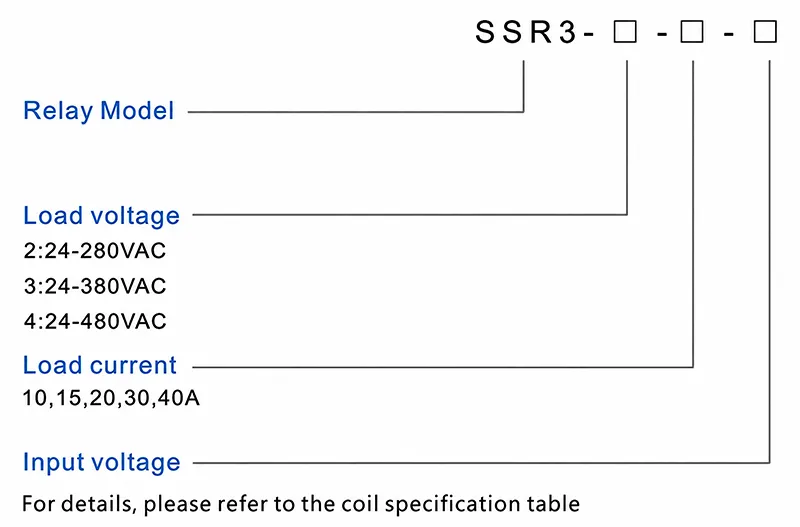

Ordering Information

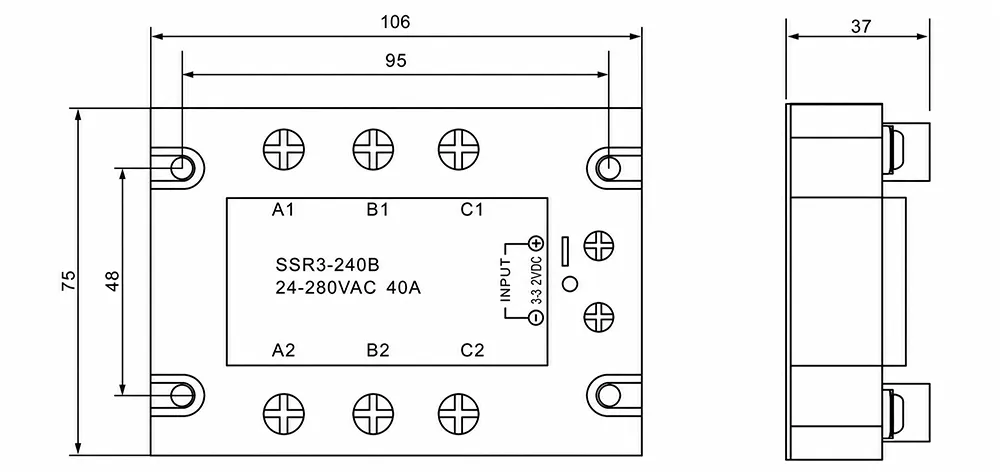

Dimensions (mm)

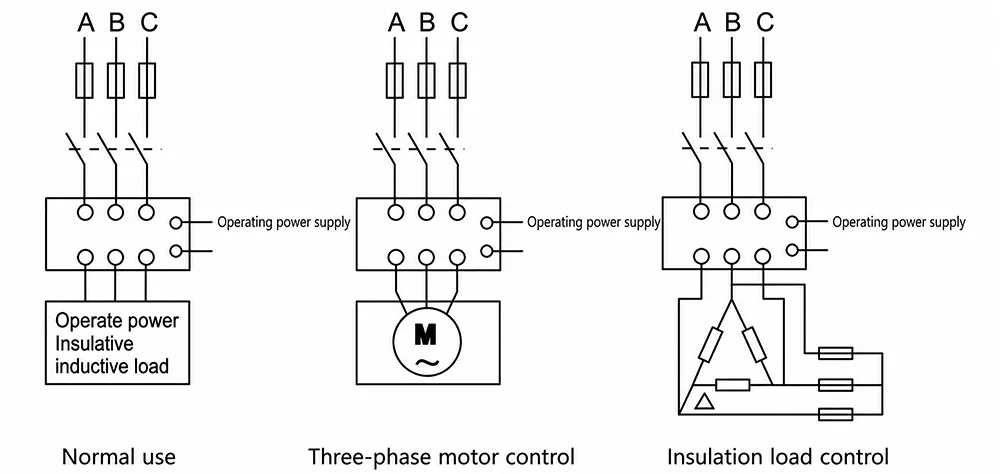

Installation dimensions
Technical Questions
Which load voltages are available?
The documented load-voltage options are 24–280VAC, 24–380VAC, and 24–480VAC.
What is the maximum specified reaction time?
The specified reaction time is 10ms or less.
What load-current ratings are available?
The listed load-current options are 10A, 15A, 20A, 30A, and 40A.
