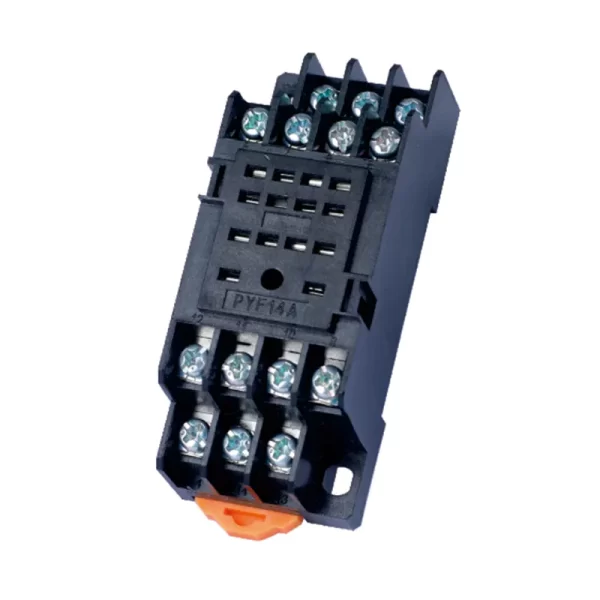

PYF Series Sockets-PYF-A
Product Parameters
| Specifications | |||
| Rated Load | Current/Voltage | A/VAC | 08:12/300; 11/14.7/300 |
| Dielectric Strength | Coil & Contacts | V/S | 2000 |
| Between Contacts | V/S | 2000 | |
| Wire Size | AWG/mm² | 20-16 / 0.5-1.5 | |
| Tightening Torque | Nm | 0.7 | |
Matched Accessories
| Socket | Clip | Module | DIN Rail |
| PYF08A | K-35S | / |  |
| PYF11A | |||
| PYF14A |

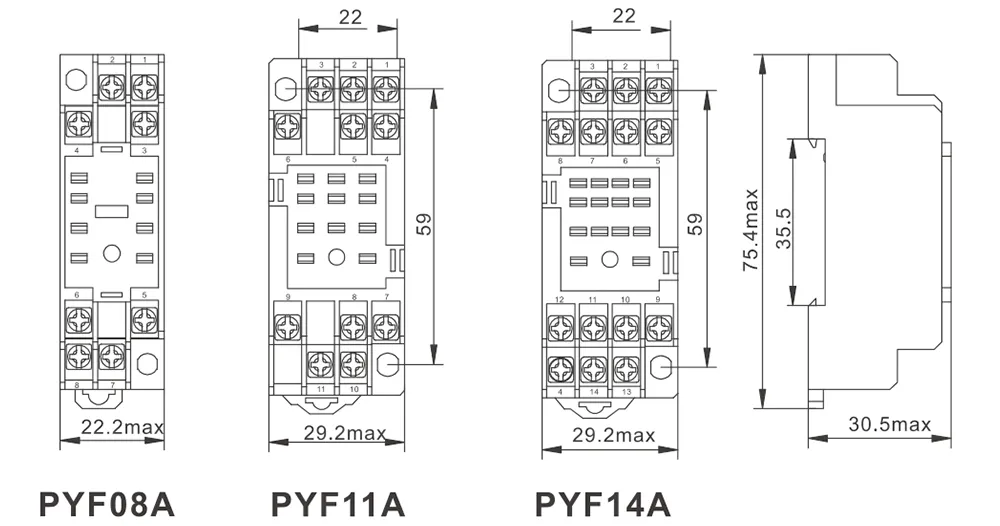

Dimensions (mm)

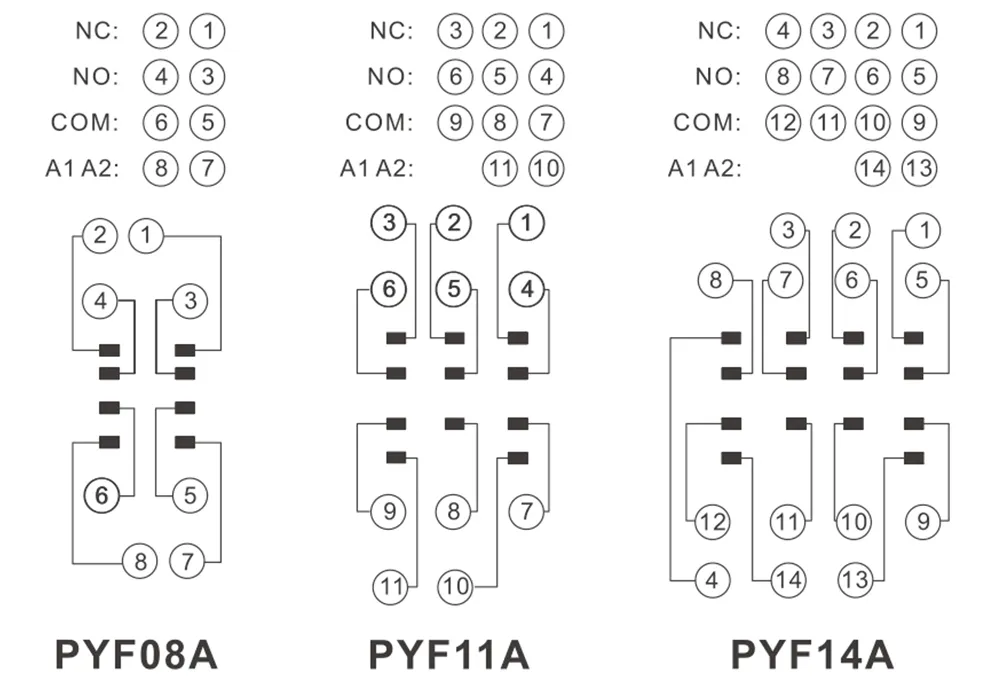

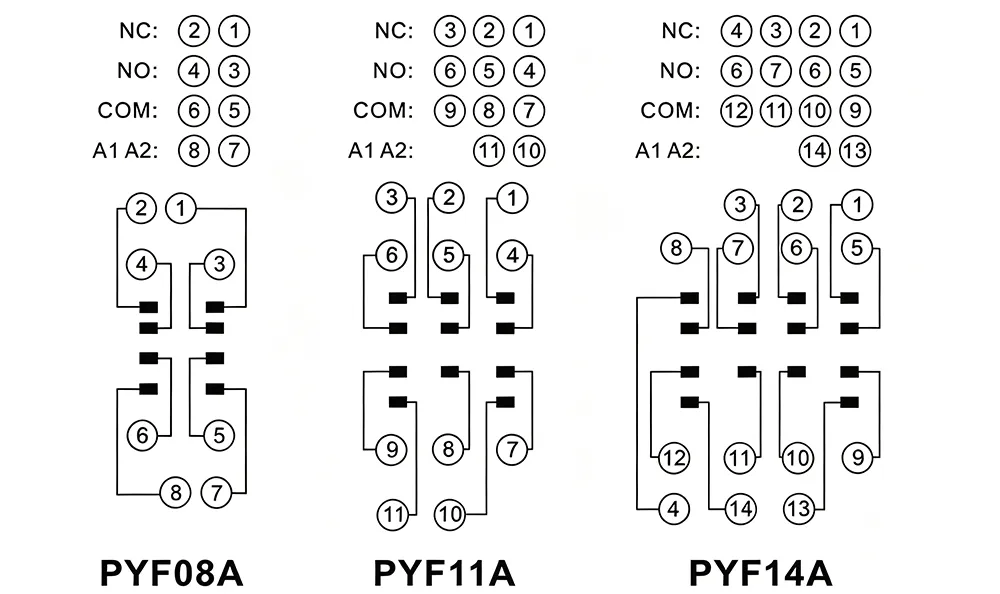

Connection Diagrams
