Product Overview

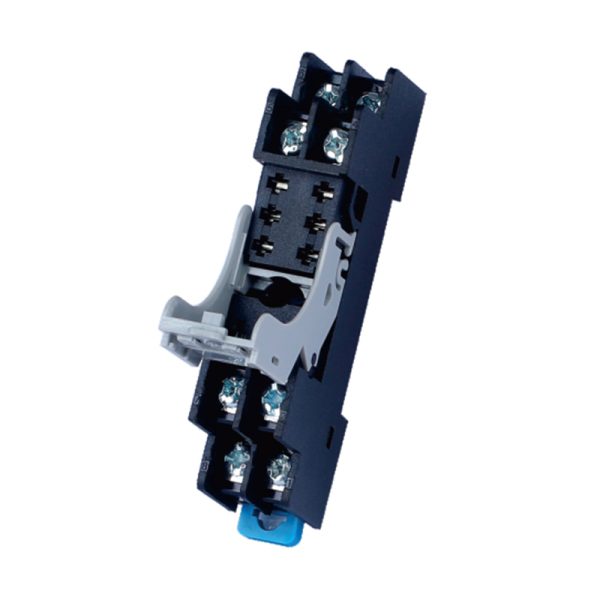

PRF Series Sockets-PRF-A is a socket documented with a rated load of Current/Voltage.
Key Features
● Rated load: Current/Voltage.
Technical Specifications
| Specifications | |||
| Rated Load | Current/Voltage | A/VAC | 05:16/300 08:10/300 |
| Dielectric Strength | Coil & Contacts | V/S | 4000 |
| Between contacts | V/S | 2500 | |
| Wire Size | AWG/mm2 | 20-14/0.5-2.5 | |
| Tightening Torque | Nm | 0.8 | |
Matched Accessories
| Socket | Clip | Module | DIN Rail |
| PRF05A | K-25S (Pre-configured) | / |  |
| PRF08A |
Technical Data and Drawings

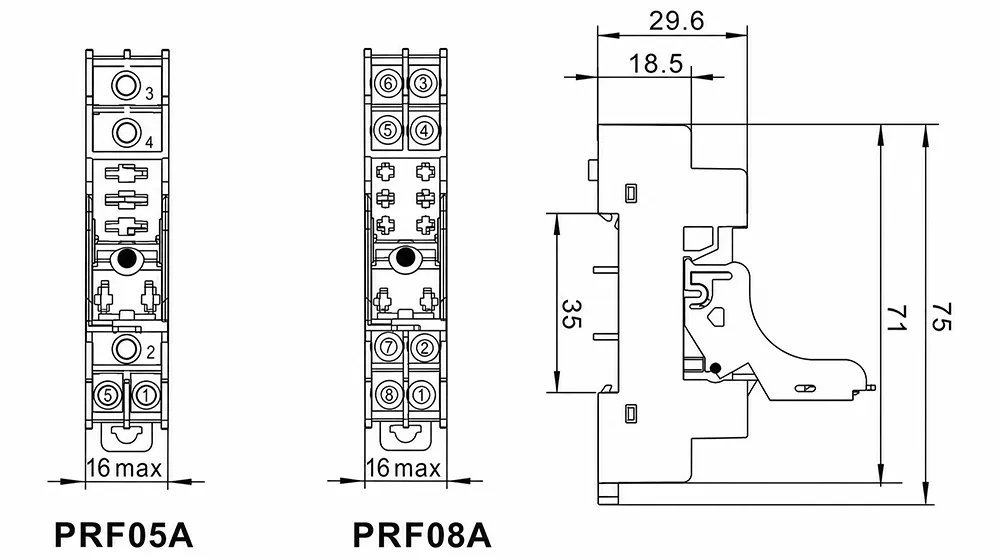

Dimensions (mm)

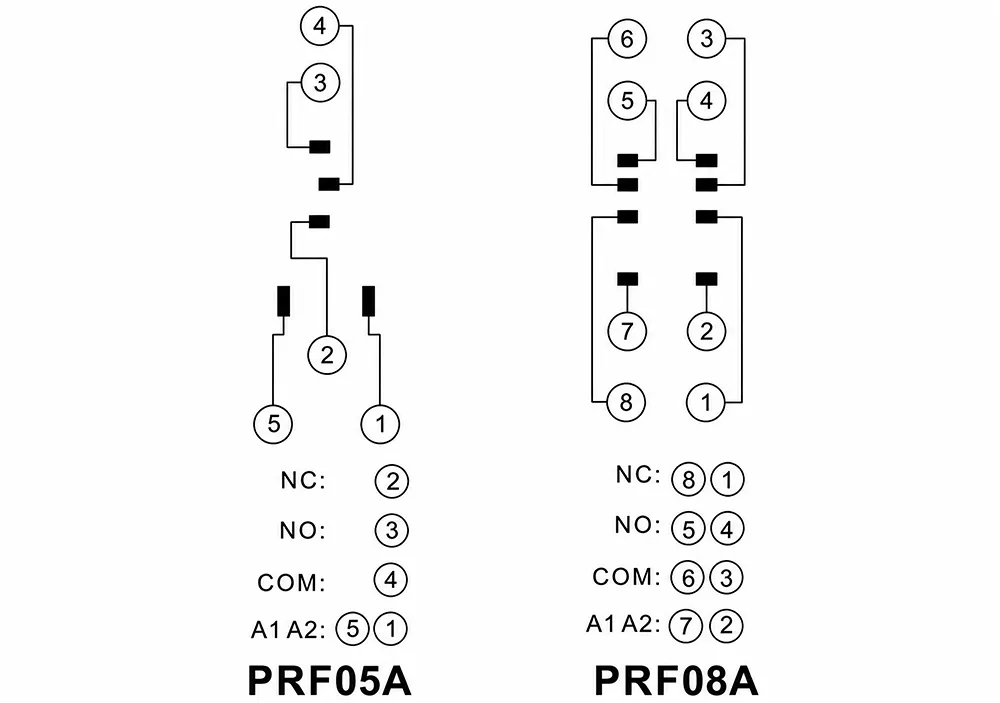

Wiring Diagram
Frequently Asked Questions
What is the rated load?
The documented rated load is Current/Voltage.
What dielectric or withstand voltage is specified?
The specified value is Coil & Contacts.
Related Product
| PRF05A | ||
 |
 |
 |
| PRF08A | ||
 |
 |
 |
