Product Overview

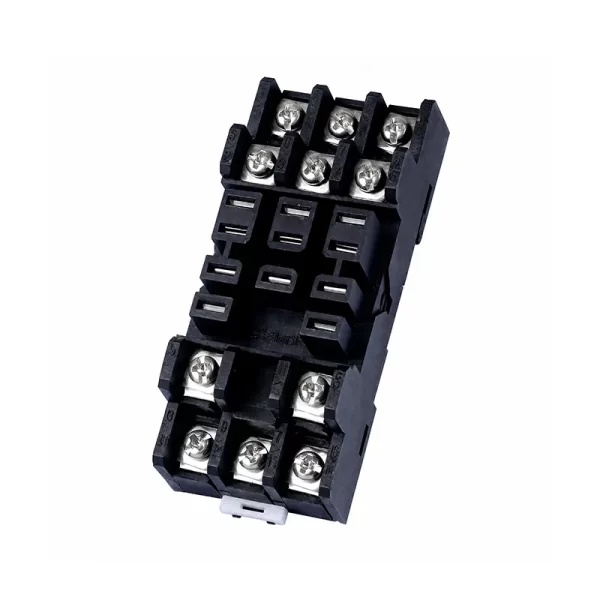

PEF Series Sockets-PEF-A is a socket documented with a rated load of Current/Voltage.
Key Features
● Rated load: Current/Voltage.
Technical Specifications
| Specifications | |||
| Rated Load | Current/Voltage | A/VAC | 16-25/300 |
| Dielectric Strength | Coil&Contacts | V/S | 2000 |
| Between Contacts | V/S | 2000 | |
| Wire Size | AWG/mm2 | 20-14/0.5-2.5 | |
| Tightening Torque | Nm | 1 | |
Matched Accessories
| Socket | Clip | Module | DIN Rail |
| PEF08A | K-53 | / |  |
| PEF11A |
Technical Data and Drawings

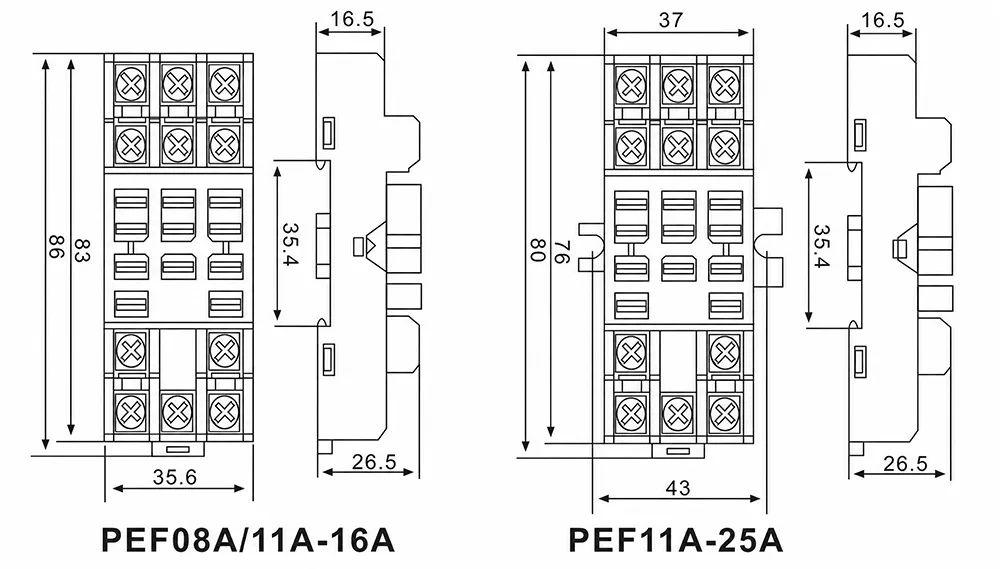

Dimensions (mm)

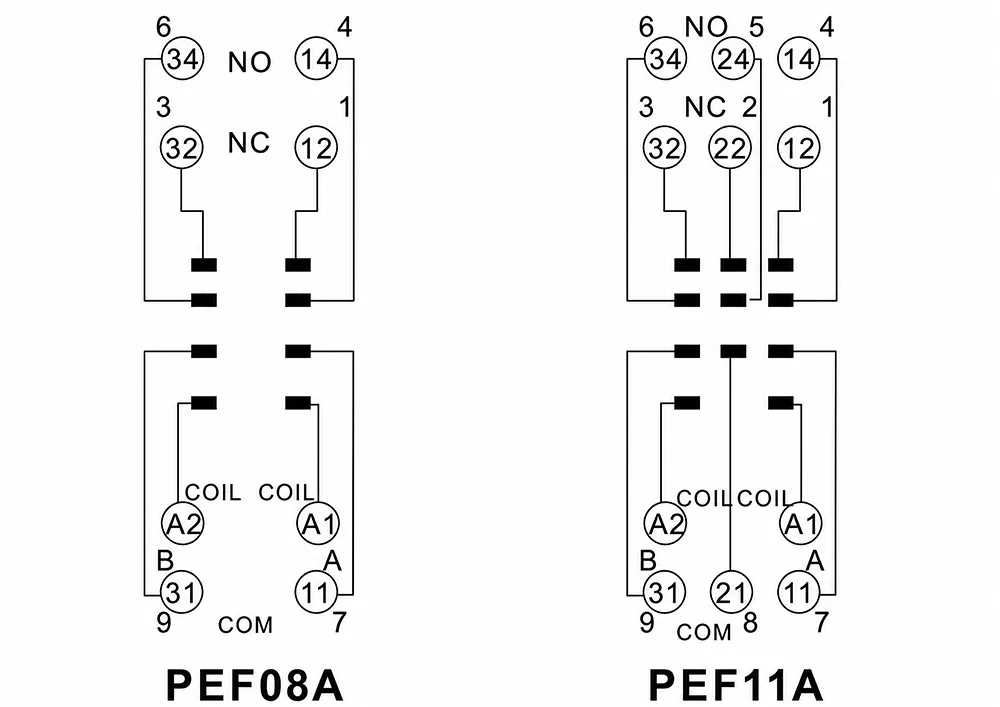

Wiring Diagram
Frequently Asked Questions
What is the rated load?
The documented rated load is Current/Voltage.
What dielectric or withstand voltage is specified?
The specified value is Coil/Contact spacing.
