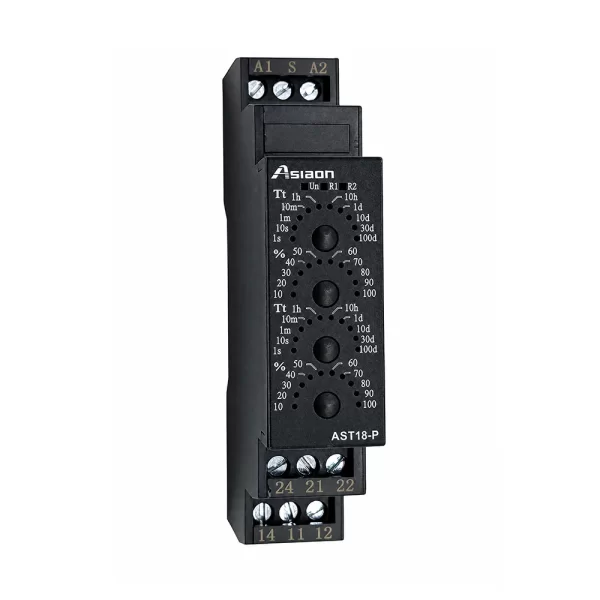

Features
● Different delay times and operating times can be set
● Time ranges from 0.1s-100days
● Wide power supply range from 12to 240 VAC/DC
● Easy to set up with wiring diagrams on the side of product
● Time accuracy reaches up to 0.5%
● Strong anti-interference capability
Technical Specifications
| Type of output |
| 1 |
1CO contact |
| 2 |
2CO contacts |
| Control signal |
| N |
NPN |
| P |
PNP |
|
AST18-P1 |
AST18-P2 |
| Input Terminal |
A1-A2 |
| Voltage range |
AC 230V / DC24V / AC/DC 12-240V |
| Power consumption |
AC 3.5VA / DC 2.0W |
| Voltage tolerance |
-15%~+10% |
| Supply indication |
Green LED |
| Relay indication |
Red LED |
| Time ranges |
0.1s-100days |
| Time setting |
Button |
| Time deviation |
0.1% |
| Repeat accuracy |
0.5% |
| Temperature coefficient |
0.05%/℃, at=20℃ (0.05%/℉, =68℉) |
| Output contact |
1*SPDT |
| Rated current |
1*16A |
| Mechanical life |
1*10⁷ |
| Electrical life |
1*10⁵ |
| Ambient Temperature |
-20 … +60℃ / -40 … +85 ℃ |
| Mounting |
DIN rail EN/IEC 60715 |
| IP Rating |
IP20 |
| Stripping length |
7mm (0.28in) |
| Installed altitude |
≤2200m |
| Pollution level |
2 |
| Max cable size |
AWG13-20 0.4N·m |
| Dimension |
90mm*18mm*64mm |
| Weight |
about 90g |
| Standards |
GB/T 14048.5, IEC60947-5-1, EN6812-1 |
*The above information is subject to change without further notice
Technical Data and Drawings

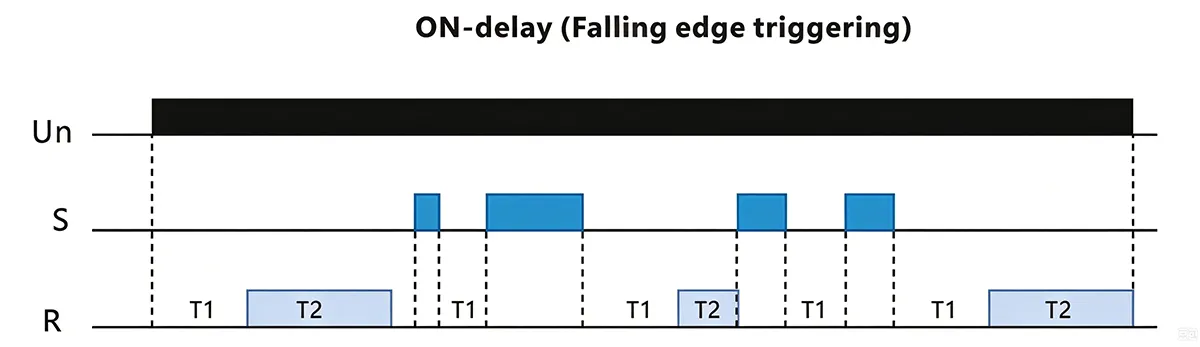

Timing Function

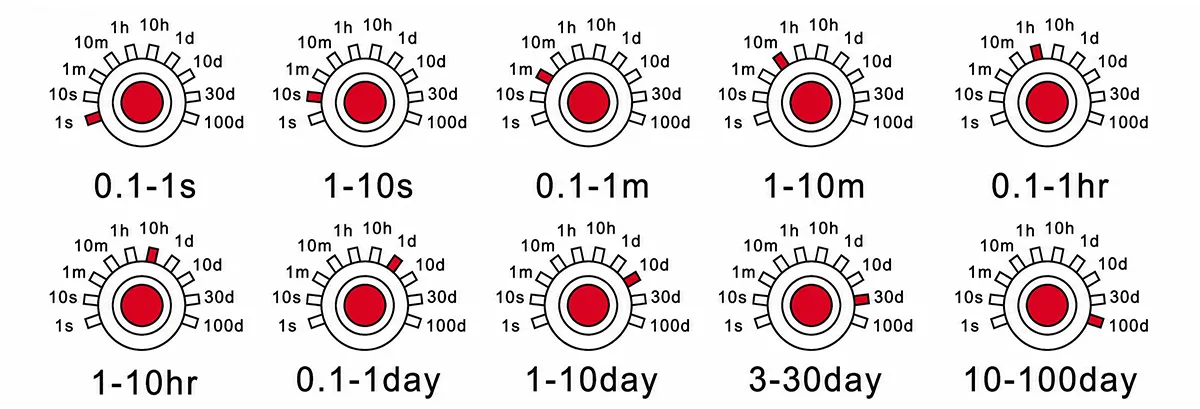

Time setting

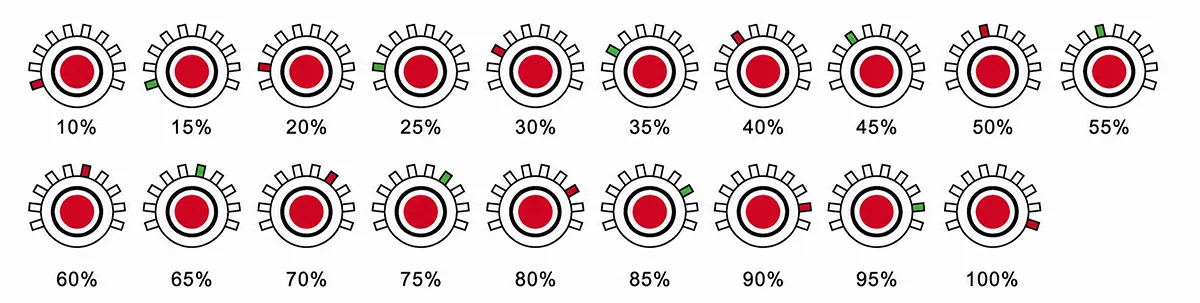

Ratio setting

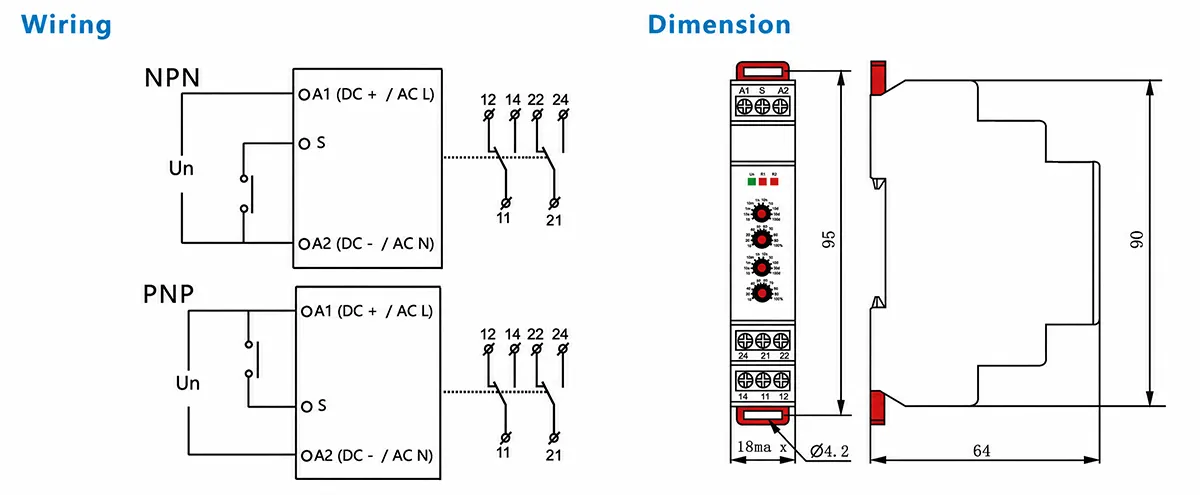

Wiring and Dimension
