Features
ā Monitor for overcurrent or undercurrent
ā Manual resetting and automaticallyresetting supported
ā Wide power supply range from 12to 240 VAC/DC
ā Easy to set up with wiring diagrams on the side of product
ā Strong anti-interference capability
Technical Specifications
| Function | |
| 1 | Overcurrent (Manual resetting / Auto resetting) |
| 2 | Undercurrent (Manual resetting / Auto resetting) |
| 3 | Over & Under current (Manual resetting) |
| 4 | Over & Under current (Auto resetting) |
| Current | |||
| Current range | Current range | ||
| A0.5 | AC 0.05Aā0.5A | D0.5 | DC 0.05Aā0.5A |
| A1 | AC 0.1Aā1A | D1 | DC 0.1Aā1A |
| A2 | AC 0.2Aā2A | D2 | DC 0.2Aā2A |
| A5 | AC 0.5Aā5A | D5 | DC 0.5Aā5A |
| A8 | AC 0.8Aā8A | D8 | DC 0.8Aā8A |
| A16 | AC 1.6Aā16A | D16 | DC 1.6Aā16A |
| ASC18ā01 | ASC18ā02 | |
| Input Terminal | A1āA2 | |
| Voltage range | AC 230V / DC24V / AC/DC 12ā240V | |
| Power consumption | AC 3.5VA / DC 2.0W | |
| Voltage tolerance | -15%~+10% | |
| Supply indication | Green LED | |
| Relay indication | Red LED | |
| Time ranges | 0.1sā20s | |
| Setting | Button | |
| Setting deviation | 0.10% | |
| Measurement accuracy | 5% / Ā±0.1A | |
| Temperature coefficient | 0.05%/ā, at=20ā (0.05%/ā, =68ā) | |
| Output contact | 1*SPDT | |
| Rated current | 1*16A | |
| Mechanical life | 1*10ā· | |
| Electrical life | 1*10āµ | |
| Ambient Temperature | -20 … +60ā / -40 … +85ā | |
| Mounting | DIN rail EN/IEC 60715 | |
| IP Rating | IP20 | |
| Stripping length | 7mm (0.28in) | |
| Installed altitude | ā¤2200m | |
| Pollution level | 2 | |
| Max cable size | AWG13ā20 0.4NĀ·m | |
| Dimension | 90mm*18mm*64mm | |
| Weight | About 90g | |
| Standards | GB/T 14048.5, IEC60947ā5ā1, EN6812ā1 | |
*The above information is subject to change without further notice
Technical Data and Drawings

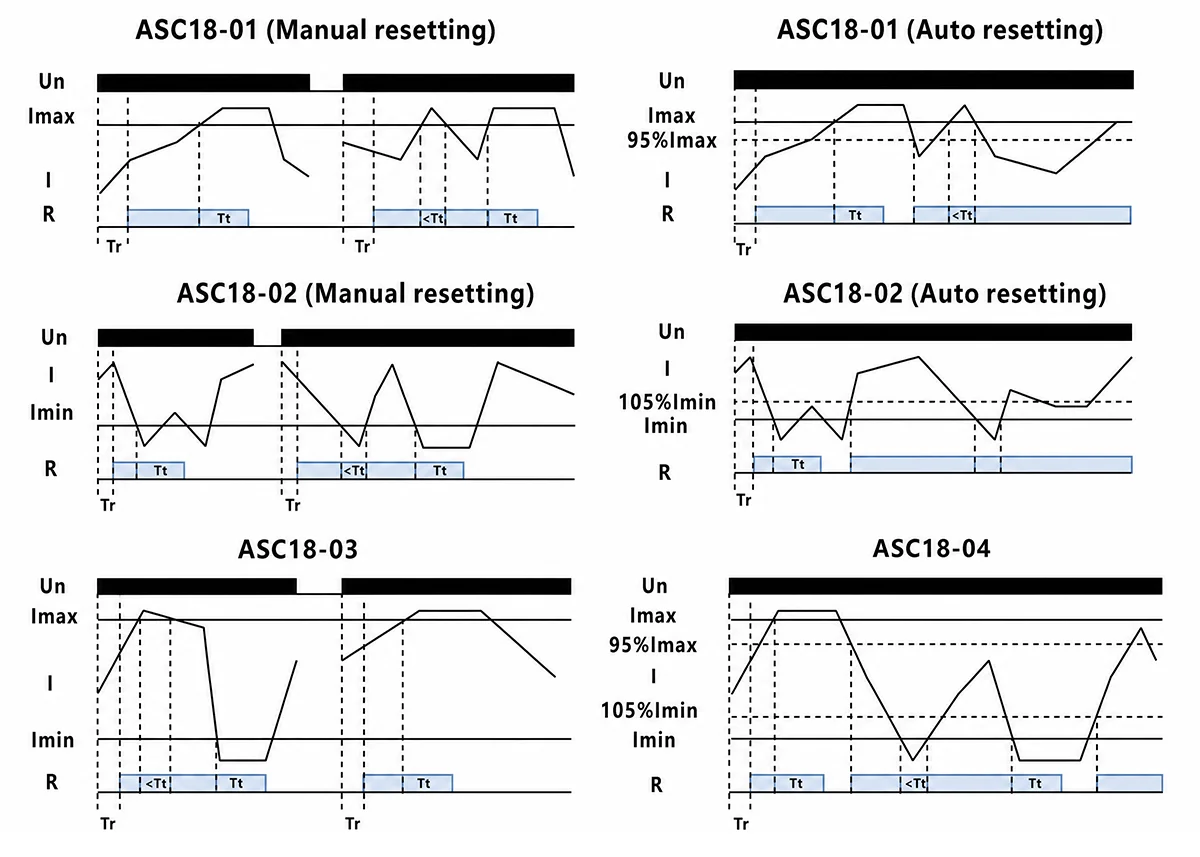

Function Chart

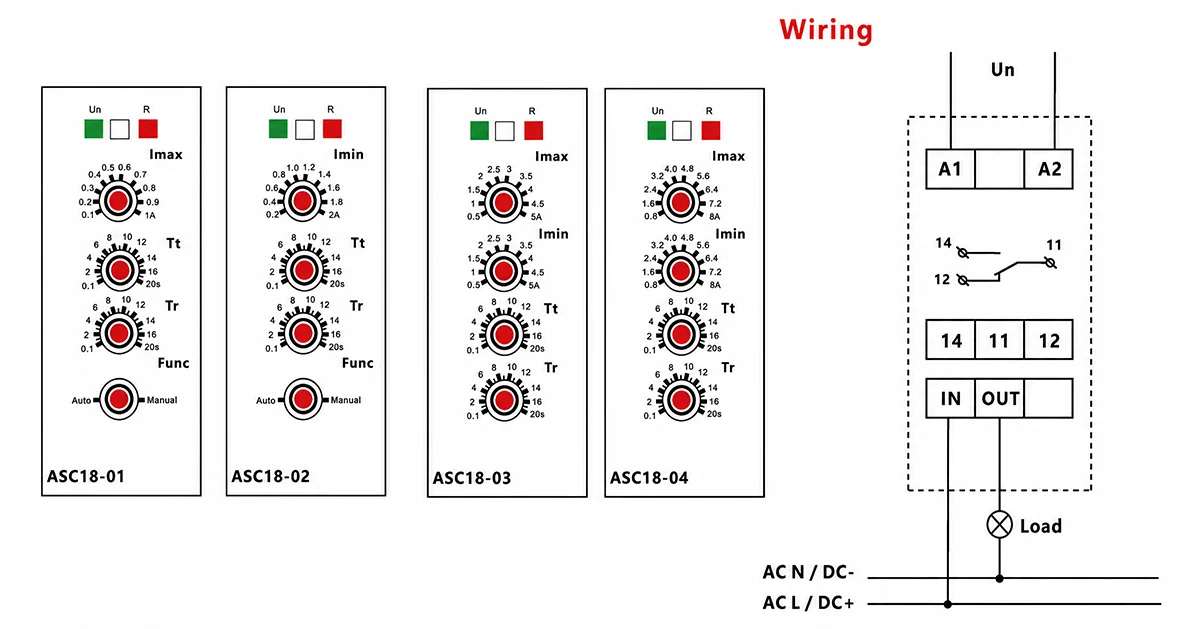

Wiring
