Features
● 3 modes: Auto.ON,OFF
● Wide power supply range from 12to 240 VAC/DC.
● Easy to set up with wiring diagrams on the side of product
● Strong anti-interference capability
Technical Specifications

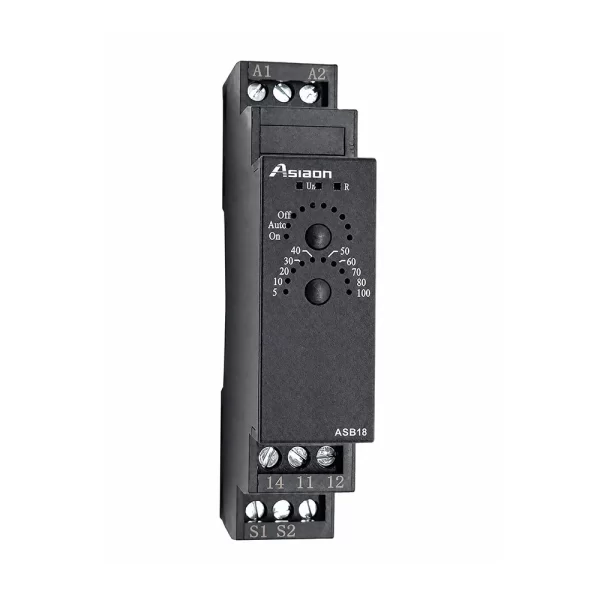

| ASB18 | |
| Input Terminal | A1-A2 |
| Voltage range | AC 230V / DC24V / AC/DC 12-240V |
| Power consumption | AC 3.5VA / DC 2.0W |
| Voltage tolerance | -15%~+10% |
| Supply indication | Green LED |
| Relay indication | Red LED |
| Setting | Button |
| Temperature coefficient | 0.05%/℃, at=20℃ (0.05%/℉, =68℉) |
| Output contact | 1*SPDT |
| Rated current | 1*16A |
| Mechanical life | 1*10⁷ |
| Electrical life | 1*10⁵ |
| Ambient Temperature | -20 … +60℃ / -40 … +85℃ |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping length | 7mm (0.28in) |
| Installed altitude | ≤2200m |
| Pollution level | 2 |
| Max cable size | AWG13-20 0.4N·m |
| Dimension | 90mm*18mm*64mm |
| Weight | About 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
*The above information is subject to change without further notice
Technical Data and Drawings

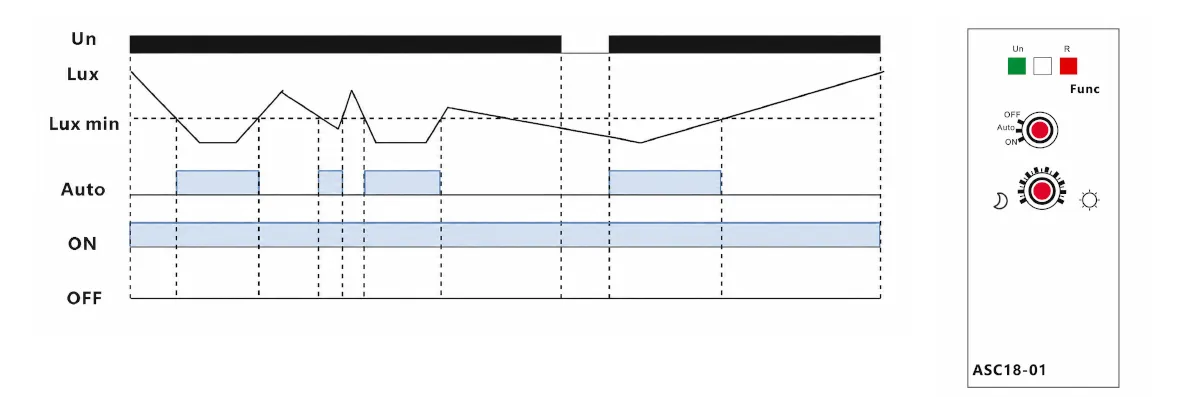

Function Chart

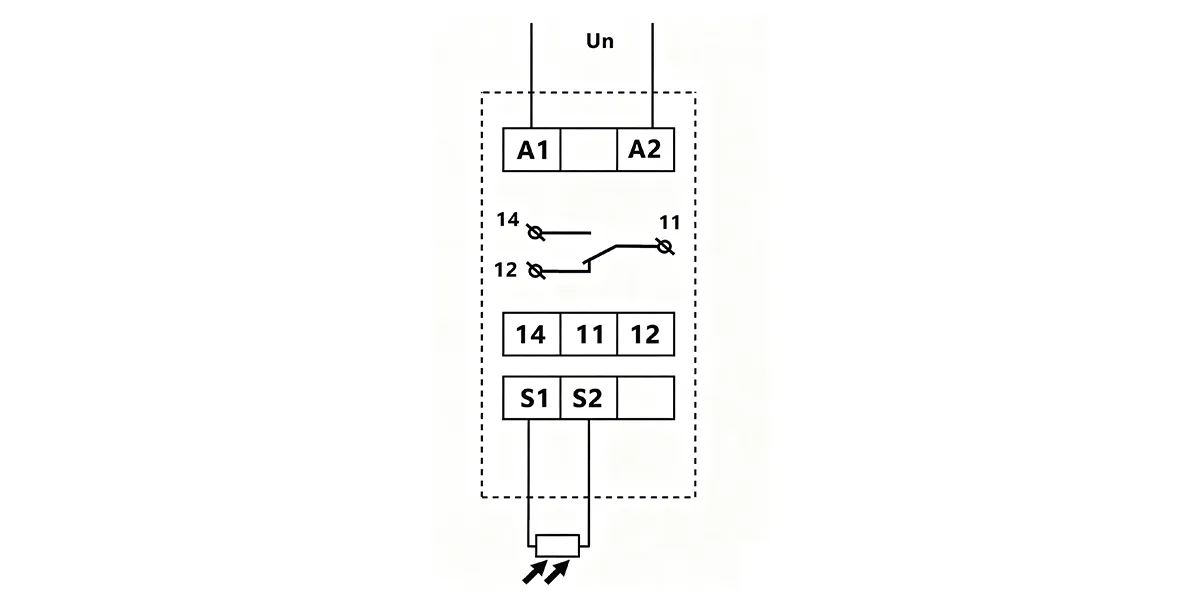

Wiring
