Product Overview

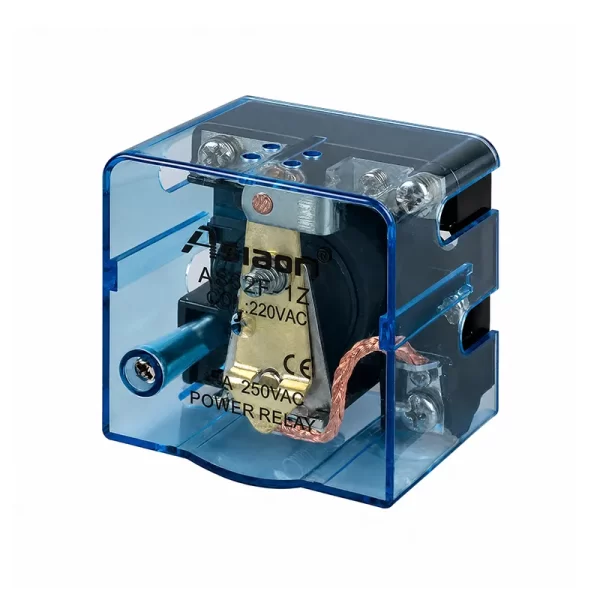

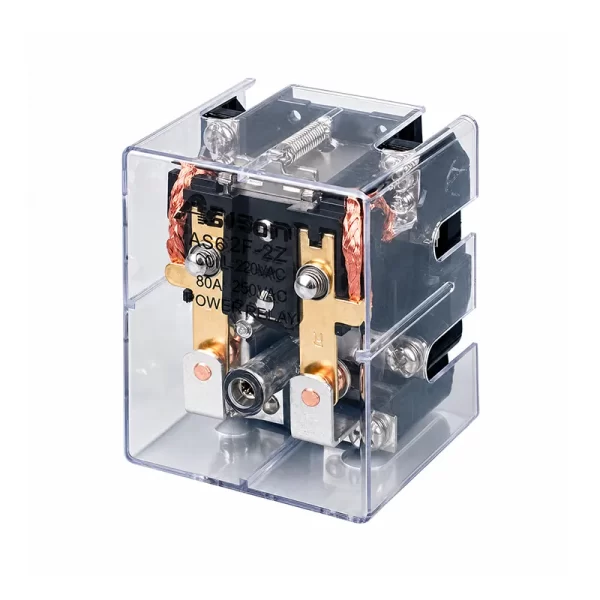

AS62F Power Relay is a relay documented with a 1Z contact form, AgSnO₂ contact material.
Key Features
● 1Z with metal wire,rated load reach 120A max
● Without cover version AS 62 available, better radiator
● Contact form: 1Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: Screw.
● Operating power: 80A: DC2.0W/AC4VA120A: DC2.0W/AC4VA.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) | 80A、120A 250VAC/30VDC | ||
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥2500VAC/1min | |||
| Operate/Release Time | ≤40ms/25ms | ||
| Terminal Type | Screw | ||
| Coil | Operating Power DC/AC | DC/AC 80A: DC2.0W/AC4VA 120A: DC2.0W/AC4VA |
|
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 18 |
| 12 | 9.6 | 1.2 | 70 |
| 24 | 19.2 | 2.4 | 290 |
| 48 | 38.4 | 4.8 | 1150 |
| 60 | 48 | 6 | 1800 |
| 110 | 88 | 11 | 6050 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 9 |
| 12 | 9.6 | 3.6 | 36 |
| 24 | 19.2 | 7.2 | 144 |
| 48 | 38.4 | 14.4 | 576 |
| 110 | 88 | 36 | 3025 |
| 220/240 | 176 | 72 | 12000/14400 |
Technical Data and Drawings

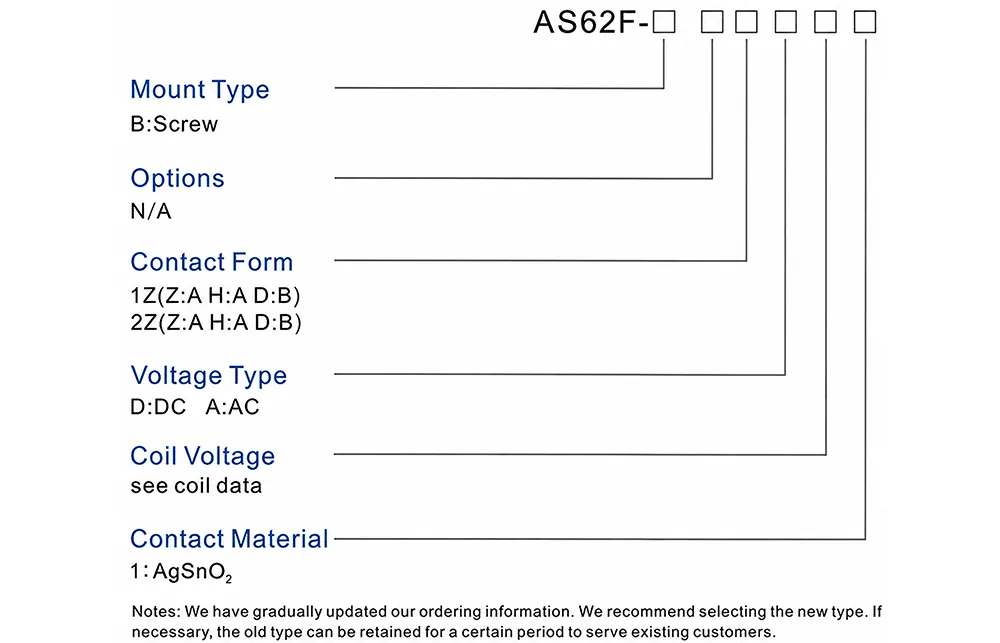

Ordering Information

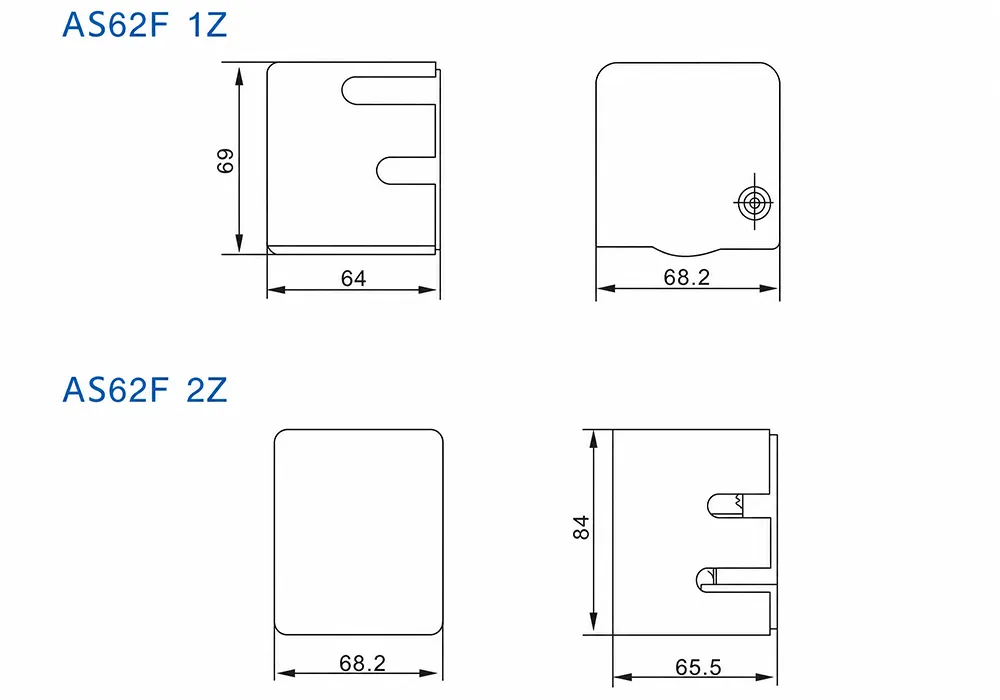

Dimensions (mm)

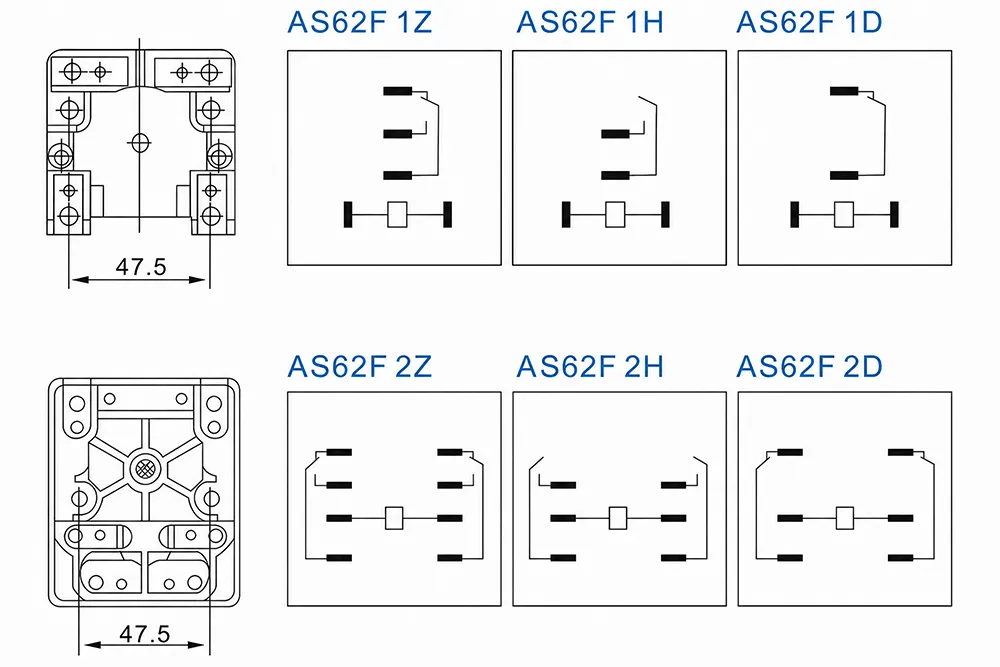

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤40ms/25ms.
