Product Overview
AS60F Power Relay is a relay documented with a 1Z、1H、1D contact form, AgSnO₂ contact material.
Key Features

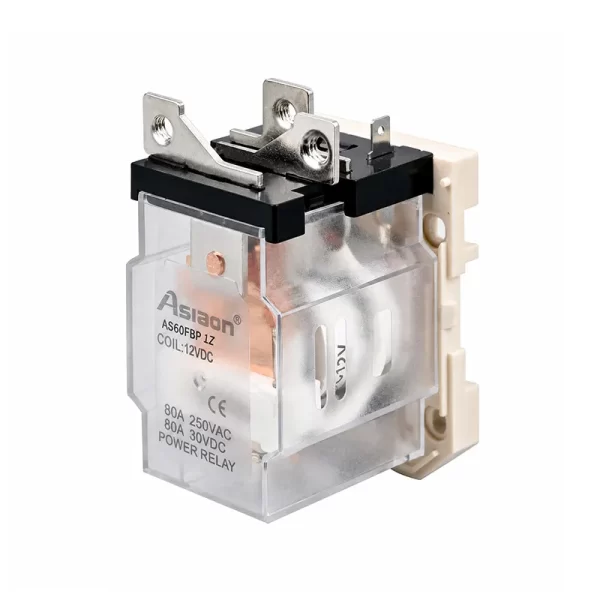

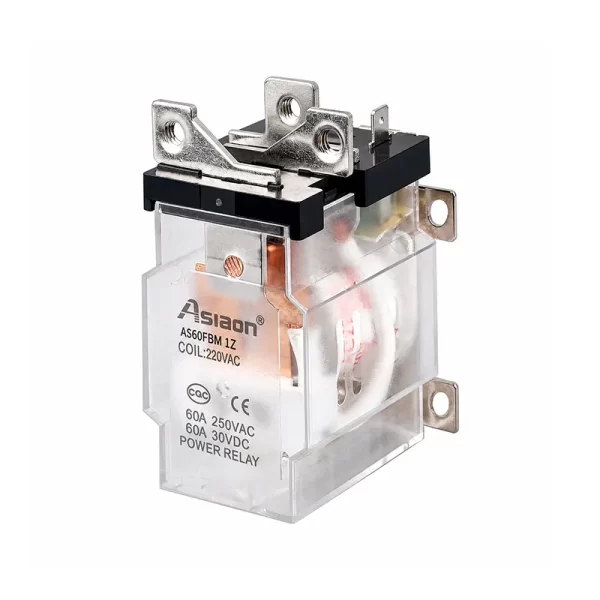

● Two kinds of mount options: metal or plastic
● Contact form: 1Z、1H、1D.
● Contact material: AgSnO₂.
● Terminal or connection specification: Screw.
● Operating power: 2.0W/2.5VA.
Technical Specifications
| Specifications | ||
| Contact | Contact Form | 1Z、1H、1D |
| Rated Load (Resistive property) | 60A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤25ms/25ms | |
| Terminal Type | Screw | |
| Coil | Operating Power DC/AC | 2.0W/2.5VA |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 18 |
| 12 | 9.6 | 1.2 | 72 |
| 24 | 19.2 | 2.4 | 288 |
| 48 | 38.4 | 4.8 | 1150 |
| 60 | 48 | 6 | 1800 |
| 110 | 88 | 11 | 6050 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 144.4 |
| 12 | 9.6 | 3.6 | 577 |
| 24 | 19.2 | 7.2 | 2300 |
| 48 | 38.4 | 14.4 | 9210 |
| 110 | 88 | 36 | 5000 |
| 220/240 | 176 | 72 | 19400/23070 |
Technical Data and Drawings

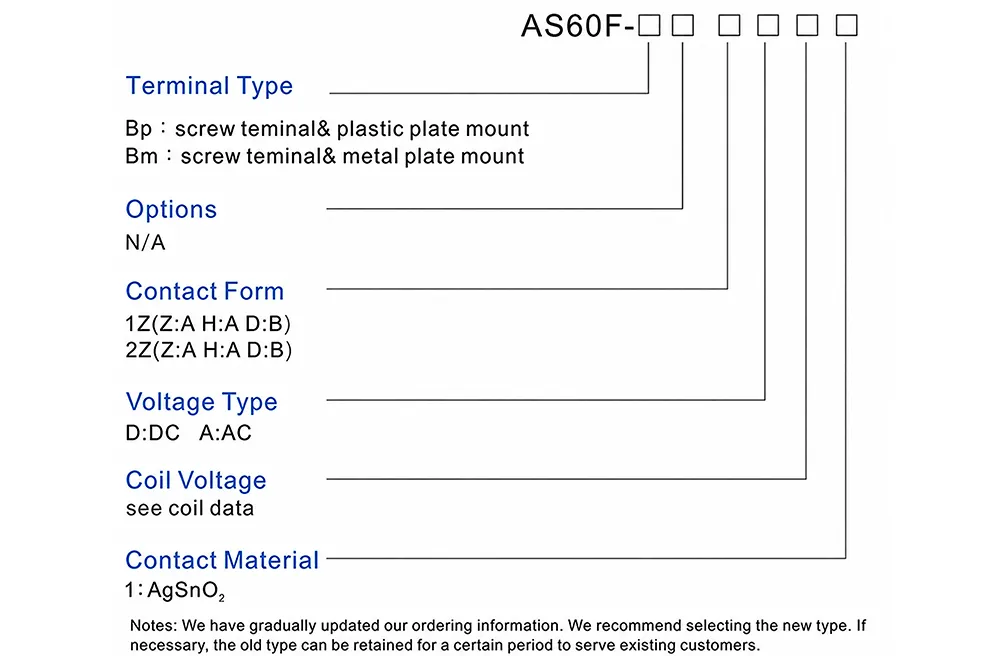

Ordering Information

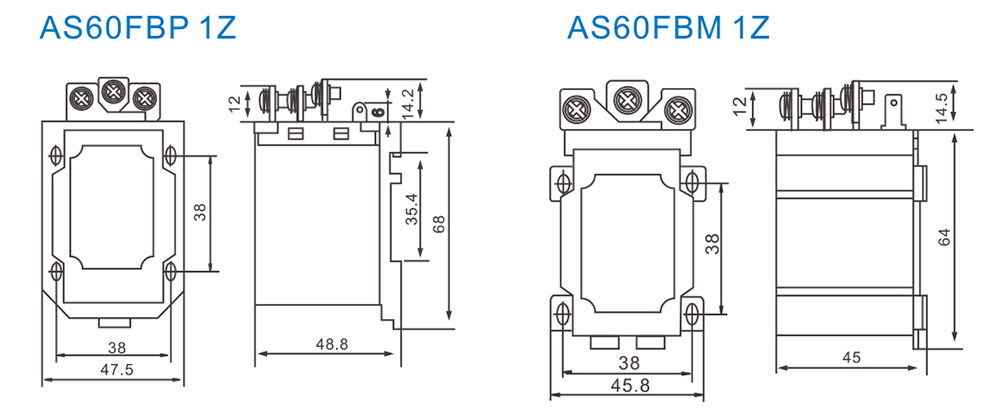

Dimensions (mm)

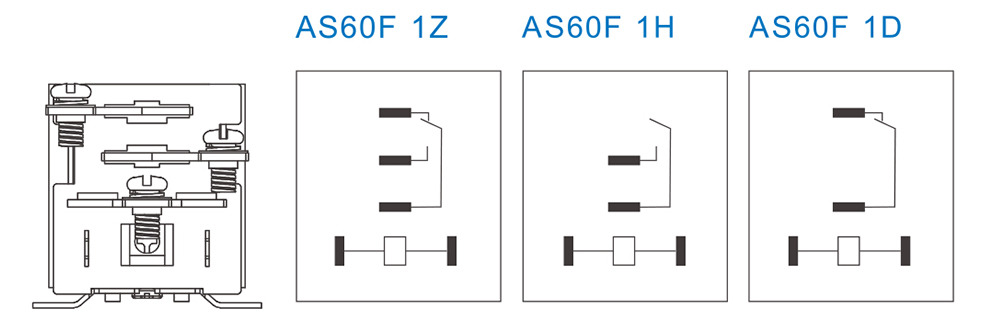

Wiring Diagram
Frequently Asked Questions
What is the contact form?
The documented contact form is 1Z、1H、1D.
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operating power is listed?
The listed operating power is 2.0W/2.5VA.
