Product Overview

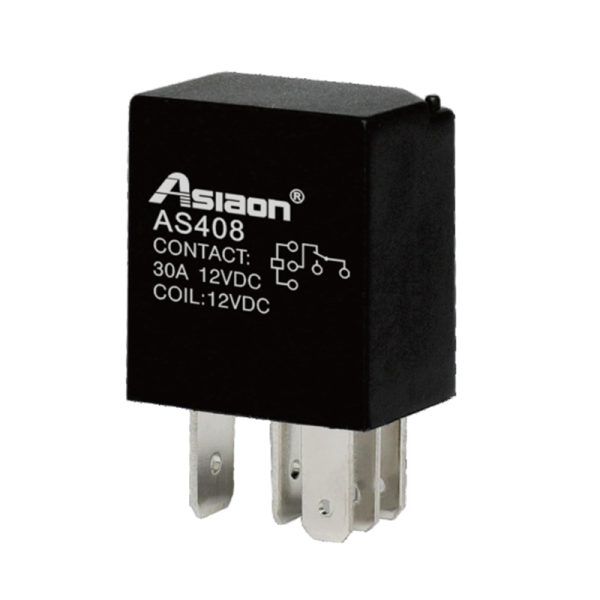

AS408 Automotive Relay is a relay documented with a 1H contact form, AgSnO₂ contact material.
Features
● Rated load 30A
● Extended temp range up to 125°C
● Plastic sealed and dust proof types available
● ELV compliant
Product Parameters
| Specifications | ||
| Contact | Contact Form | 1H |
| Rated Load (Resistive property) | 30A 12VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤50MΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥500MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥500VAC/1min | |
| Between contact and coil≥500VAC/1min | ||
| Operate/Release Time | ≤15ms/10ms | |
| Terminal Type | Quick Connection | |
| Coil | Operating Power DC | 1.4W |
DC Coil Data
| Rated Voltage VDC | Pickup Voltage VDC | Dropoff Voltage VDC | Coil Resistance Ω±10% |
| 5 | 3.5 | 0.5 | 18 |
| 6 | 4.2 | 0.6 | 26 |
| 12 | 8.4 | 1.2 | 103 |
| 24 | 16.8 | 2.4 | 410 |
Technical Data and Drawings

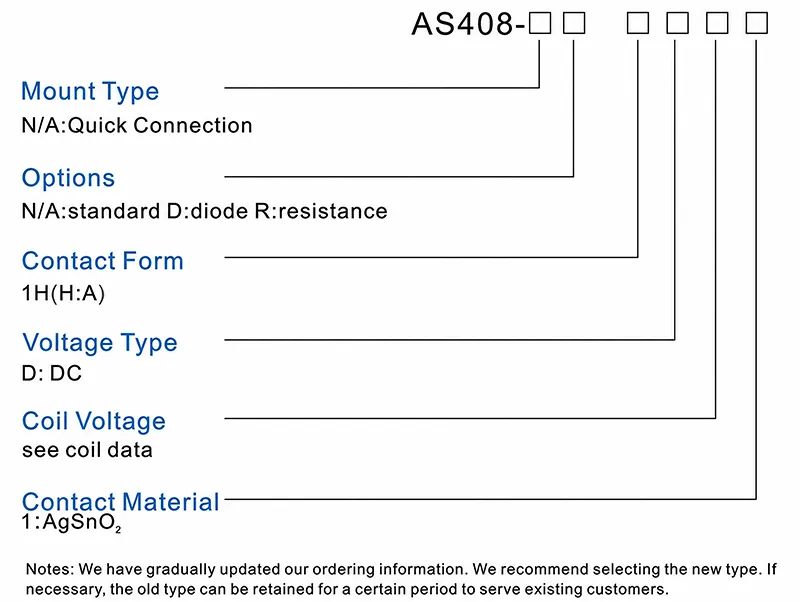

Ordering Information

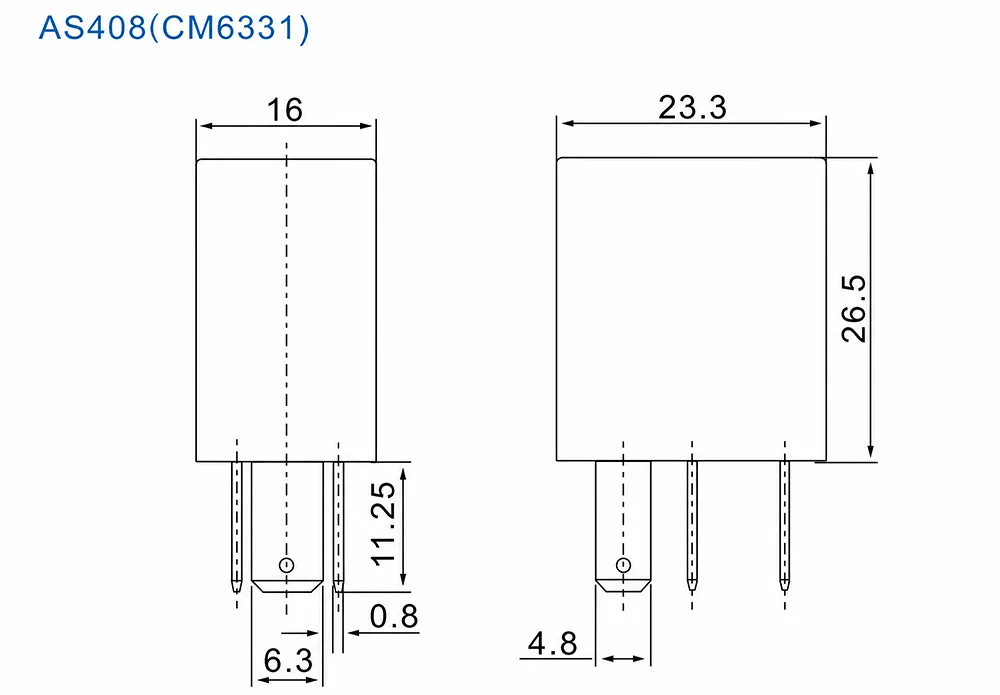

Dimensions (mm)

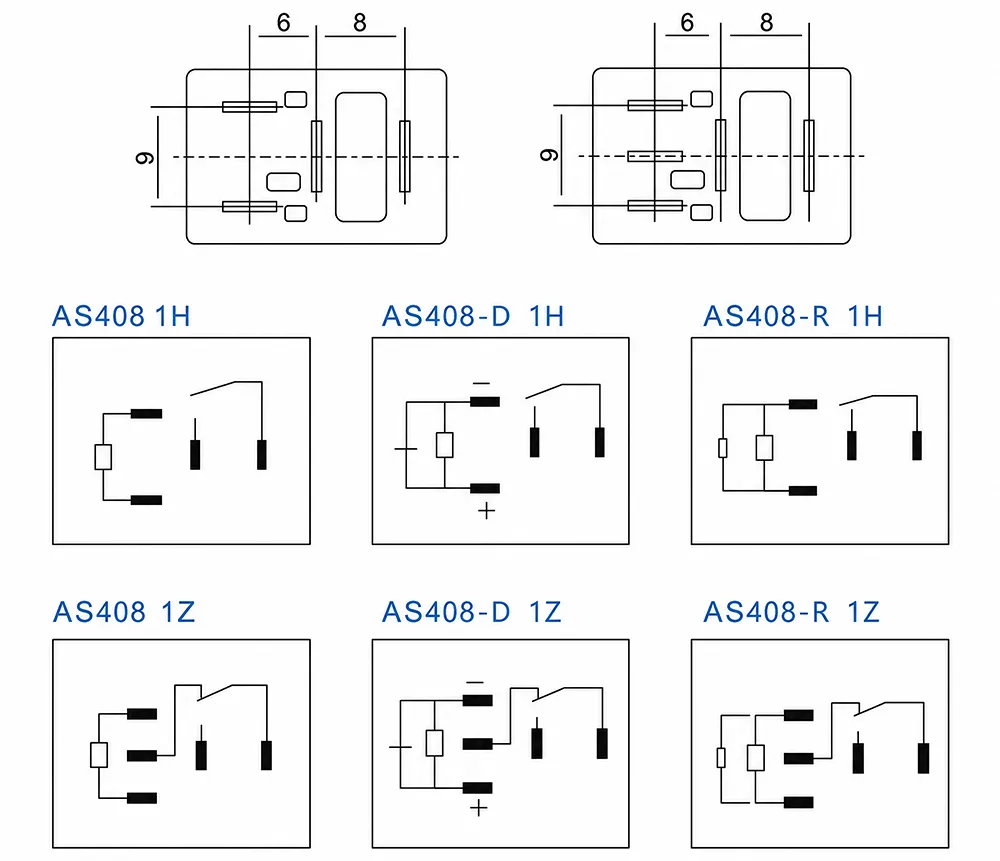

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥500MΩ (500VDC).
What dielectric or withstand voltage is specified?
The specified value is Between open contacts≥500VAC/1min.
What operate and release time is listed?
The listed operate/release time is ≤15ms/10ms.
