Product Features

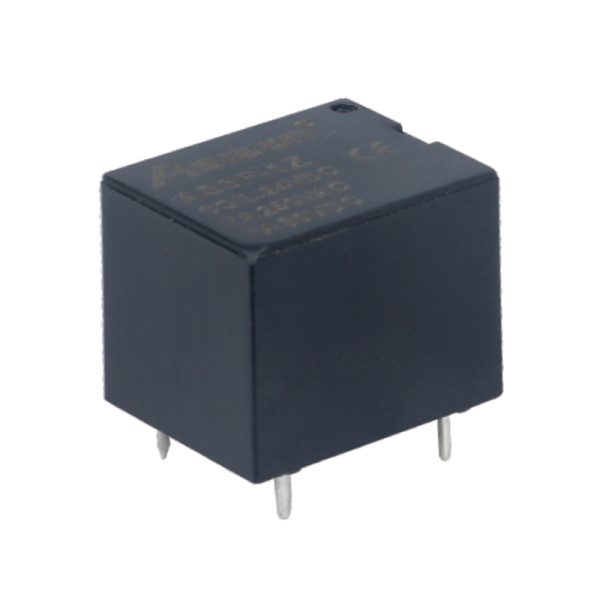

● Compact format: The product description identifies AS3F as a small-size PCB relay.
● 1Z contact form: The product uses the 1Z contact configuration.
● Class F insulation: The insulation level is Class F.
● PCB connection: The parameter table lists PCB terminals and the ordering diagram specifies P: PCB mounting.
Key Specifications
| Specifications | ||
| Contact | Contact Form | 1Z |
| Rated Load (Resistive property) | 7A 250VAC/30VDC 10A 250VAC/30VDC |
|
| Electrical/Mechanical Life | ≥100000times/1000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂, AgNi | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between poles≥1500VAC/1min | ||
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤10ms/5ms | |
| Terminal Type | PCB | |
| Coil | Operating Power DC/AC | 0.36W |
Coil Data
| Rated voltage (VDC) | Pickup voltage (VDC) | Dropoff voltage (VDC) | Coil resistance (Ω ±10%) |
|---|---|---|---|
| 3 | 2.25 | 0.3 | 25 |
| 5 | 3.75 | 0.5 | 70 |
| 6 | 4.5 | 0.6 | 100 |
| 9 | 6.8 | 0.9 | 225 |
| 12 | 9.0 | 1.2 | 400 |
| 18 | 13.5 | 1.8 | 900 |
| 24 | 19.0 | 2.4 | 1600 |
| 48 | 36.0 | 4.8 | 4500 |
Technical Data and Drawings

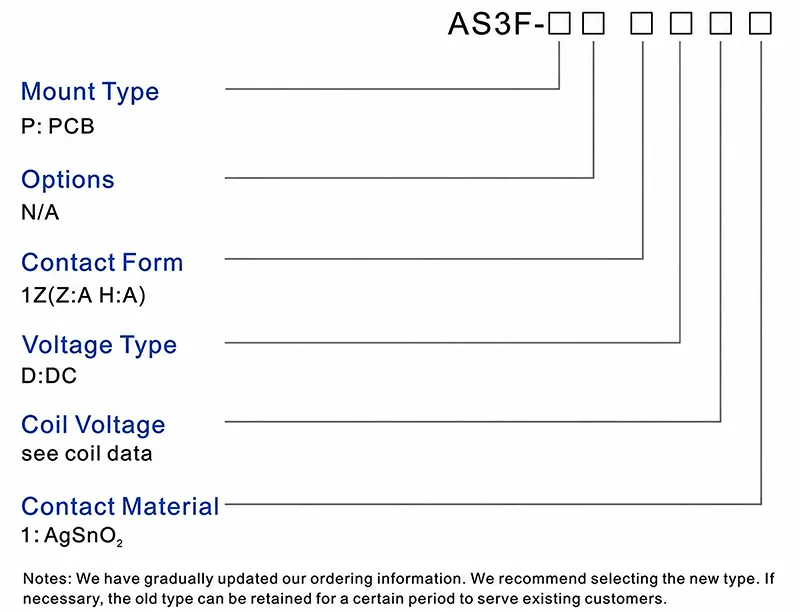

Ordering Information

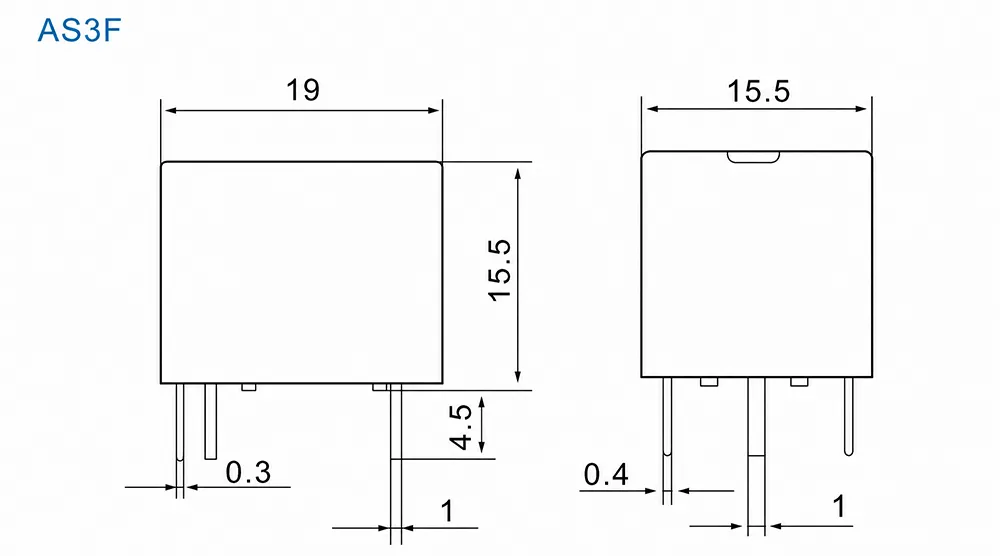

Dimensions (mm)

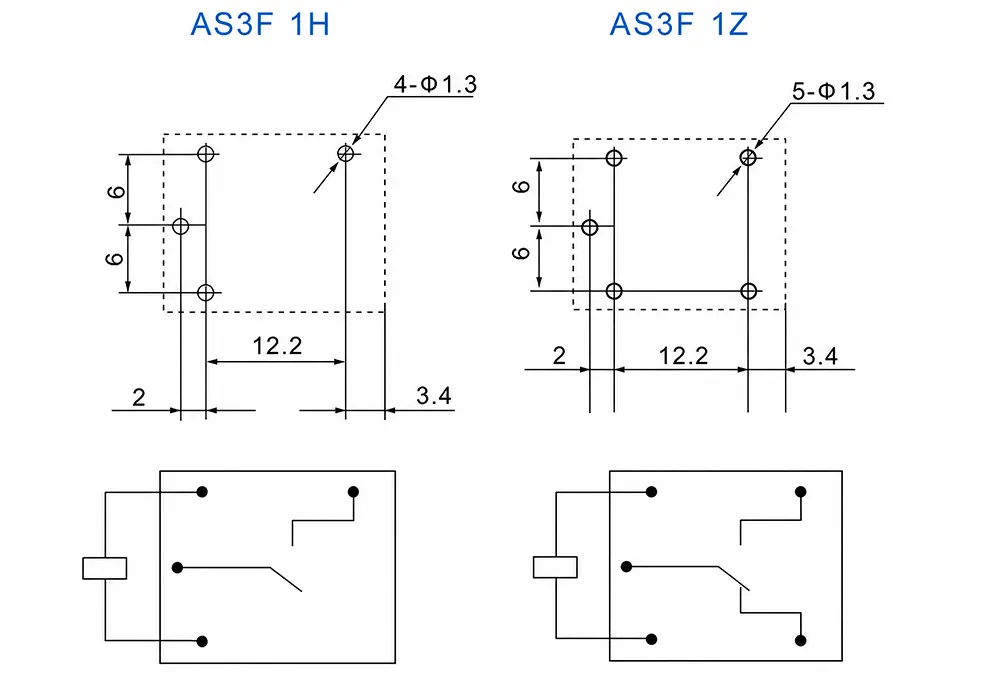

Wiring Diagram
Technical Questions
What rated loads are listed?
The resistive-load options are 7A and 10A at 250VAC/30VDC.
What is the insulation level?
The insulation level is Class F.
What is the operating power?
The listed operating power is 0.36W DC/AC.
