Product Overview

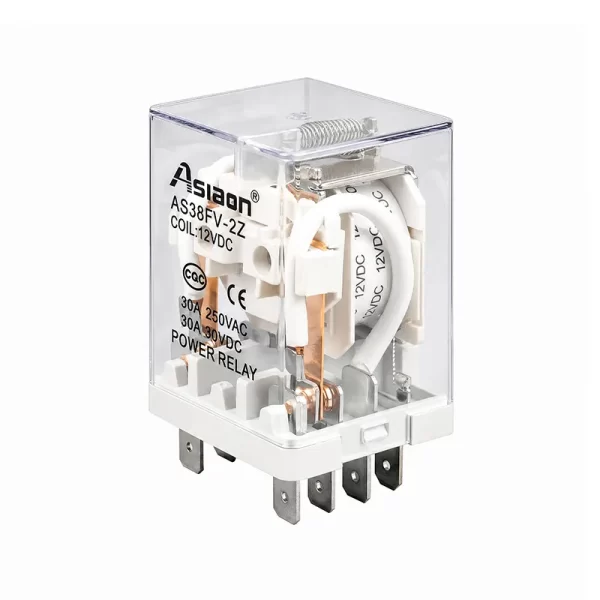

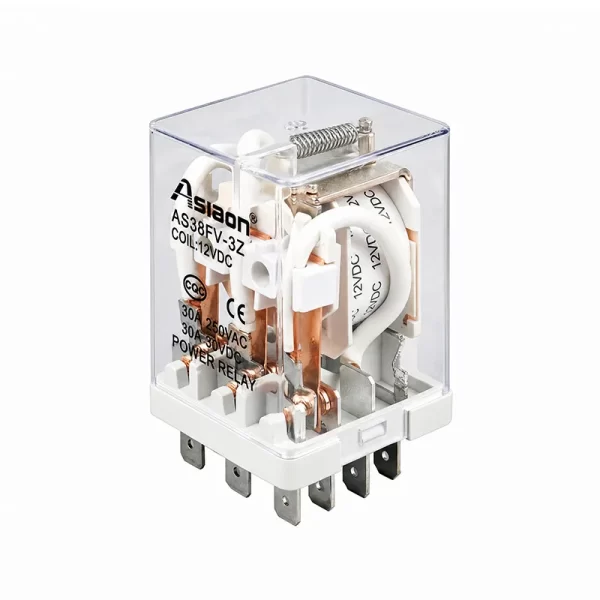

AS38FV Power Relay is a relay documented with a 2Z contact form, AgSnO₂ contact material.
Key Features
● Flange mount cover available
● Two kinds ofrated load:Level A 40A, Level B 30A
● Matched sockets PlF□A
● Contact form: 2Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: plug in/wire/quick connection.
● Operating power: 2.5W/5VA.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 2Z | 3Z |
| Rated Load (Resistive property) | 40A 250VAC/30VDC | 30A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coils≥2500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | plug in/wire/quick connection | ||
| Coil | Operating Power DC/AC | 2.5W/5VA | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 1.2 | 57 |
| 24 | 19.2 | 2.4 | 230 |
| 48 | 38.4 | 4.8 | 920 |
| 60 | 48 | 6 | 1440 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 3.6 | 10 |
| 24 | 19.2 | 7.2 | 40.3 |
| 110 | 88 | 36 | 847 |
| 220/240 | 176 | 72 | 3700 |
Technical Data and Drawings

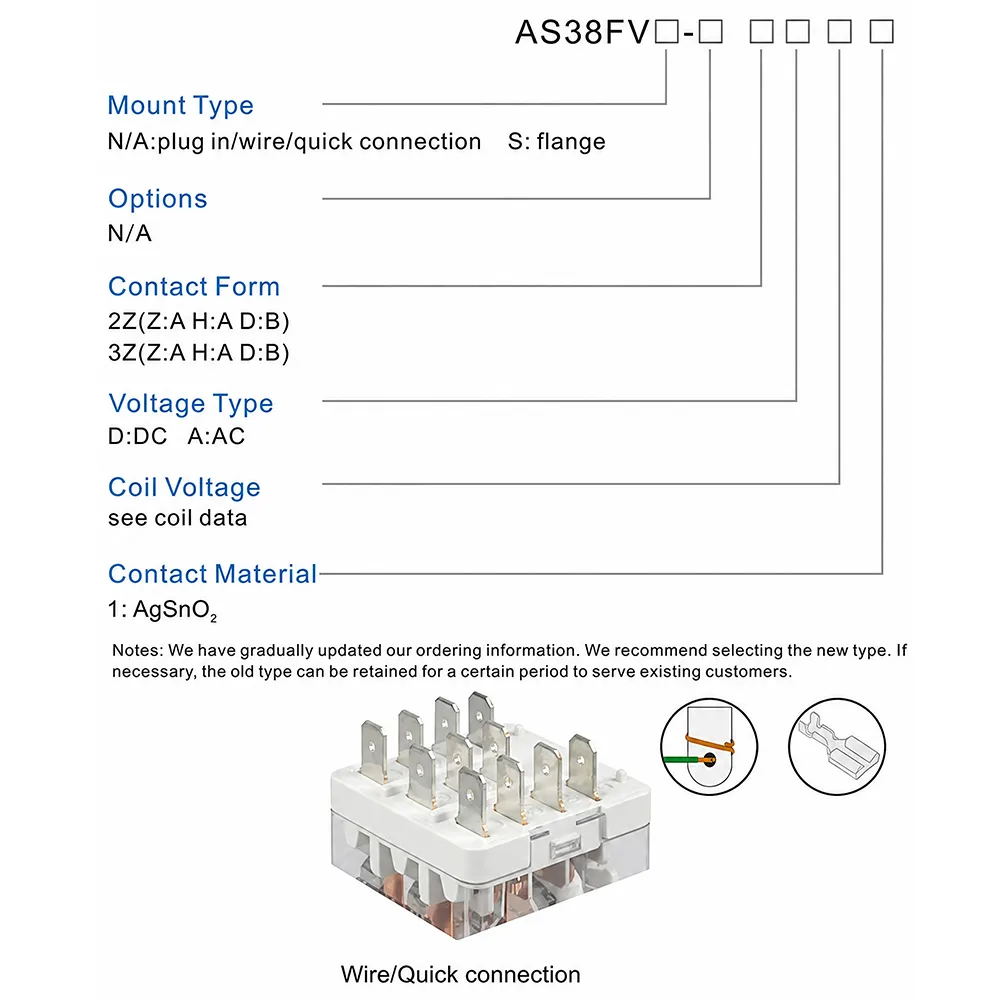

Ordering Information

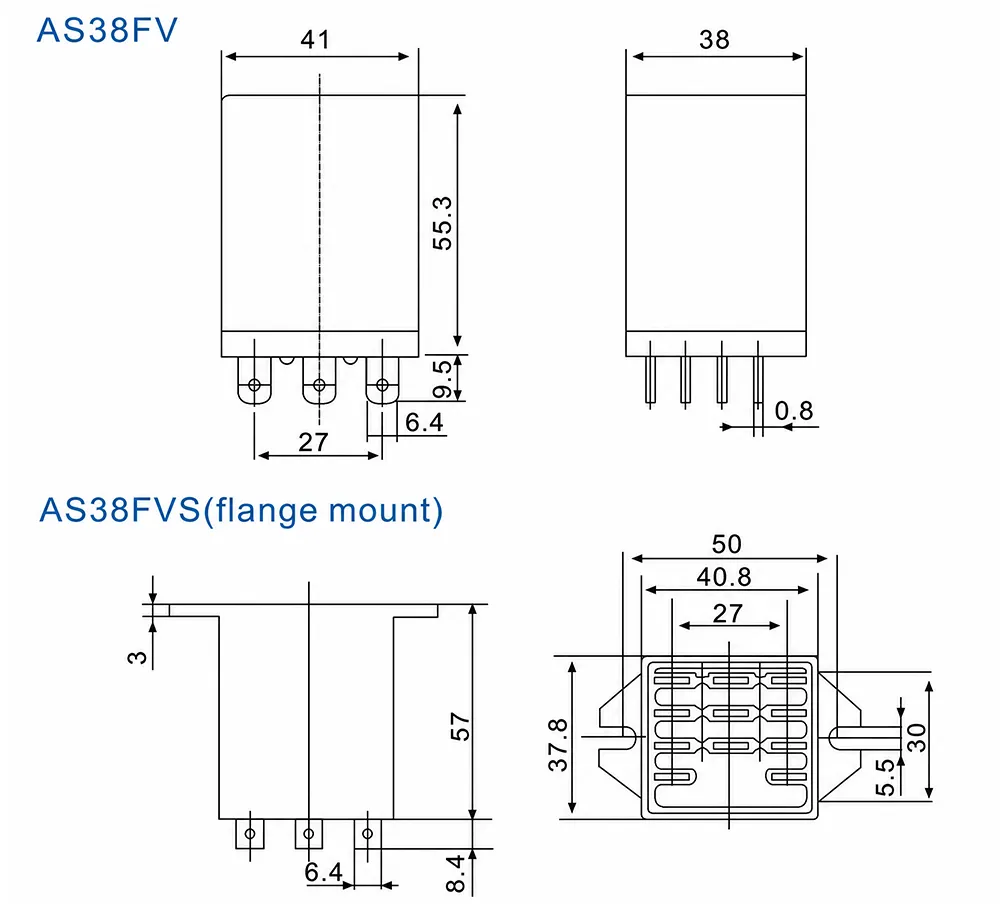

Dimensions (mm)

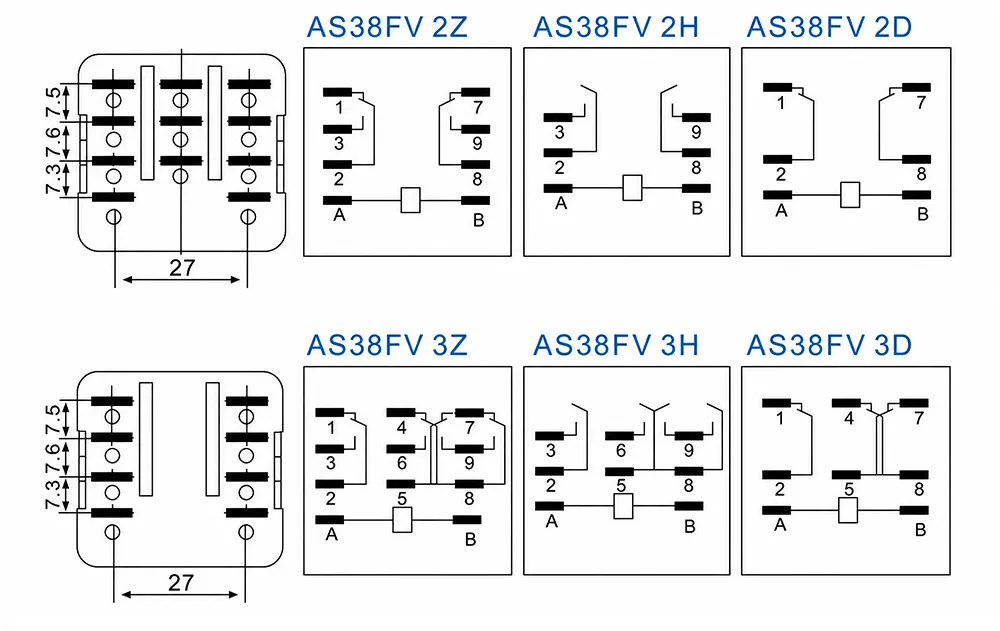

Wiring Diagram
Frequently Asked Questions
What is the contact form?
The documented contact form is 2Z.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 2.5W/5VA.
