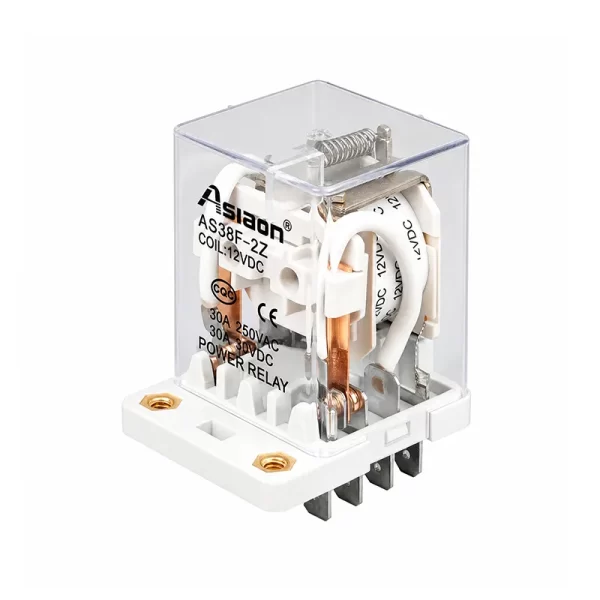

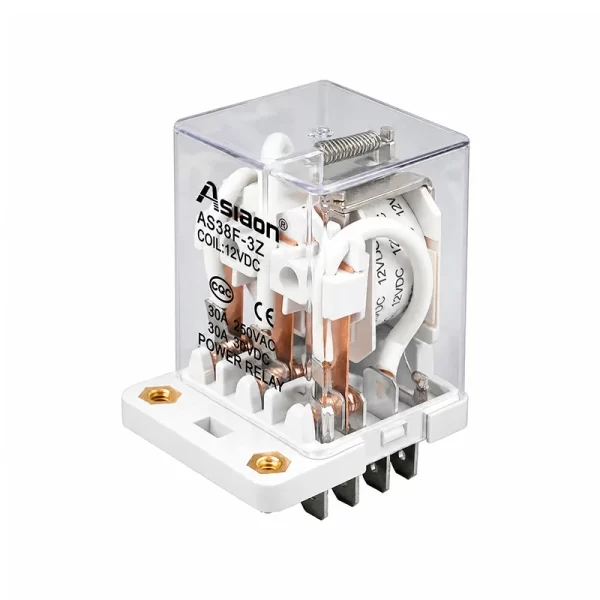

Product Overview
AS38F Power Relay is a relay documented with a 2Z contact form, AgSnO₂ contact material.
Key Features
● With screw mount board
● Two kinds of load: Level A 40A, Level B 30A
● Contact form: 2Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: Wire/Quick connection.
● Operating power: 2.5W/5VA.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 2Z | 3Z |
| Rated Load (Resistive property) | 40A 250VAC/30VDC | ||
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥2500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Wire/Quick connection | ||
| Coil | Operating Power DC/AC | 2.5W/5VA | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 1.2 | 57 |
| 24 | 19.2 | 2.4 | 230 |
| 48 | 38.4 | 4.8 | 920 |
| 60 | 48 | 6 | 1440 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 3.6 | 10 |
| 24 | 19.2 | 7.2 | 40.3 |
| 110 | 88 | 36 | 847 |
| 220/240 | 176 | 72 | 3700 |
Technical Data and Drawings

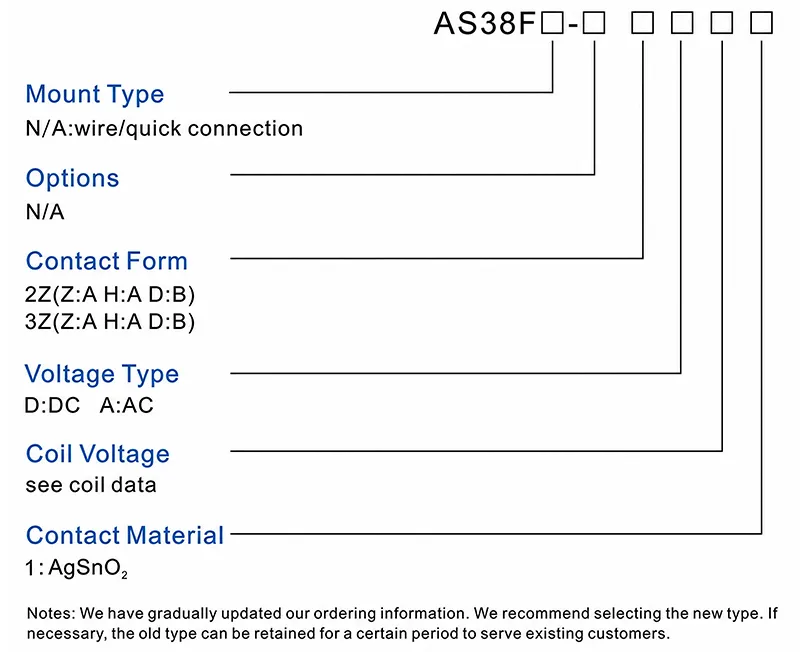

Ordering Information

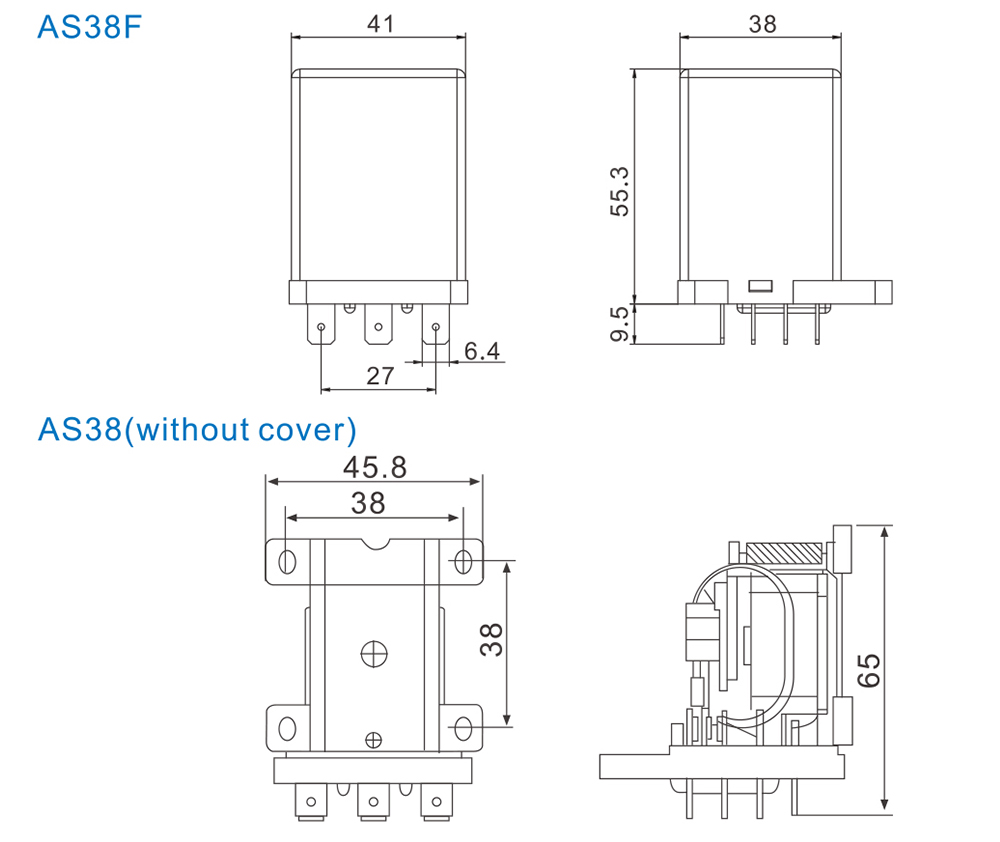

Dimensions (mm)

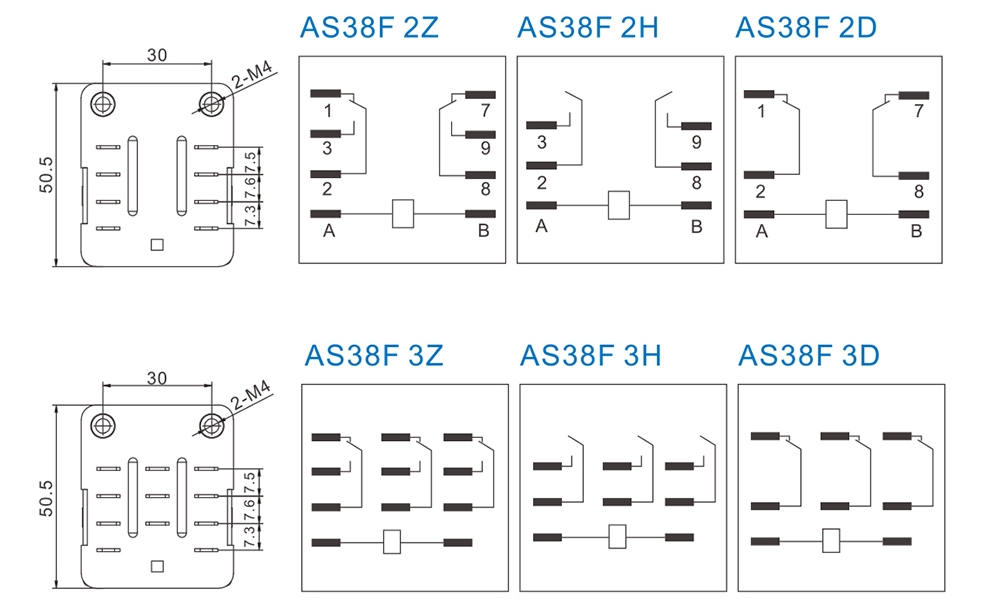

Wiring Diagram
Frequently Asked Questions
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 2.5W/5VA.
