Product Overview

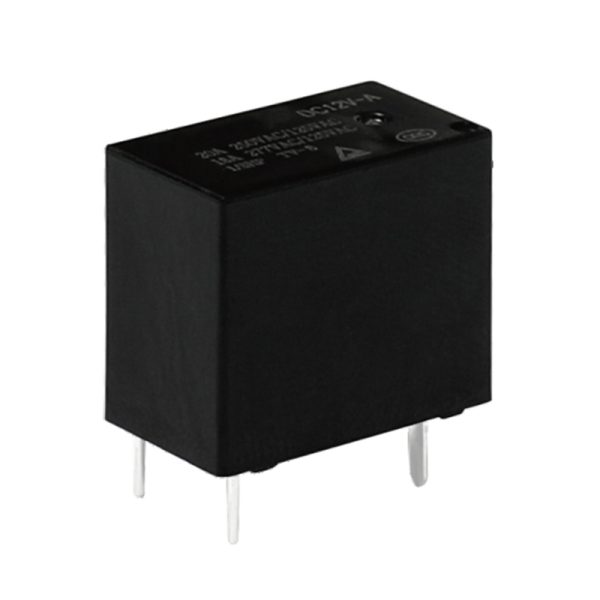

AS32F PCB Relay is a PCB relay with a 1H contact form and PCB terminals. The product documentation lists a 10A/16A resistive load at 250VAC/30VDC, Class F insulation, and 3–24VDC coil options.
Product Features
● PCB mounting: The ordering diagram specifies P: PCB as the mount type.
● 1H contact form: The product uses the 1H contact configuration shown in the parameter and wiring data.
● Insulation class: The insulation level is Class F.
● Sealed options: Plastic-sealed and dust-proof types are available in the product description.
Key Specifications
| Specifications | ||
| Contact | Contact Form | 1H |
| Rated Load (Resistive property) | 10.16A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between contact and coil≥4000VAC/1min | ||
| Operate/Release Time | ≤8ms/5ms | |
| Terminal Type | PCB | |
| Coil | Operating Power DC | 0.45W |
Coil Data
| Rated voltage (VDC) | Pickup voltage (VDC) | Dropoff voltage (VDC) | Coil resistance (Ω ±10%) |
|---|---|---|---|
| 3 | 2.25 | 0.3 | 20 |
| 5 | 3.75 | 0.5 | 55 |
| 6 | 4.5 | 0.6 | 80 |
| 9 | 6.75 | 0.9 | 180 |
| 12 | 9 | 1.2 | 320 |
| 18 | 13.5 | 1.8 | 720 |
| 24 | 18.0 | 2.4 | 1280 |
Technical Data and Drawings

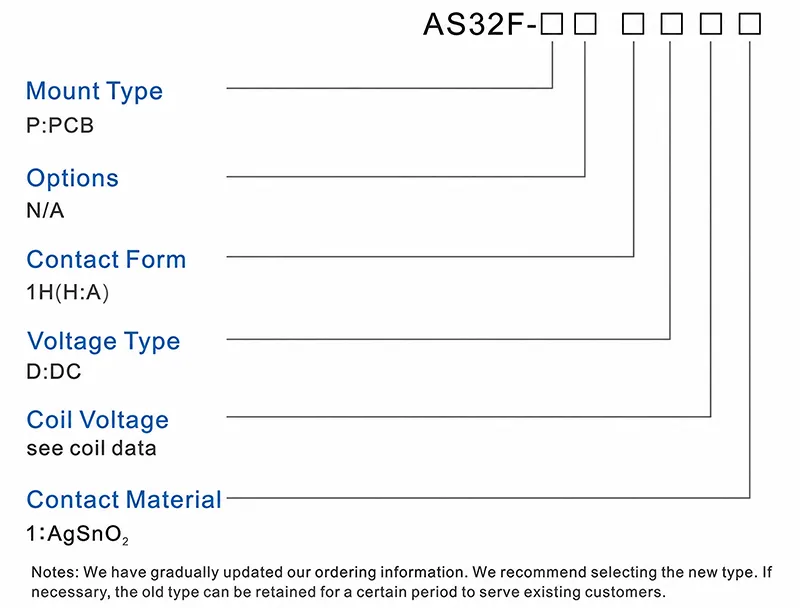

Ordering Information

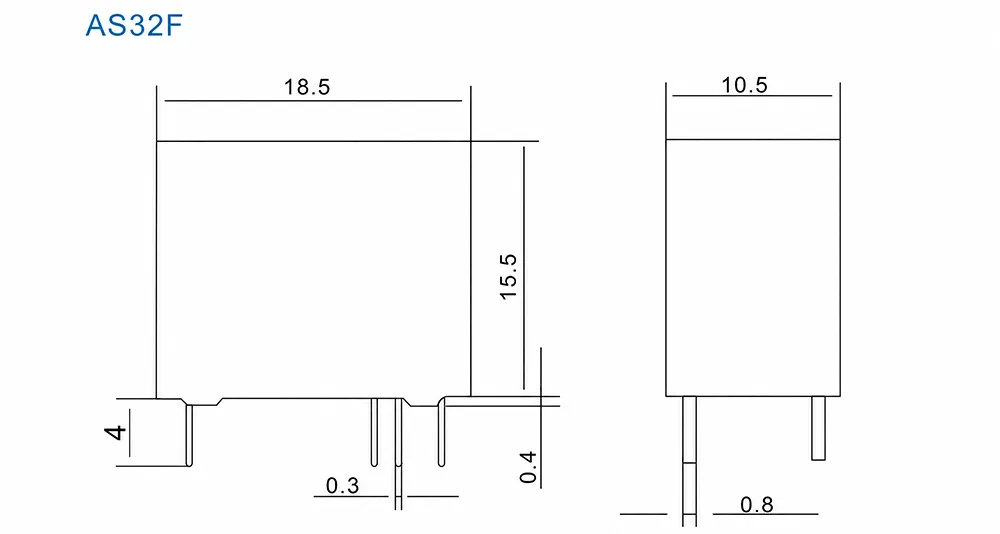

Dimensions (mm)

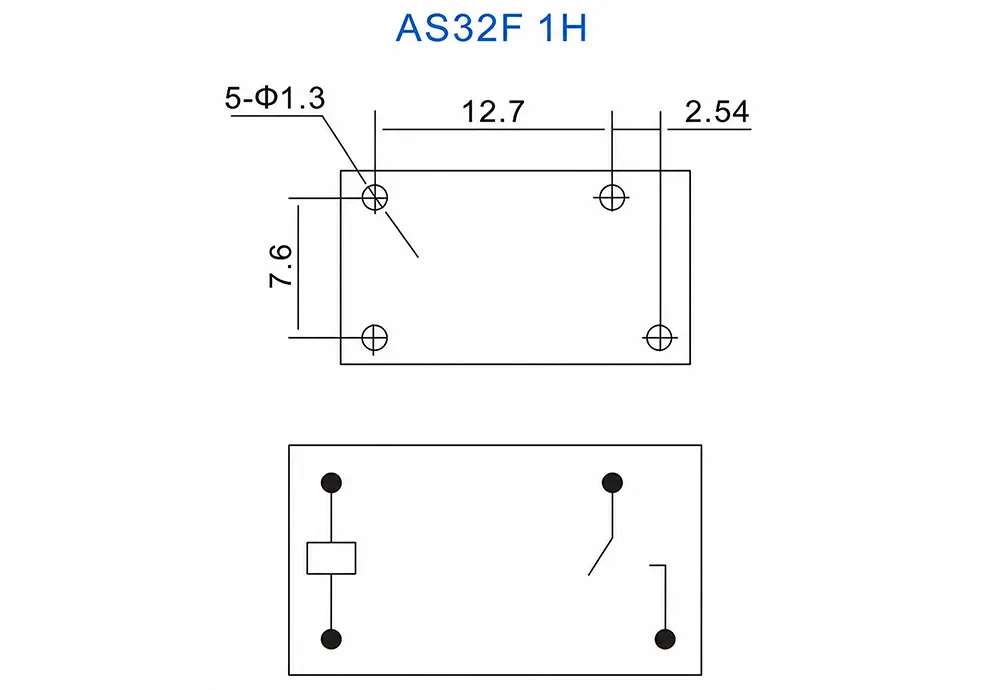

Wiring Diagram
Technical Questions
What is the rated load?
The resistive load is listed as 10A/16A at 250VAC/30VDC.
What coil voltages are listed?
The DC coil table lists 3V, 5V, 6V, 9V, 12V, 18V, and 24V rated voltages.
What is the insulation level?
The insulation level is Class F.
What is the operating power?
The listed DC operating power is 0.45W.
