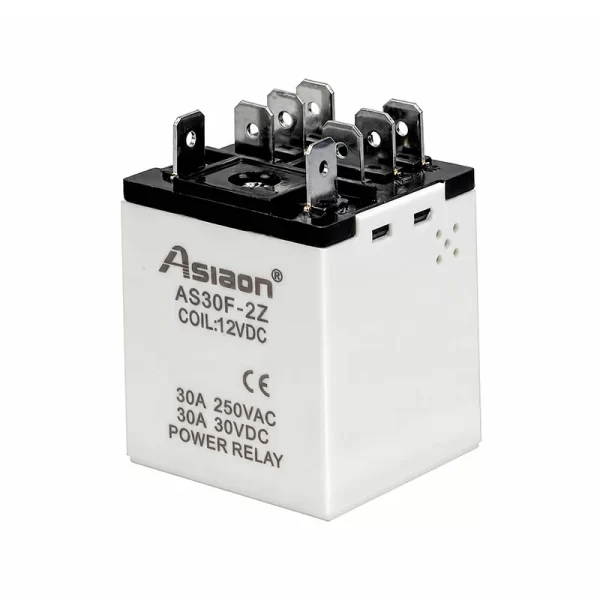

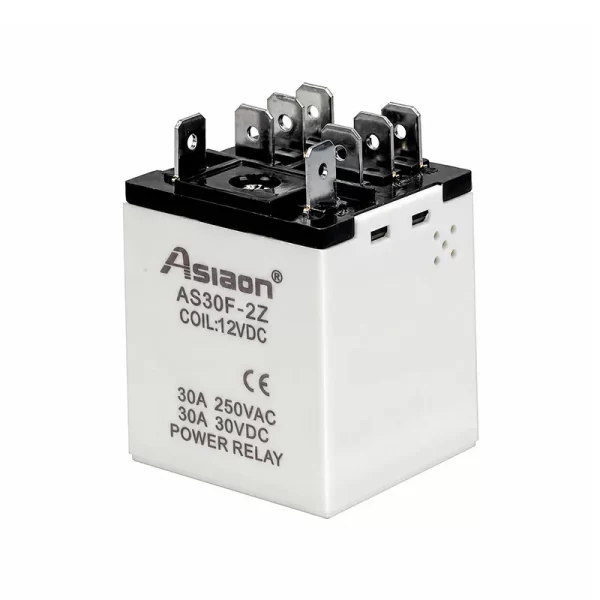

Product Overview
AS30F Power Relay is a relay documented with a 2Z contact form, AgSnO₂ contact material.
Key Features
● With ventilation holes
● Contact form: 2Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: Wire/Quick connection.
● Operating power: 2.5W/2.5VA.
Technical Specifications
| Specifications | ||
| Contact | Contact Form | 2Z |
| Rated Load | 30A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1500VAC/1min | |
| Between contact and coil≥4000VAC/1min | ||
| Operate/Release Time | ≤25ms/25ms | |
| Terminal Type | Wire/Quick connection | |
| Coil | Operating Power DC/AC | 2.5W/2.5VA |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 14 |
| 12 | 9.6 | 1.2 | 58 |
| 24 | 19.2 | 2.4 | 230 |
| 48 | 38.4 | 4.8 | 920 |
| 60 | 48 | 6 | 1440 |
| 110 | 88 | 11 | 4840 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropoff Voltage (VAC) | Coil Resistance (Ω±10%) |
| 12 | 9.6 | 3.6 | 20 |
| 24 | 19.2 | 7.2 | 80 |
| 48 | 38.4 | 14.4 | 320 |
| 110 | 88 | 36 | 1700 |
| 220/240 | 176 | 72 | 6770 |
Technical Data and Drawings

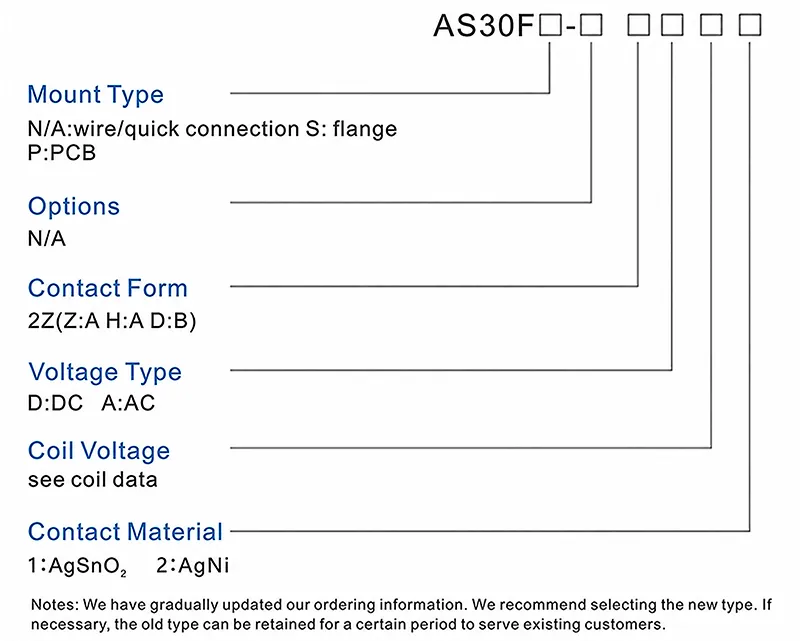

Ordering Information

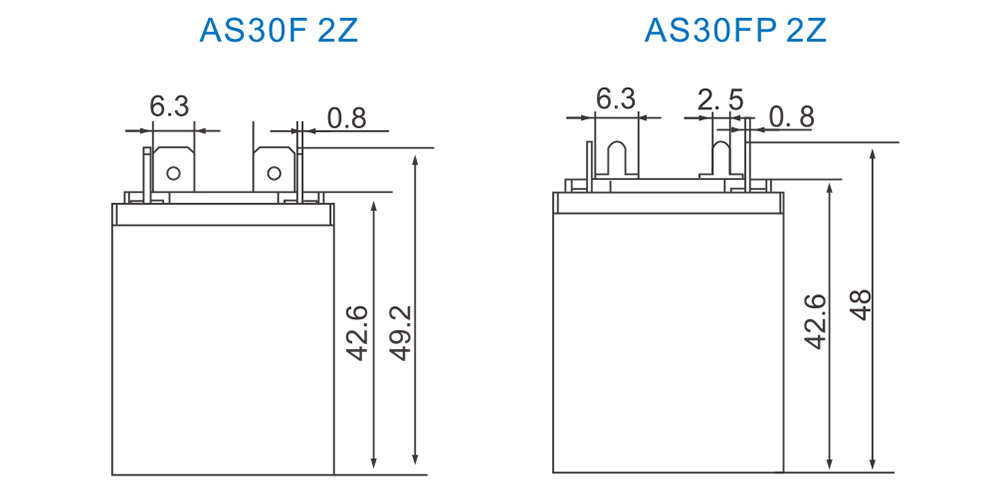

Dimensions (mm)

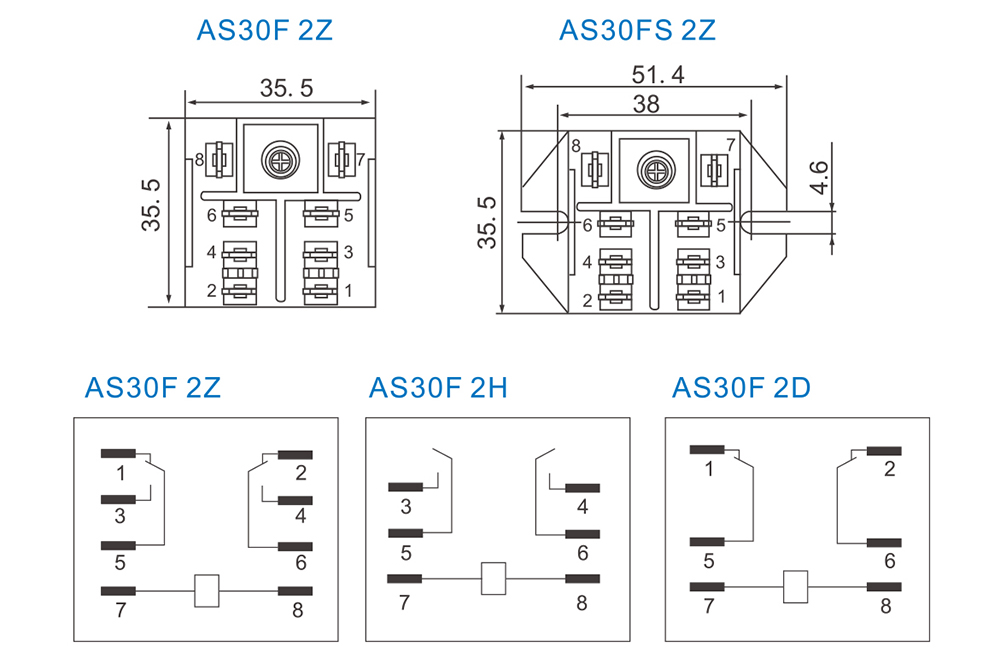

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 2.5W/2.5VA.
