Product Overview

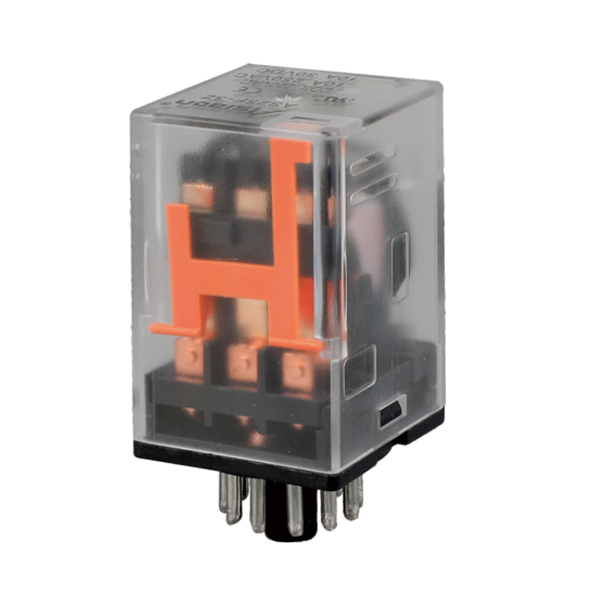

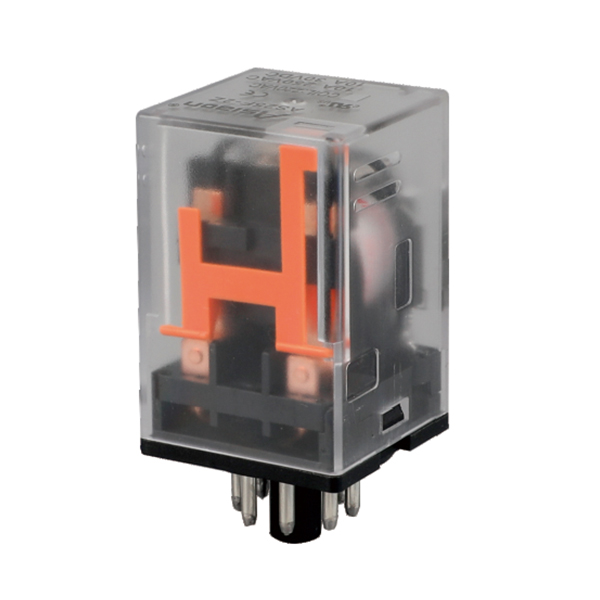

AS25F Industrial Relay is a relay documented with a 2Z contact form, a rated load of NO:10A 250VAC/30VDC, AgSnO₂ AgNi contact material.
Key Features
● With inspection window
● Rated Load 10A
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 2Z | 3Z |
| Rated Load | NO:10A 250VAC/30VDC | ||
| NC:5A 250VAC/30VDC | |||
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ AgNi | ||
| Characteristics | Insulation Resistance | ≥500MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil ≥1500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Plug in | ||
| Coil | Operating Power DC/AC | 1.6W/2.8VA | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropout Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 22.5 |
| 12 | 9.6 | 1.2 | 90 |
| 24 | 19.2 | 2.4 | 360 |
| 48 | 38.4 | 4.8 | 1440 |
| 110 | 88 | 10 | 6250 |
| 110 | 88 | 11 | 7560 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropout Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 4.5 |
| 12 | 9.6 | 3.6 | 18 |
| 24 | 19.2 | 7.2 | 72 |
| 48 | 38.4 | 14.4 | 288 |
| 110/120 | 88 | 33 | 1650 |
| 220/240 | 176 | 66 | 6800 |
Technical Data and Drawings

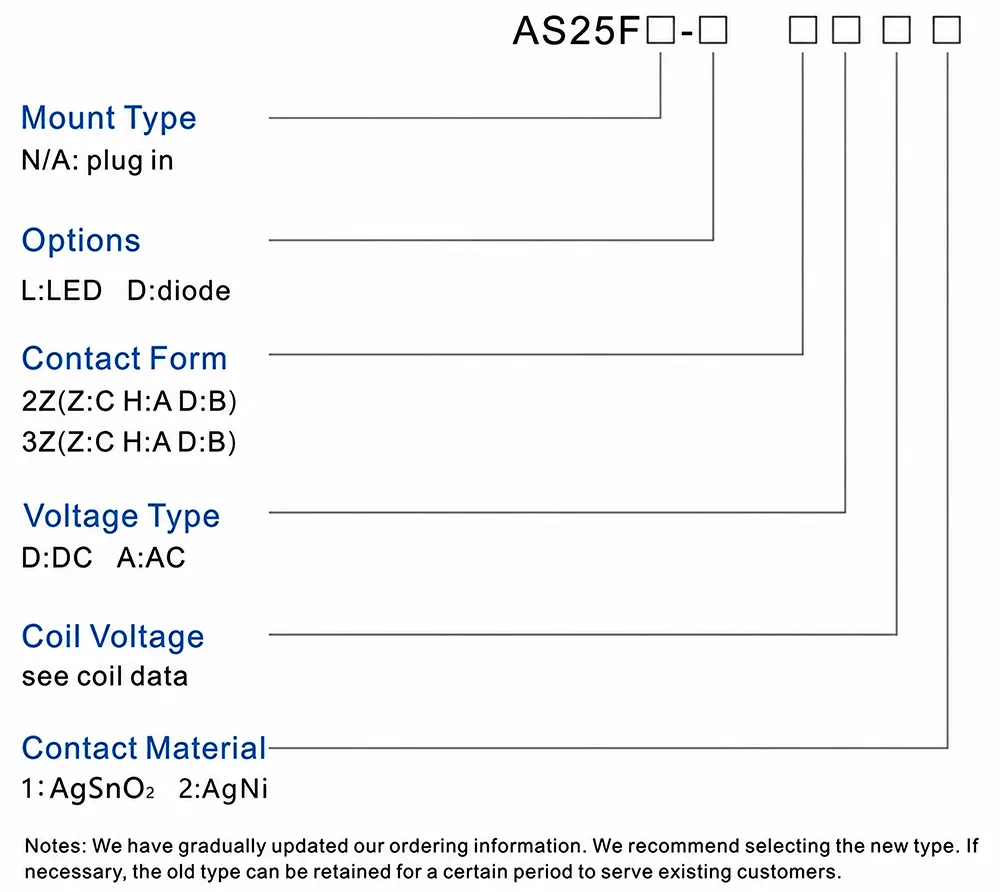

Ordering Information

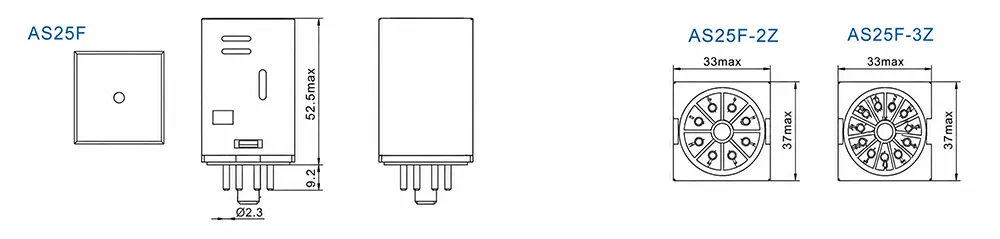

Dimensions (mm)

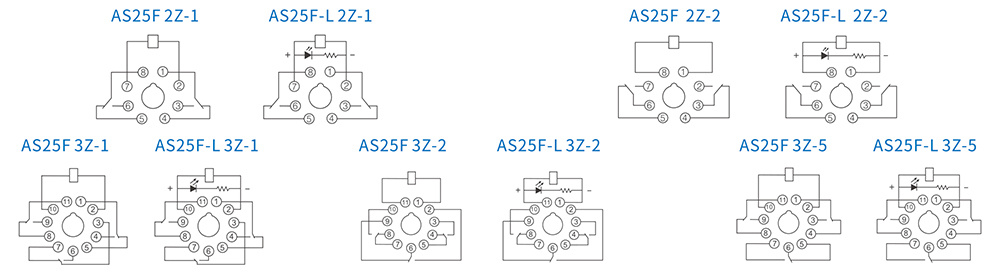

Wiring Diagram
Frequently Asked Questions
What is the contact form?
The documented contact form is 2Z.
What is the rated load?
The documented rated load is NO:10A 250VAC/30VDC.
What contact material is specified?
The specified contact material is AgSnO₂ AgNi.
What insulation resistance is specified?
The specified insulation resistance is ≥500MΩ (500VDC).
What operating power is listed?
The listed operating power is 1.6W/2.8VA.
