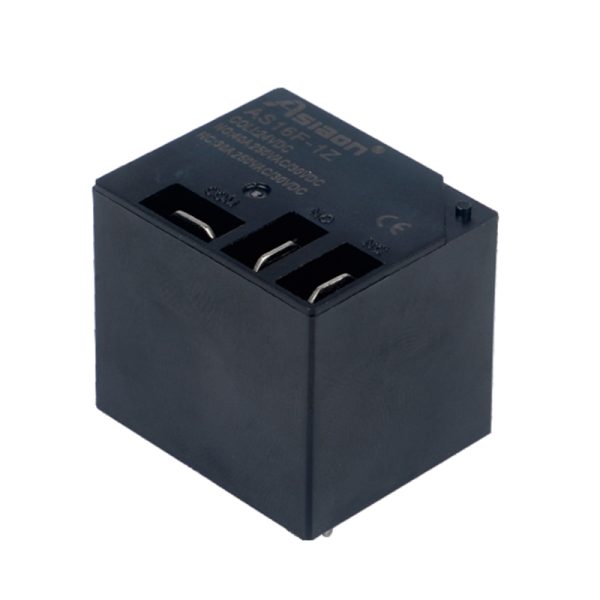

Product Overview
AS16F PCB Relay is a PCB-mounted relay with a 1Z contact form, AgSnO₂ contact material, and PCB plus quick-connection terminals. The relay is available in plastic-sealed and dust-proof types.
Features
● Rated load 40A
● 2.5kVdielectric strength (between coil and contacts)
● Insulation level:Class F
● Plastic sealed and dust proof types available
Key Specifications
| Specifications | ||
| Contact | Contact Form | 1Z |
| Rated Load (Resistive property) | NO:30A 250VAC/30VDC NC:20A 250VAC/30VDC NO:40A 250VAC/30VDC NC:30A 250VAC/30VDC |
|
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1500VAC/1min | |
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤15ms/10ms | |
| Terminal Type | PCB& Quick Connection | |
| Coil | Operating Power DC | 0.9W |
DC Coil Data
| Rated voltage | Pickup voltage | Dropoff voltage | Coil resistance ±10% |
|---|---|---|---|
| 5VDC | 3.75VDC | 0.5VDC | 30Ω |
| 6VDC | 4.5VDC | 0.6VDC | 45Ω |
| 9VDC | 6.75VDC | 0.9VDC | 100Ω |
| 12VDC | 9VDC | 1.2VDC | 160Ω |
| 15VDC | 11.25VDC | 1.5VDC | 260Ω |
| 18VDC | 13.5VDC | 1.8VDC | 385Ω |
| 24VDC | 18VDC | 2.4VDC | 660Ω |
| 48VDC | 36VDC | 4.8VDC | 2560Ω |
| 70VDC | 52.5VDC | 7VDC | 5500Ω |
| 110VDC | 82.5VDC | 11VDC | 13450Ω |
Technical Data and Drawings

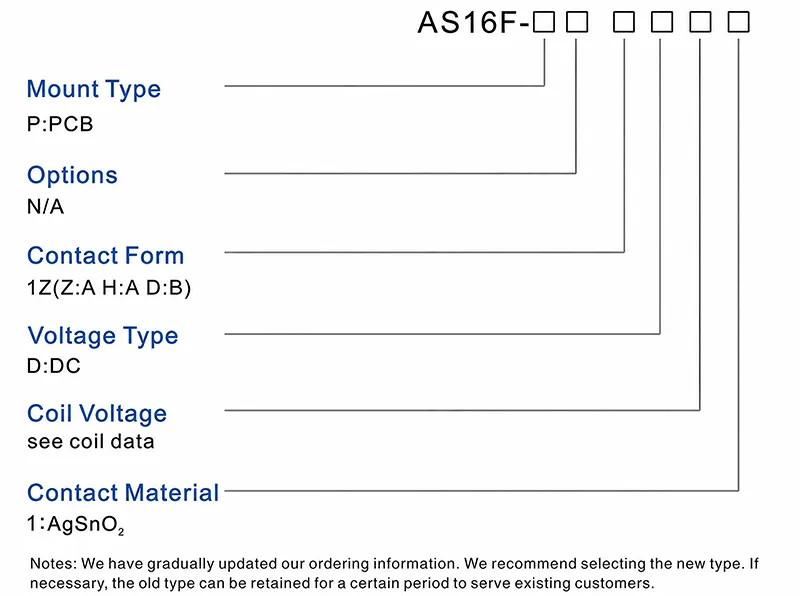

Ordering Information

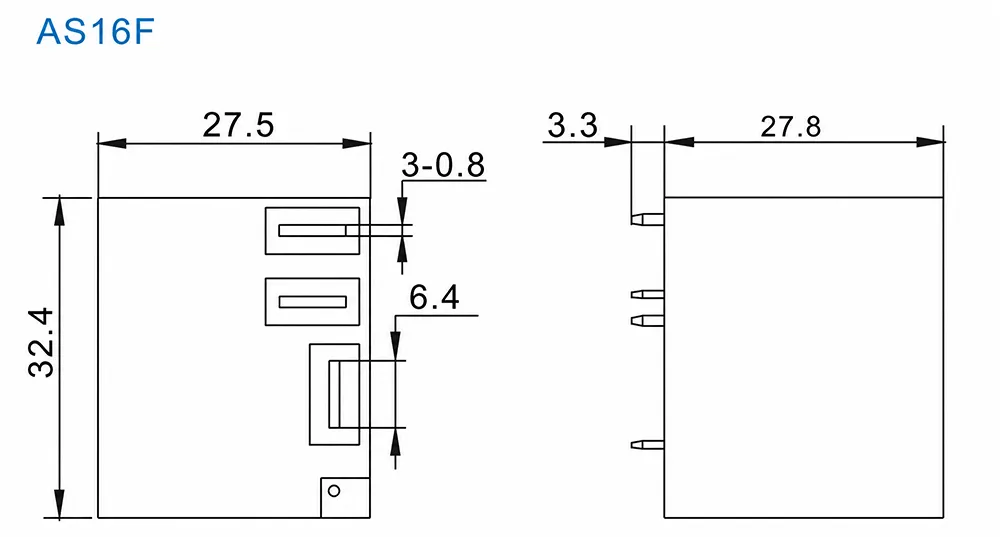

Dimensions (mm)

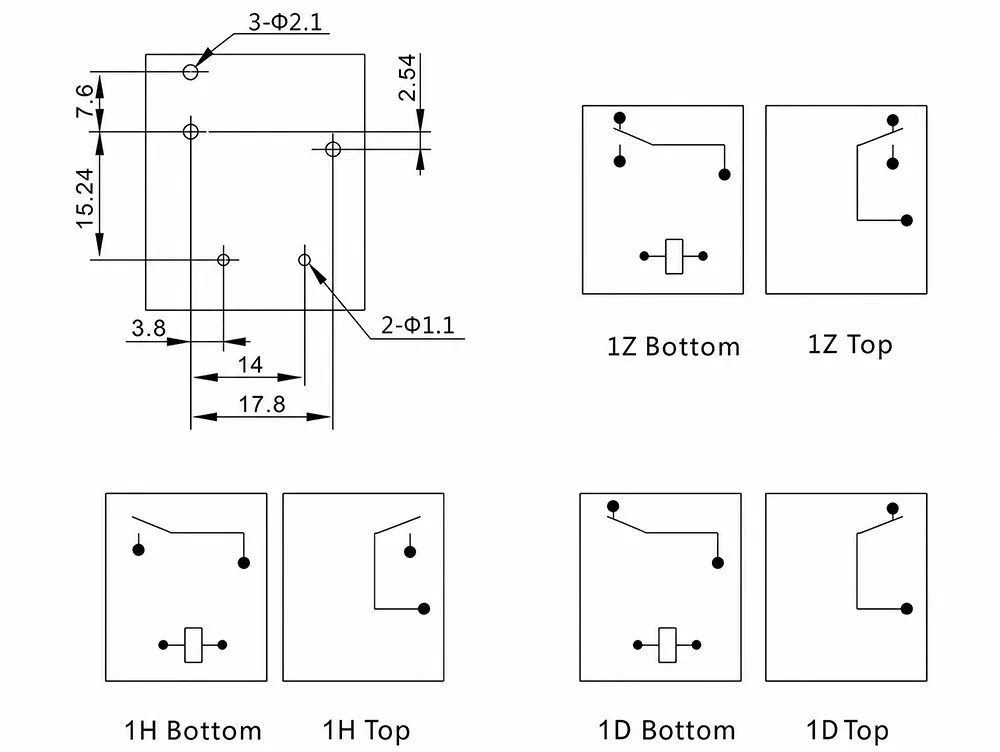

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What terminal type is used?
AS16F uses PCB and quick-connection terminals.
What is the operating power?
The DC operating power is 0.9W.
