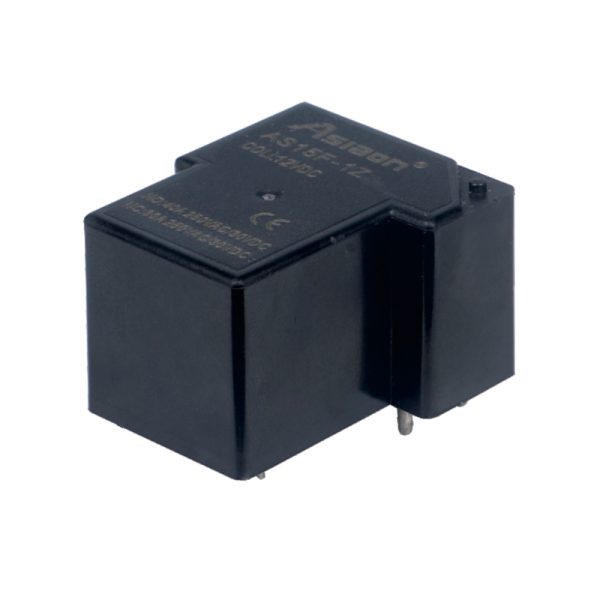

Product Overview
AS15F PCB Relay is a relay documented with a 1Z contact form, AgSnO₂ contact material.
Key Features
● Rated Load40A
● 4kV dielectric strength (between coil and contacts)
● Insulation level: Class F
● Contact form: 1Z.
● Contact material: AgSnO₂.
● Terminal or connection specification: PCB.
Technical Specifications
| Specifications | ||
| Contact | Contact Form | 1Z |
| Rated Load (Resistive property) | NO:30A 250VAC/30VDC NC:20A 250VAC/30VDC NO:40A 250VAC/30VDC NC:30A 250VAC/30VDC |
|
| Electrical/Mechanical Life | ≥100000times/1000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1500VAC/1min | |
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤15ms/10ms | |
| Terminal Type | PCB | |
| Coil | Operating Power DC | 0.9W |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropoff Voltage (VDC) | Coil Resistance (Ω±10%) |
| 5 | 3.75 | 0.5 | 30 |
| 6 | 4.5 | 0.6 | 45 |
| 9 | 6.75 | 0.9 | 100 |
| 12 | 9 | 1.2 | 160 |
| 15 | 11.25 | 1.5 | 260 |
| 18 | 13.5 | 1.8 | 385 |
| 24 | 18 | 2.4 | 660 |
| 48 | 36 | 4.8 | 2560 |
| 70 | 52.5 | 7 | 5500 |
| 110 | 82.5 | 11 | 13450 |
Technical Data and Drawings

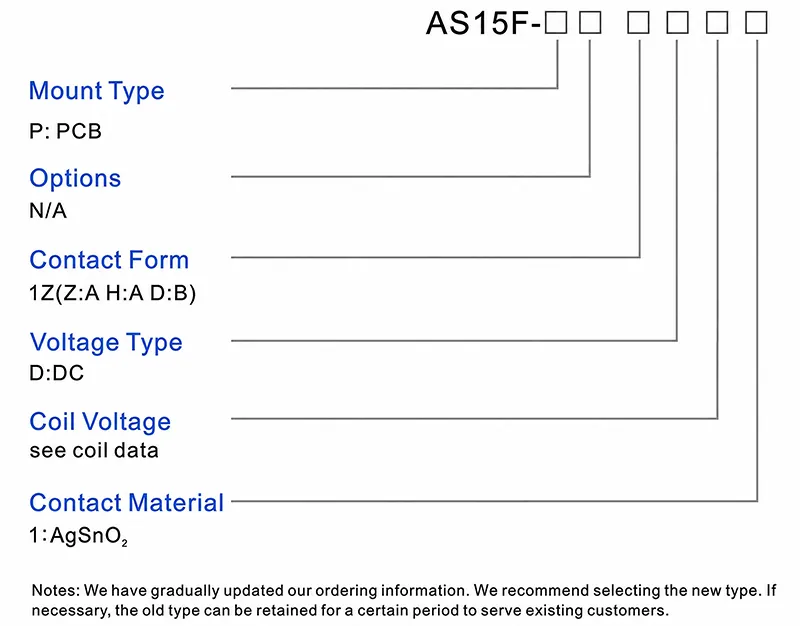

Ordering Information

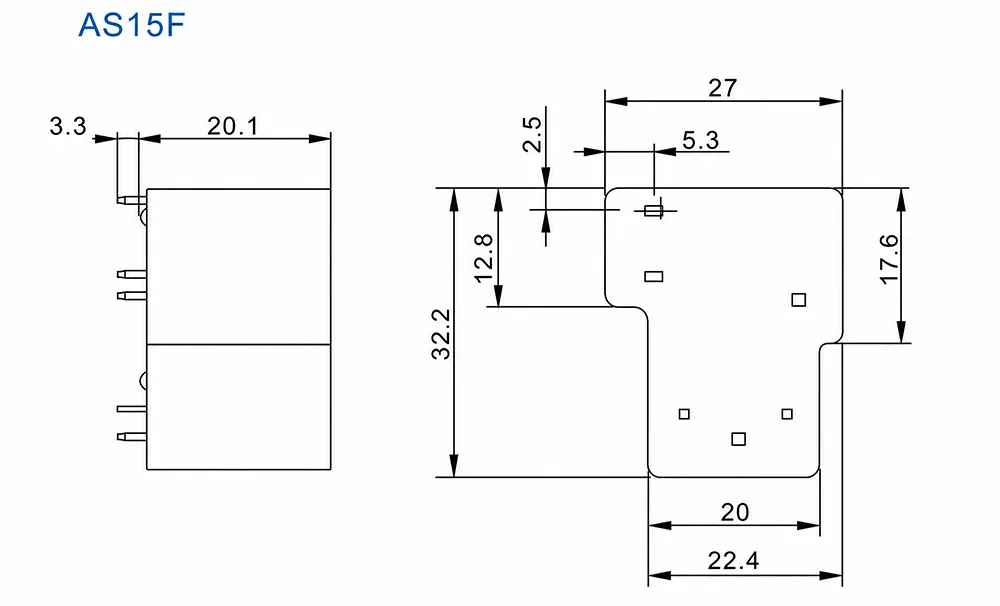

Dimensions (mm)

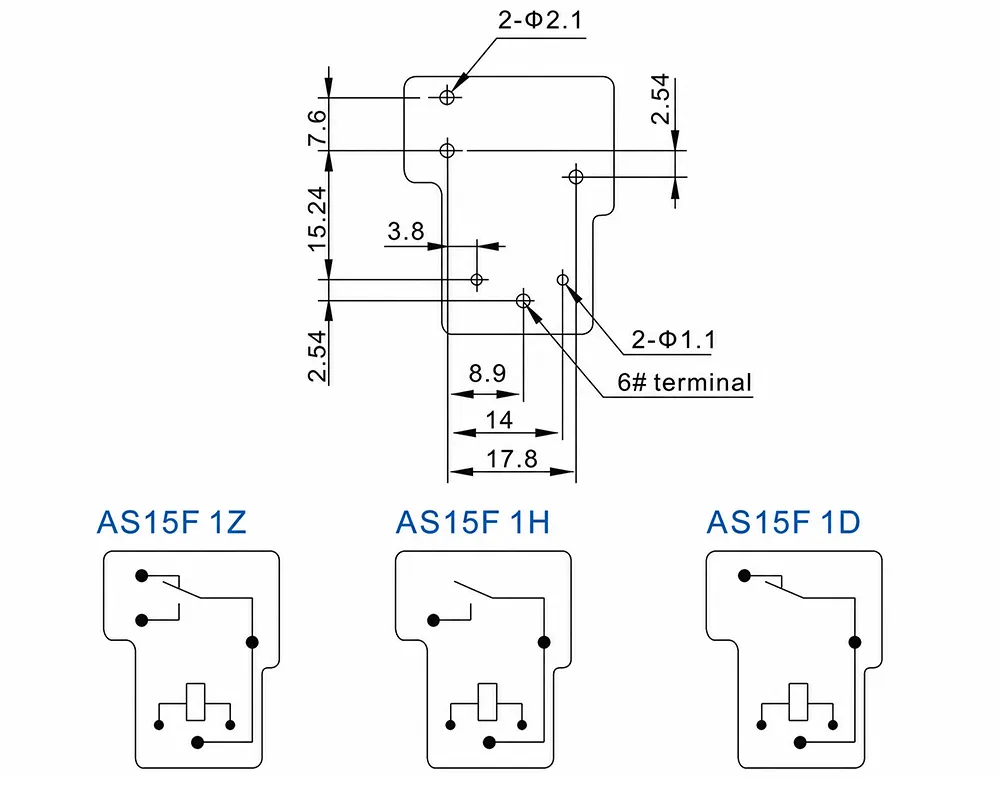

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂.
What insulation resistance is specified?
The specified insulation resistance is ≥1000MΩ (500VDC).
What dielectric or withstand voltage is specified?
The specified value is Between open contacts≥1500VAC/1min.
What operate and release time is listed?
The listed operate/release time is ≤15ms/10ms.
