Product Overview

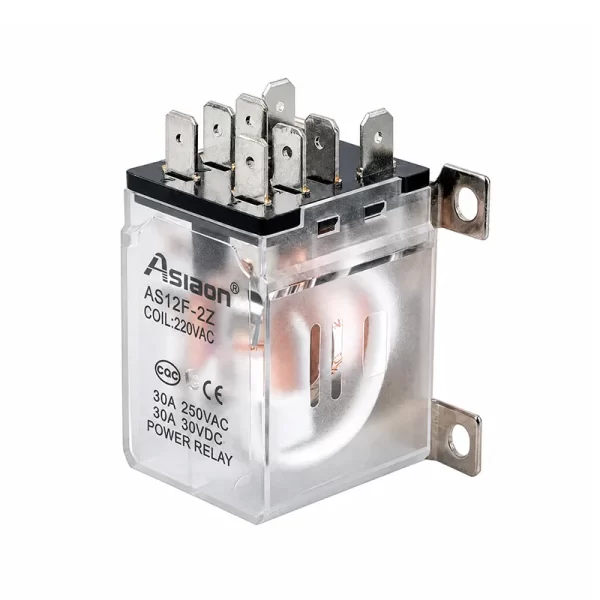

AS12F Power Relay (IM 2Z) is an industrial power relay with a 2Z contact form, a 30A 250VAC/30VDC rated load, and wire or quick connection terminals. The IM configuration is shown with a metal plate mount and is designed for switching and control circuits in industrial equipment, automation equipment, instrumentation, regulated power supplies, electronic equipment, and household electrical appliances.
Asiaon Electric supplies this AS12F relay configuration for engineers, equipment manufacturers, automation integrators, and relay distributors selecting a double-pole 2Z contact arrangement.
Key Specifications
| Specifications | ||
| Contact | Contact Form | 2Z |
| Rated Load | 30A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ | |
| Characteristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤25ms/25ms | |
| Terminal Type | screw connection | |
| Coil | Operating Power DC/AC | 2.5W/4VA |
Coil Voltage Data
DC Coil
| Rated voltage | Pickup voltage | Dropout voltage | Coil resistance ±10% |
|---|---|---|---|
| 6VDC | 4.8VDC | 0.6VDC | 14.4Ω |
| 12VDC | 9.6VDC | 1.2VDC | 57.6Ω |
| 24VDC | 19.2VDC | 2.4VDC | 230Ω |
| 48VDC | 38.4VDC | 4.8VDC | 920Ω |
| 60VDC | 48.0VDC | 6.0VDC | 1440Ω |
AC Coil
| Rated voltage | Pickup voltage | Dropout voltage | Coil resistance ±10% |
|---|---|---|---|
| 12VAC | 9.6VAC | 3.6VAC | 12.6Ω |
| 24VAC | 19.2VAC | 7.2VAC | 50.4Ω |
| 48VAC | 38.4VAC | 14.4VAC | 200Ω |
| 110VAC | 88.0VAC | 36.0VAC | 1060Ω |
| 220/240VAC | 176.0VAC | 72.0VAC | 4230Ω |
Ordering Information

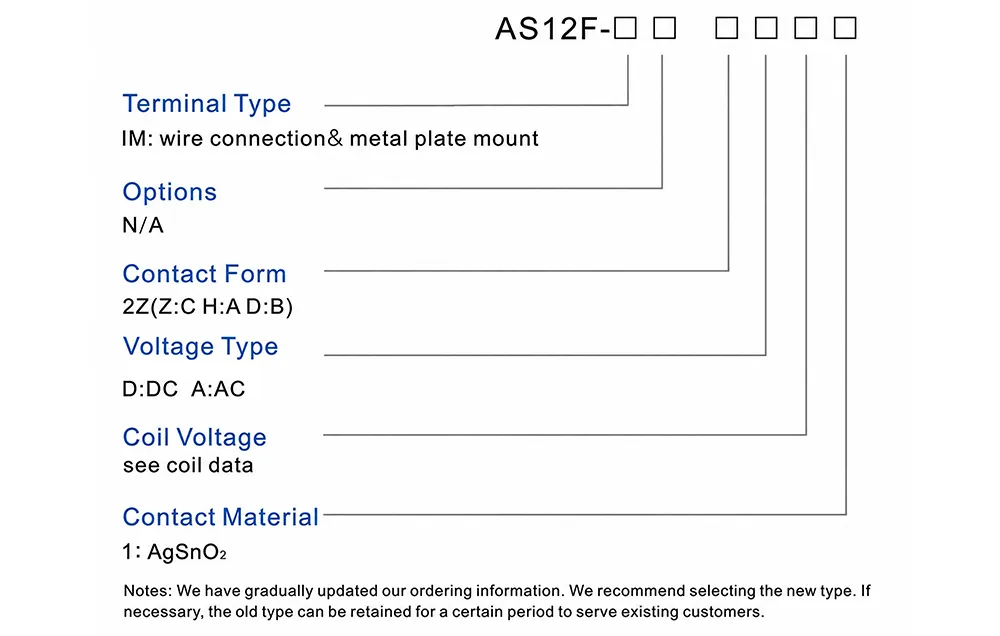

The ordering diagram identifies the AS12F code fields for terminal type, options, contact form, voltage type, coil voltage, and contact material. For this IM configuration, the documented selection is metal plate mount with wire or quick connection and 2Z contact form. Coil voltage options are listed in the DC and AC tables above.
Quality Control
Asiaon Electric describes a manufacturing quality process that includes incoming inspection, process control, online inspection, and final quality inspection, supported by MES, SPC, and WMS. Product selection should be checked against the rated load, coil voltage, contact arrangement, terminal type, and wiring diagram before integration.
Technical Data and Drawings
Ordering Information

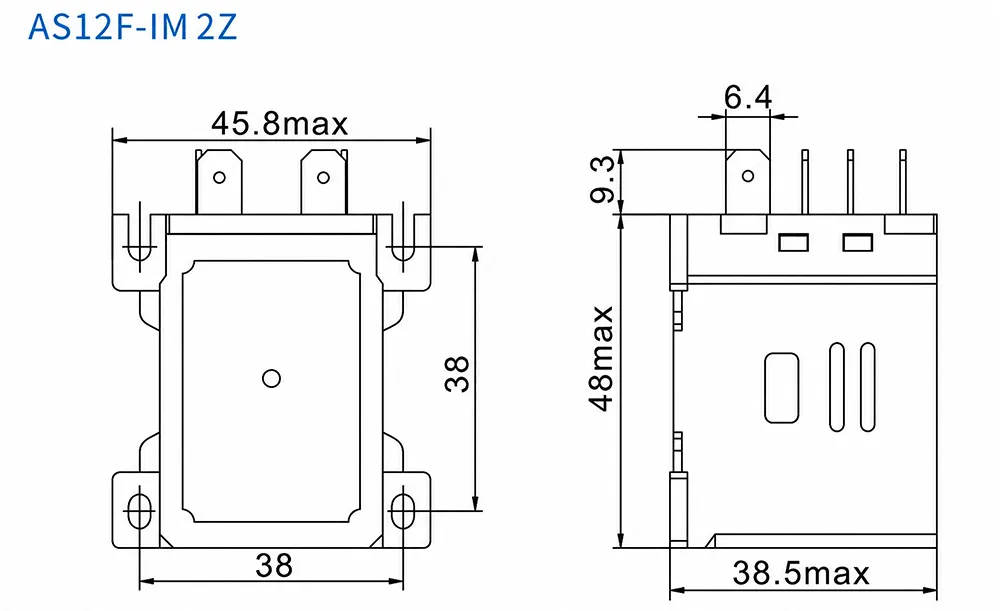

Dimensions (mm)
Wiring diagram
Frequently Asked Questions
What rated load does the IM 2Z relay support?
The rated load is 30A at 250VAC or 30VDC.
What contact material is used?
The contact material is AgSnO₂.
What terminal type does the IM configuration use?
The IM configuration uses wire or quick connection terminals.

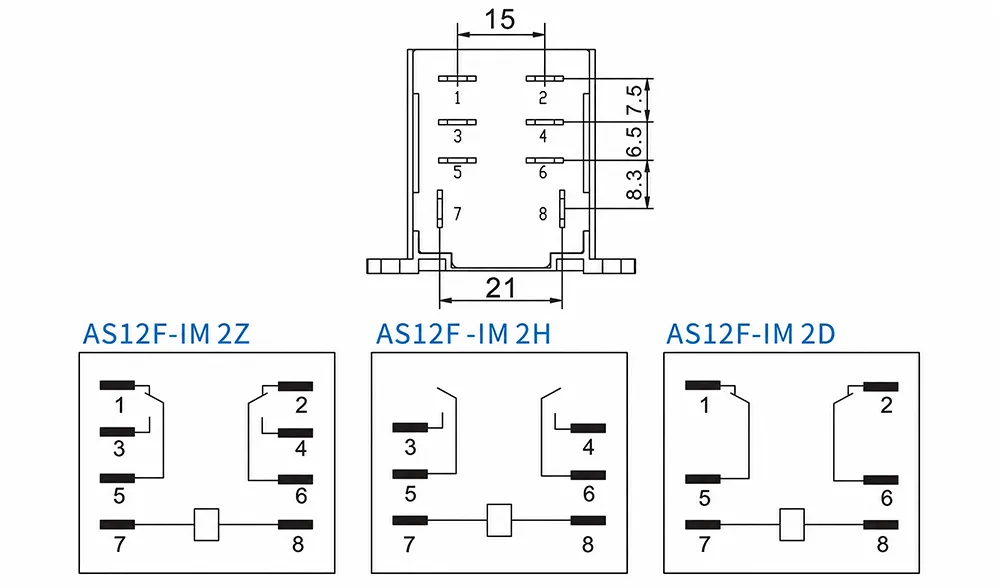

Where can the wiring arrangement be checked?
The IM 2Z wiring diagram is retained in the technical drawings section.
