Product Overview

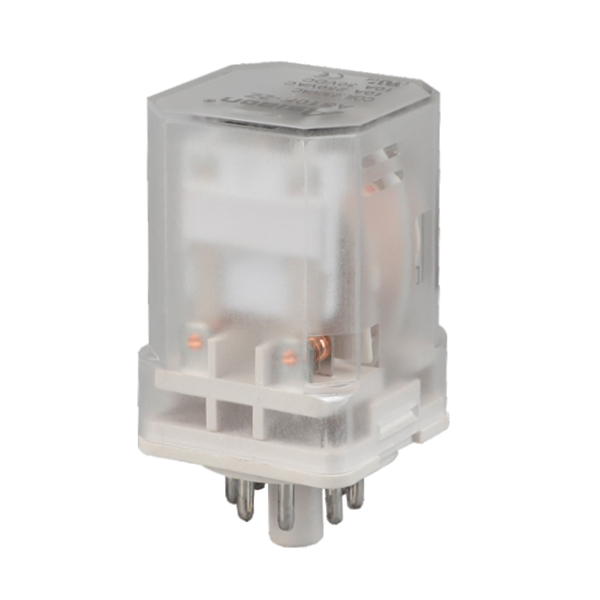

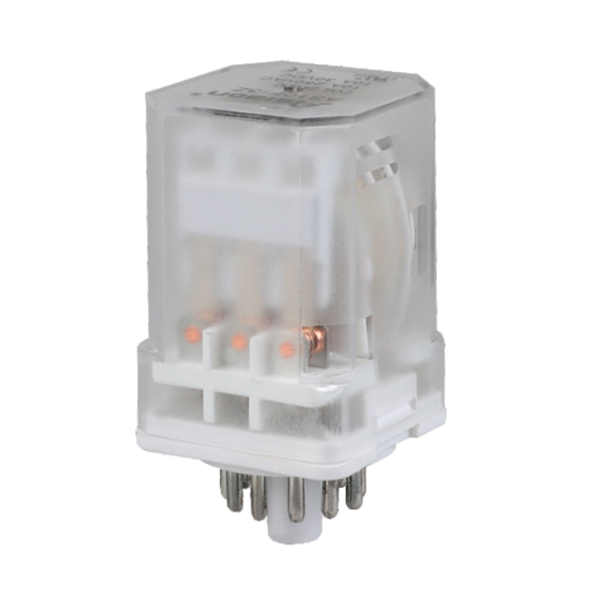

AS10F Industrial Relay is a relay documented with a 2Z contact form, a rated load of NO:10A 250VAC/30VDC, AgSnO₂ AgNi contact material.
Key Features
● Rated Load 10A
● Contact form: 2Z.
● Rated load: NO:10A 250VAC/30VDC.
● Contact material: AgSnO₂ AgNi.
● Terminal or connection specification: Plug in.
● Operating power: 1.6W/2.8VA.
Technical Specifications
| Specifications | |||
| Contact | Contact Form | 2Z | 3Z |
| Rated Load | NO:10A 250VAC/30VDC | ||
| NC:5A 250VAC/30VDC | |||
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100mΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ AgNi | ||
| Characteristics | Insulation Resistance | ≥500MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil ≥1500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Plug in | ||
| Coil | Operating Power DC/AC | 1.6W/2.8VA | |
DC Coil Data
| Rated Voltage (VDC) | Pickup Voltage (VDC) | Dropout Voltage (VDC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 0.6 | 22.5 |
| 12 | 9.6 | 1.2 | 90 |
| 24 | 19.2 | 2.4 | 360 |
| 48 | 38.4 | 4.8 | 1440 |
| 110 | 88 | 10 | 6250 |
| 110 | 88 | 11 | 7560 |
AC Coil Data
| Rated Voltage (VAC) | Pickup Voltage (VAC) | Dropout Voltage (VAC) | Coil Resistance (Ω±10%) |
| 6 | 4.8 | 1.8 | 4.5 |
| 12 | 9.6 | 3.6 | 18 |
| 24 | 19.2 | 7.2 | 72 |
| 48 | 38.4 | 14.4 | 288 |
| 110/120 | 88 | 33 | 1650 |
| 220/240 | 176 | 66 | 6800 |
Technical Data and Drawings

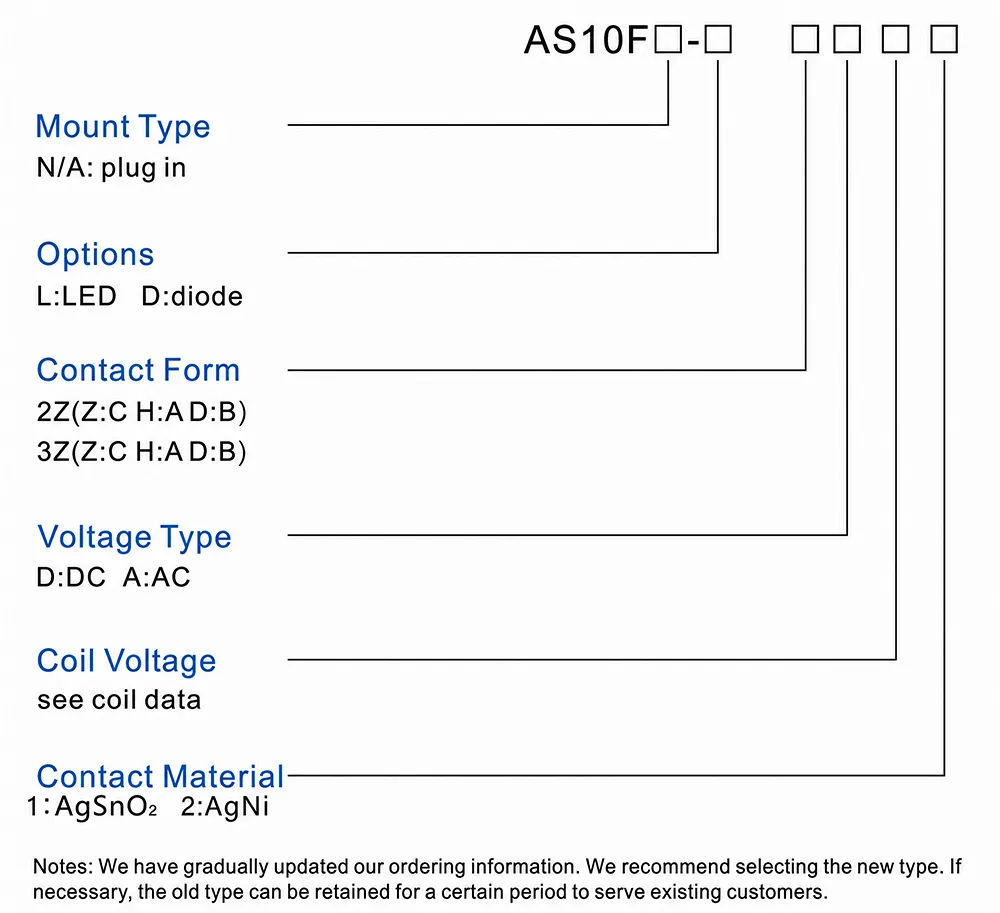

Ordering Information

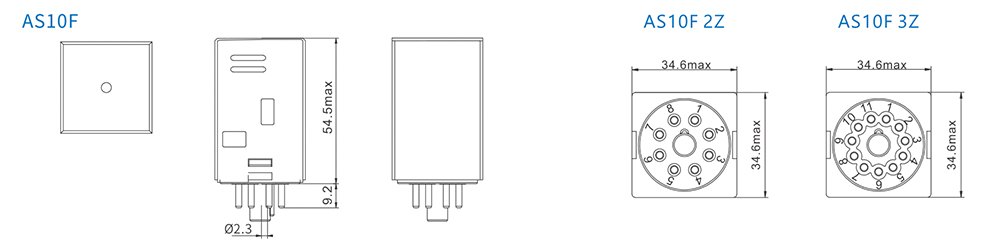

Dimensions (mm)

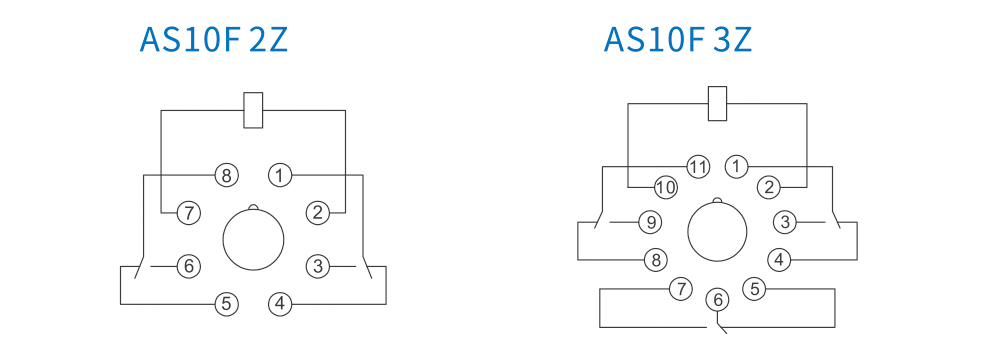

Wiring Diagram
Frequently Asked Questions
What contact material is specified?
The specified contact material is AgSnO₂ AgNi.
What insulation resistance is specified?
The specified insulation resistance is ≥500MΩ (500VDC).
What operate and release time is listed?
The listed operate/release time is ≤25ms/25ms.
What operating power is listed?
The listed operating power is 1.6W/2.8VA.
